A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0...

A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0 V. The wipers are triggered when the voltage across the 130 µF capacitor reaches 10.0 V; then the capacitor is quickly discharged (through a much smaller resistor) and the cycle repeats. What resistance should be used in the charging circuit if the wipers are to operate once every 1.40 s?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

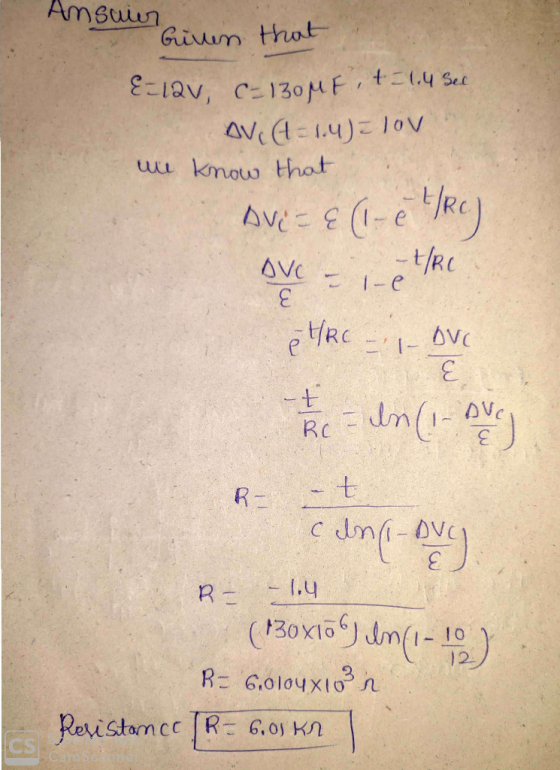

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0...

    A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0 V. The wipers are triggered when the voltage across the 110 µF capacitor reaches 10.0 V; then the capacitor is quickly discharged (through a much smaller resistor) and the cycle repeats. What resistance should be used in the charging circuit if the wipers are to operate once every 1.40 s? Answer in kΩ please. I need it ASAP. Thank you :)

  • A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0...

    A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0 V. The wipers are triggered when the voltage across the 120 µF capacitor reaches 10.0 V; then the capacitor is quickly discharged (through a much smaller resistor) and the cycle repeats. What resistance should be used in the charging circuit if the wipers are to operate once every 1.60 s?

  • A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0...

    A charging RC circuit controls the intermittent windshield wipers in a car. The emf is 12.0 V. The wipers are triggered when the voltage across the 110 µF capacitor reaches 10.0 V; then the capacitor is quickly discharged (through a much smaller resistor) and the cycle repeats. What resistance should be used in the charging circuit if the wipers are to operate once every 1.50 s?

  • 5,6,8 plz will rate :) In the RC circuit, the emf & - 12.0 V, resistance...

    5,6,8 plz will rate :) In the RC circuit, the emf & - 12.0 V, resistance R -1.40 M.2, and capacitance C=1.80 uF. 5. What is the current in the circuit the instant the switch is closed? 6. What is the initial charge on the capacitor? 7. What is the time constant for the RC circuit? 8. How much charge is on the capacitor after on time constant?

  • For a charging capacitor in an RC circuit with R = 100 kΩ and C =...

    For a charging capacitor in an RC circuit with R = 100 kΩ and C = 1 µF, and in series with a battery with emf E = 12 V, (a) how long does it take for the capacitor to charge up to 80% of its final charge? (b) What is the current in the circuit at that point in time?

  • In an RC series circuit, emf E = 12.0 V, resistance R = 1.57 MS2, and...

    In an RC series circuit, emf E = 12.0 V, resistance R = 1.57 MS2, and capacitance C = 1.84 uF. Calculate the time constant. 2.89 s You are correct. Previous Tries Your receipt no. is 157-6375 Find the maximum charge that will appear on the capacitor during charging. 2.21x10-5 c You are correct. Your receipt no. is 157-63 ) 52.62 Previous Tries How long does it take for the charge to build up to 16.9 PC? 3.75s Submit Answer...

  • In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C =...

    In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C = 2.13 µF. (a) Calculate the time constant. (b) Find the maximum charge that will appear on the capacitor during charging. (c) How long does it take for the charge to build up to 17.7 µC?

  • RC Circuits If you have an RC circuit with a resistance of 200 ohms and a...

    RC Circuits If you have an RC circuit with a resistance of 200 ohms and a capacitance of 35 microfarads, what is the time constant? Time Constant= ? s This time constant represents how much time it will take to reach 63% of maximum. If the RC circuit is connected to an EMF of 12.0 V, what will be its voltage after 5.0 ms? Voltage after 5.0 ms= ? V Draw what the voltage looks like in a charging RC...

  • The RC charging circuit in a camera flash unit has a voltage source of 295 V...

    The RC charging circuit in a camera flash unit has a voltage source of 295 V and a capacitance of 116 µF. (a) Find its resistance R (in ohms) if the capacitor charges to 90.0% of its final value in 12.2 s. Ω (b) Find the average current (in A) delivered to the flash bulb if the capacitor discharges 90.0% of its full charge in 1.04 ms. A

  • 5,6,8 plz will rate :) Use the RC circuit below to answer the following questions. class-0...

    5,6,8 plz will rate :) Use the RC circuit below to answer the following questions. class-0 In the RC circuit, the emf 8 = 12.0 V, resistance R=1.40 MS2, and capacitance C=1.80 uF. 5. What is the current in the circuit the instant the switch is closed? 6. What is the initial charge on the capacitor? 7. What is the time constant for the RC circuit? 8. How much charge is on the capacitor after on time constant?
