1) In general, resistor's resistance depends (slightly) on the temperature of the resistor, with the relationship...
1)
In general, resistor's resistance depends (slightly) on the temperature of the resistor, with the relationship depending on the details of the material. Do you expect the temperature of a resistor to increase or decrease as you run more current through it? Based on this relationship and your results from Part IV, how does the light bulb's resistance depend on temperature?
2)Where can you apply a diode? Give one example of where it can be used?

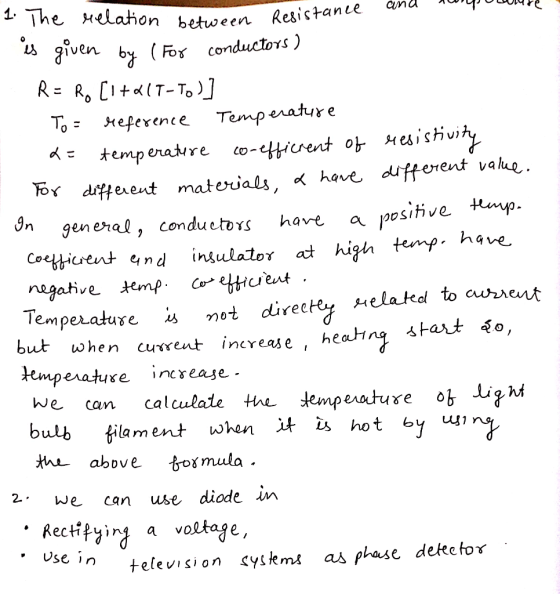

Homework Answers
