for light striking a pane of glass (n=1.5) at an incident angle of 30 degrees, when...

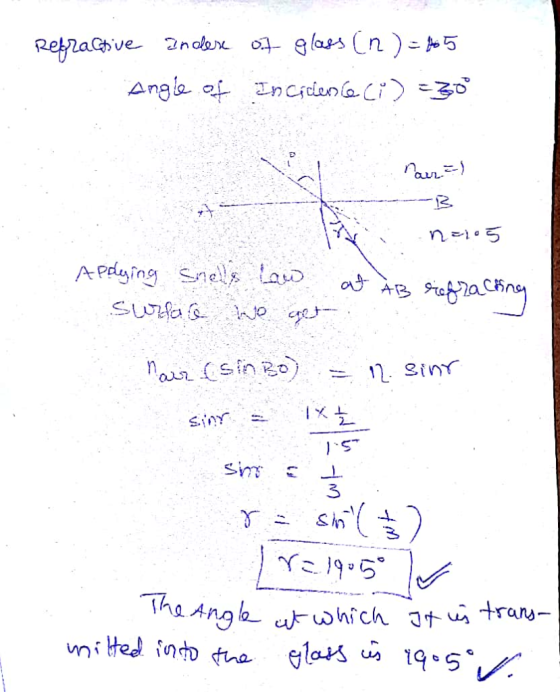

for light striking a pane of glass (n=1.5) at an incident angle of 30 degrees, when it refracts into the glass at a refracted angle theta, and then exits the glass, what is the angle at which it is transmitted
Homework Answers
Add Answer to:
for light striking a pane of glass (n=1.5) at an incident angle
of 30 degrees, when...
A light ray is incident on a glass cylinder (n = 1.5) of radius R, at...
A light ray is incident on a glass cylinder (n = 1.5) of radius R, at a height R/2 above an optical axis that goes through the center of the cylinder. a. What is the angle of incidence of the light ray on the glass cylinder in degrees (~30)? b. What is the transmitted angle of the ray into the glass in degrees (~19)? c. Through what angle does the ray bend in degrees? No figure was given.
Light is incident on a piece of glass in air at an angle of 44 degrees...
Light is incident on a piece of glass in air at an angle of 44 degrees from the normal. If the index of refraction of the glass is 1.5, what is the angle in degrees that the refracted ray makes with the normal? ______ Round your answer to 1 decimal place.
If light is moving from water (n=1.33) to glass (1.5) at an angle of 25 degrees,...
If light is moving from water (n=1.33) to glass (1.5) at an angle of 25 degrees, what is the refracted angle? Is it possible to have a critical angle? If so what is it? If not explain.
A ray of light travels from air into glass ( n glass =1.33 ). The incident...
A ray of light travels from air into glass ( n glass =1.33 ). The incident angle ( θi ) is 23 ∘ . Hints: n i sin( θ i )= n r sin( θ r ) nisin(θi)=nrsin(θr) If θ i = θ critical θi=θcritical then θ r = 90 ∘ θr=90∘ n air =1.00 nair=1.00 What is the refracted angle inside the glass in degrees? θ r θr = ∘ If the light ray instead travels from the glass...
1.)What is the critical angle for a ray of light traveling from glass (n=1.5) to water...
1.)What is the critical angle for a ray of light traveling from glass (n=1.5) to water (n=1.33)? Show all calculations in your answer. 2.)What is the relationship between the incident angle at the top of the block and the refracted angle at the bottom of the block? Explain using Snell’s law
Light travels from glass to air; the index of refraction for glass is 1.5. If the...
Light travels from glass to air; the index of refraction for glass is 1.5. If the incident angle is 60°, what is the refracted angle? A. 42° B. 35° C. 38° D. 30° E. The light reflects back into the glass
When unpolarised light is incident on a glass plate at a particular angle, it is observed...
When unpolarised light is incident on a glass plate at a particular angle, it is observed that the reflected beam is linearly polarised. what is the angle of the refracted beam with respect to the normal? Refractive index of glass is 1.52 Please explain in detail and write all relevant formulas. Thank you.
Light is incident inside glass of n = 1.654 out into air. Find the angle of...
Light is incident inside glass of n = 1.654 out into air. Find the angle of refraction or what else happens for angle of incidence of 30 degrees and 60 degrees. Find the critical angle. Draw the exact diagram of each.
Two light rays are incident at 30 degrees and 60 degrees from air onto glass of...
Two light rays are incident at 30 degrees and 60 degrees from air onto glass of n = 1.654. Find the angle of refraction for each. Draw the exact diagram of each.
A beam of monochromatic light is incident from glass (n_g = 1.5) onto the air (n_a...
A beam of monochromatic light is incident from glass (n_g = 1.5) onto the air (n_a = 1). The optical beam impinges the air surface at an oblique angle of 30 degree with respect to the horizontal of the air glass surface as shown in the figure. What happens for the incident wave if the angle of incidence (theta) is_|a) 60, b) 25 (Support your answer with explanation):
A beam of monochromatic light is incident from glass (n_g = 1.5) onto the air (n_a = 1). The optical beam impinges the air surface at an oblique angle of 30 degree with respect to the horizontal of the air glass surface as shown in the figure. What happens for the incident wave if the angle of incidence (theta) is_|a) 60, b) 25 (Support your answer with explanation):
