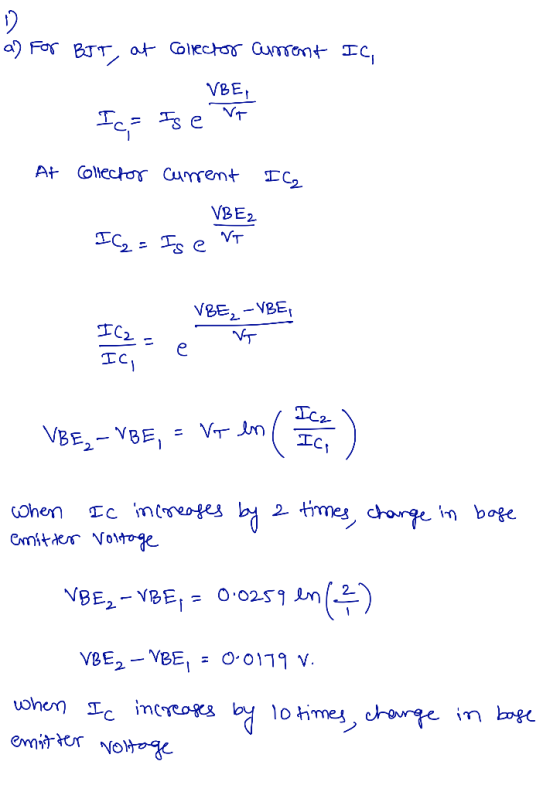

1. a) Calculate the change in base emitter voltage if the
collector current increase by 2 and by
10.

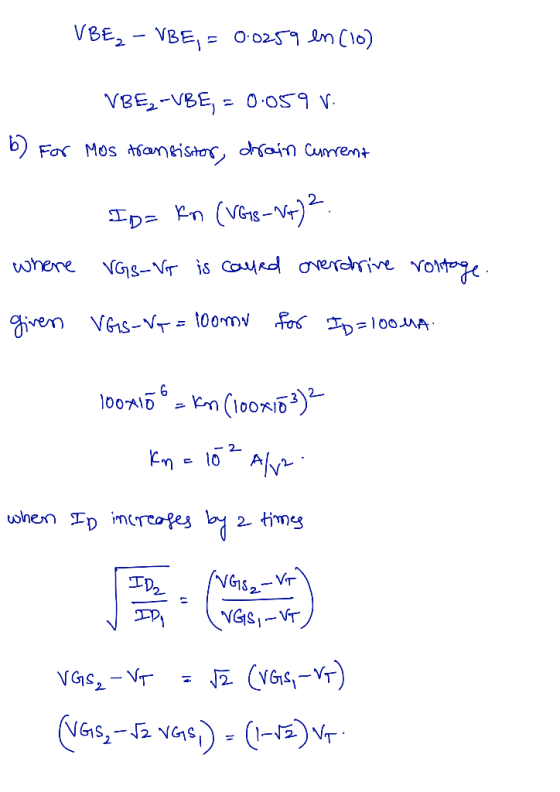

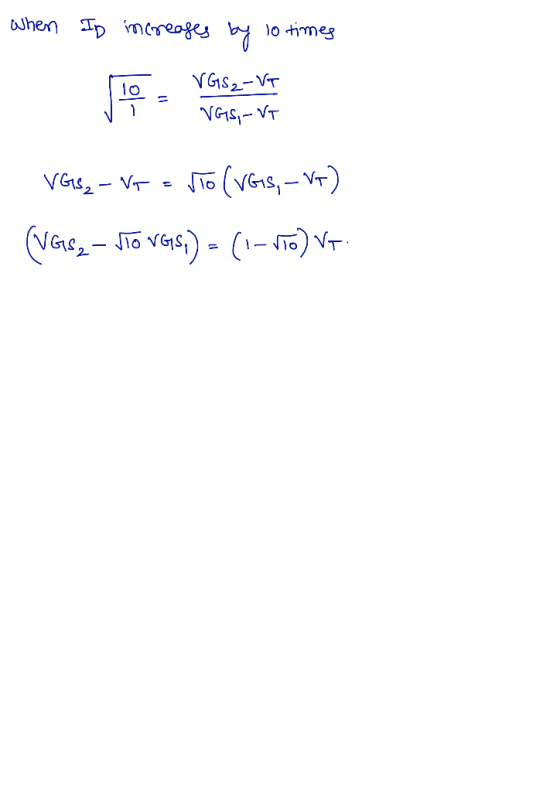

b) A MOS transistor require a gate source overdrive voltage of
100mV for 100uA drain
current. Calculate the change in gate to source voltage if the
drain current increases by
2 and by 10. Compare it to problem a) and comment the results.
1. a) Calculate the change in base emitter voltage if the collector current increase by 2...
1) Plot base current of a npn transistor versus base-emitter voltage 2) Plot Gate current of a MOSFET transistor versus gate-source voltage
(TCO 2) Which is true for the BJT? Group of answer choices a. Emitter current equals Collector current b. Drain current equals Source current, and Gate current is zero c. Emitter current equals to Base 1 current plus Base 2 current d. Gate current plus Emitter current is equal to Drain current e. Emitter current equals Collector current plus Base current
Consider an NMOS transistor with the gate connected to a voltage source, its source connected to ground, bulk also connected to ground and the drain connected a variable voltage source. The NMOS transistor properties are k’ = 0.2mA/V2, ?= 0.025 V-1, W= 16?? and L = 1?? , Vto= 0.8V and gate oxide thickness of tox = 100Å. Assuming the transistor in saturation region and ignoring any Early effects, calculate the gate current, the gate source voltage and the gate...
1.what is the relation between emitter current and collector current in the transistor. 2. what is the relation between emitter ,collector and base current in th transistor ??
Q.11. Calculate the base, collector and emitter currents for the circuit given in Fig. 01. Also, determine the value of the voltage drop between collecter and emitter (Ve). Assume that the transistor is in active region and the value current amplification factor is 200. Given that the base-emitter voltage V is 0.7 V. Vcc - 10V 21 Ves = 4V W 220 KS2 Fig. Q11
HELP with finding 8 and 9
2. IC temperature sensor The emitter-base voltage VEB of a PNP bipolar junction transistor (BJT) with its base and collector shorted (figure 1(a)) can be expressed by VEB (kT/q) In(Ic/Is), in which Is is the saturation current of the emitter-base junction (a) (3 pts) Choose any statement below that correctly describe the effect of temperature on the property of the BIT under a constant 1c as shown in figure 1(a).18_.(one or more than one...
1) Calculate the value of the base current
IB. (in μA)
2) Calculate the value of the base collector current
IC. (In mA)
3) Calculate the value of the collector-emitter voltage
VCE. (In V)
Required information In the circuit below: RB = 820 kN, Vcc = 12 V, RC = 3 kN2, and Bdc = 100. Note: The transistor is silicon. Vcc w Rc Re Bdc
8. Find a) base current is , b) collector current ic and c) voltage between collector and emitter VCE Vcc=4.6V VCC RB=200k R WWW RRC=lk B=100 n-p-n BJT
A Si p-n-p transistor has impurity concentrations of6*1018, 7 1015 and 9*1017 cm3 in the emitter, base and collector regions correspondingly. The corresponding carrier lifetimes are 10 10-7, and 106 s. The device cross-section area A-0.02 mm2, the emitter base junction is forward biased to 0.7V. Use diffusion coefficients DE-3cm2/s, DB-15 cm2/s, Dc-5cm%, and base with w=0.65 (a) Calculate emitter current using iEp.n-qADpPn p exp( )1 (b) Calculate current gain: (c) Estimate the device switching time (RC) assuming that resistance...
Can I get help with part g through part r, please?
Given the following Common-Emitter Amplifier with Voltage-Divider Bias: The transistor is a Silicon device with B160 (Beta 160) and transistor r.= 30 kn: 20 V 34.7k LAL = Vou 35.10 31.1k LRE $3900 03 - Find the following quantities in parts a through where means Quiescent DC): a) Thevenin Voltage and Thevenin Resistance Re b) Base Current la Collector Current le d) Emitter Current le e) Transistor Collector-Emitter Quiescent...
