What allowance for expansion must be made for a steel pipe 120 m long that handles...

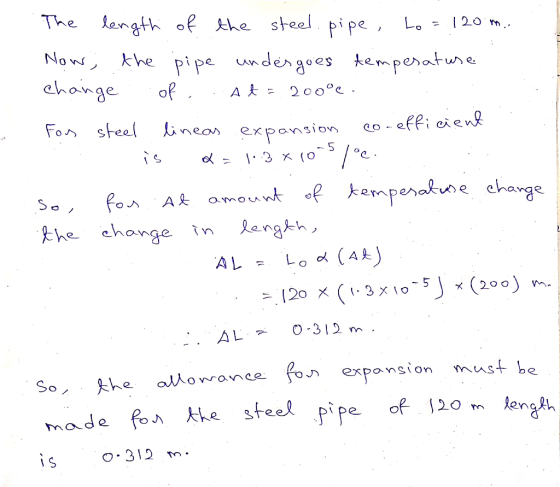

What allowance for expansion must be made for a steel pipe 120 m long that handles coolants and must undergo temperature changes of 200 ℃? For steel, α=1.3* 10−5 /℃ .
Homework Answers
Here only linear expansion
i.e. expansion in one dimension is considered.Add Answer to:
What allowance for expansion must be made for a steel pipe 120 m
long that handles...
Q4:110 points The pipe is made of A992 steel and is connected to the collars at...
Q4:110 points The pipe is made of A992 steel and is connected to the collars at A and B. When the temperature is 15°C, there is no axial load in the pi pipe causes its temperature to rise by AT- (10 +20x) C, where x is in meter, determine the average normal stress in the pipe. The inner diameter of the pipe is 40 mm, the wall thickness is 5 mm. Est-200 GPa ast= 12x10-6/°C pe. If hot gas traveling...
Steel Beam A beam used in construction is made of steel, which has a coefficient of...
Steel Beam A beam used in construction is made of steel, which has a coefficient of linear expansion of 1.3 x 105 K1. The beam is 30 m long at a temperature of 1635 K when it is made. As it cools, the temperature of the beam decreases to 300 K 1) What is the change in the length of the beam due to cooling? m Submit 2) If the mass of the steel beam is 390 kg and the...
QUESTION 5 A 12-m-long and 11-mm-inner-diameter pipe made of commercial steel is used to heat a...
QUESTION 5 A 12-m-long and 11-mm-inner-diameter pipe made of commercial steel is used to heat a liquid in an industrial process. The liquid enters the pipe with T; = 20°C, V=0.8 m/s. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the pipe, so that the fluid exits at 60°C. Assuming fully developed flow and taking the average fluid properties to be p = 992.1 kg/m2, k = 0.631 W/m-°C, Cp =...
A copper pipe is 24 m long at 0 oC. If the temperature is increased to...
A copper pipe is 24 m long at 0 oC. If the temperature is increased to 52 oC, by how much (in mm) does its length change? Linear expansion coefficients α for copper: 17*10-6/oC Enter a number with two digits behind the decimal point.
Expansion joints are used to allow for thermal expansion bridges. A steel bridge with a single...
Expansion joints are used to allow for thermal expansion bridges. A steel bridge with a single expansion joint must operate between temperature extremes -50 F and 150 F, the gap in the joint is fully closed and the bridge is 100 m long. The linear expansion coefficient of steel is 12 x 10^-6 (Celcius). What is the gap at -50 F? Express your answer in centimeters.
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter of 5 cm and an outer diameter of 5.5 cm is carrying a fluid at a temperature of 80 °C. The heat transfer coefficient for the fluid inside the pipe is 1000 W / m2 *K. The heat transfer coefficient of the air is 5 W / m2 *K and the air at a substantial distance from the pipe is at 25 °C. At...
Paton P'S 2 107 3.6 The inlet of a cast iron pipe, 120 m long and...
Paton P'S 2 107 3.6 The inlet of a cast iron pipe, 120 m long and 150 mm a dam. The pipe is 1/25 slope and contains a 90 bend (R/d = 1,0) diameter is 2 m below the wa.ter level of laid with a and the water exits to the atmosphere. Take the water temperature B.S 20 C (then 10 kg/ms) and determine the flow rate. [0,045 m2/s] 3.7 Water is discharged from a reservoir through a sharp outlet...
A 10 m long stainless steel (AISI 347) pipe is delivering saturated liquid water at 140...
A 10 m long stainless steel (AISI 347) pipe is delivering saturated liquid water at 140 °C. The inner and out diameter is 20cm and 22cm, respectively. Ambient air at 27 °C flows over this pipe as cross flow at 5 m/s. The convection heat transfer between internal surface and water is 200W/m^2*K. If you need the external surface temperature in finding property of air, you can assume the pipe external surface temperature is 127 °C. (1) Find the heat...
Water flows through a 30-cm-diameter pipe that is 60 m long and made from commercial steel...
Water flows through a 30-cm-diameter pipe that is 60 m long and made from commercial steel ssure is 240 kPa. The pi downward such that the downstream point has an elevation of 2 m and the pressure is 135 kPa a) Using an iterative scheme, what is the flowrate through the pipe? Show at least an initial guess and one iteration by hand calculations, See the in-class Type Ill problem for an example of what these hand calculations should look...
A bridge is made with segments of concrete 50 m long. If the linear expansion coefficient...
A bridge is made with segments of concrete 50 m long. If the linear expansion coefficient is 12 X 10–6 (°C)–1 , how much spacing (in cm) is needed to allow for expansion during an extreme temperature change of 150°F? ANSWER. 5.0 cm PLEASE EXPLAIN YOUR CONVERSIONS AND STEPS
Q4:110 points The pipe is made of A992 steel and is connected to the collars at A and B. When the temperature is 15°C, there is no axial load in the pi pipe causes its temperature to rise by AT- (10 +20x) C, where x is in meter, determine the average normal stress in the pipe. The inner diameter of the pipe is 40 mm, the wall thickness is 5 mm. Est-200 GPa ast= 12x10-6/°C pe. If hot gas traveling...
Steel Beam A beam used in construction is made of steel, which has a coefficient of linear expansion of 1.3 x 105 K1. The beam is 30 m long at a temperature of 1635 K when it is made. As it cools, the temperature of the beam decreases to 300 K 1) What is the change in the length of the beam due to cooling? m Submit 2) If the mass of the steel beam is 390 kg and the...
QUESTION 5 A 12-m-long and 11-mm-inner-diameter pipe made of commercial steel is used to heat a liquid in an industrial process. The liquid enters the pipe with T; = 20°C, V=0.8 m/s. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the pipe, so that the fluid exits at 60°C. Assuming fully developed flow and taking the average fluid properties to be p = 992.1 kg/m2, k = 0.631 W/m-°C, Cp =...
Paton P'S 2 107 3.6 The inlet of a cast iron pipe, 120 m long and 150 mm a dam. The pipe is 1/25 slope and contains a 90 bend (R/d = 1,0) diameter is 2 m below the wa.ter level of laid with a and the water exits to the atmosphere. Take the water temperature B.S 20 C (then 10 kg/ms) and determine the flow rate. [0,045 m2/s] 3.7 Water is discharged from a reservoir through a sharp outlet...
Water flows through a 30-cm-diameter pipe that is 60 m long and made from commercial steel ssure is 240 kPa. The pi downward such that the downstream point has an elevation of 2 m and the pressure is 135 kPa a) Using an iterative scheme, what is the flowrate through the pipe? Show at least an initial guess and one iteration by hand calculations, See the in-class Type Ill problem for an example of what these hand calculations should look...
