For the wavelengths of two spectra in a vacuum measuring 3023.55 and 3023.82 Angstrom. i. calculate...
For the wavelengths of two spectra in a vacuum measuring 3023.55 and 3023.82 Angstrom.

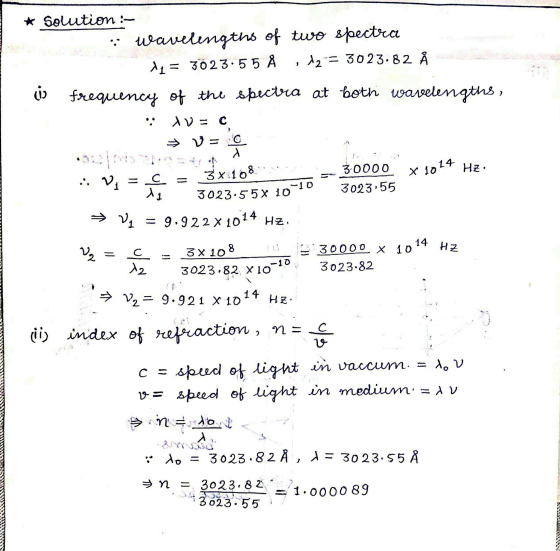

i. calculate frequency of the spectra at both wavelengths
ii. calculate the index of refraction for air

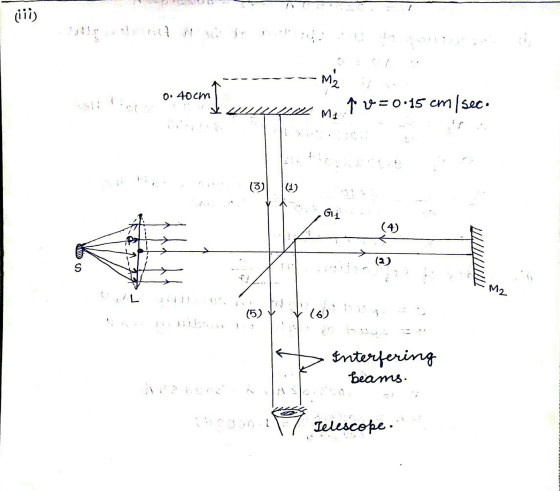

iii. for either wavelength; if the light is directed into a Michelson interferometer with a moving mirror traveling at a velocity of 0.15 cm/sec and a total movable distance of 0.40 cm what would the resulting interferogram look like? draw.
Homework Answers
