The primary of a transformer has 200 turns and is excited by a 60Hz, 200V source....
The primary of a transformer has 200 turns and is excited by a
60Hz, 200V source. What is the maximum value of the core flux (in
mWb)?
Thank you in advance!

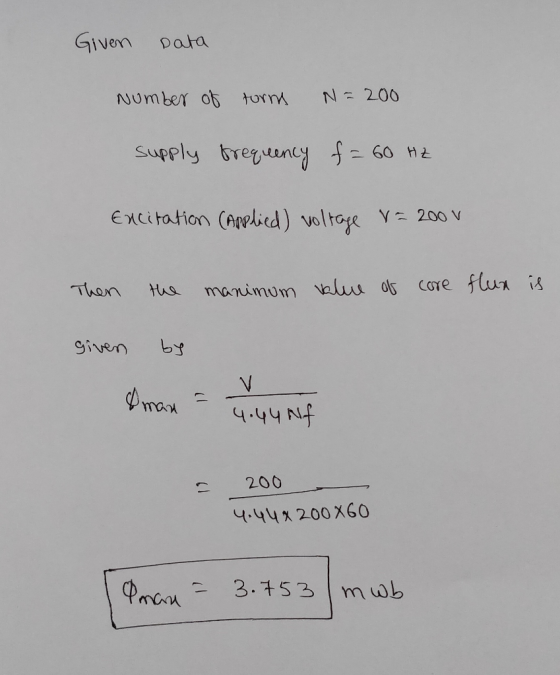

Homework Answers
Add Answer to:
The primary of a transformer has 200 turns and is excited by a
60Hz, 200V source....
A 3300/230V, 50Hz, i-phase transformer has a flux density of 1.2Tesla in the core. The effective...
A 3300/230V, 50Hz, i-phase transformer has a flux density of 1.2Tesla in the core. The effective cross-sectional area of the transformer core is 150cm2. What will be the primary and secondary turns used (make it a whole number) Please show step by step solution Thank you in advance
A transformer has 490 turns on its primary. An AC source supplies 120 Vrms on the...
A transformer has 490 turns on its primary. An AC source supplies 120 Vrms on the primary and the transformer delivers 9.0 V on its secondary. How many turns are on the secondary? Consider again the transformer described in the problem above. If 25 mA of current is going into the primary, what current is being drawn at the secondary? Please explain/show your work!
An ideal transformer with 5 turns on the primary and 10 turns on the secondary is...
An ideal transformer with 5 turns on the primary and 10 turns on the secondary is shown in the figure. A sinusoidal voltage source having V(t) = 10 sin(100t) volts is connected across the primary and a 1 Ω resistor is connected across the secondary. What is the maximum value of the current in the primary circuit (not the secondary)? (answer is 40 amps)
A single-phase 400V/200V transformer is supplying a load of 4 kW at 200 volts, 0.9 power...
A single-phase 400V/200V transformer is supplying a load of 4 kW at 200 volts, 0.9 power factor lagging. Considering the transformer to be ideal, answer the following questions The output (secondary) current of this transformer 20.00/_25.84 A 20.00/_-25.84 A 22.22/_-25.84 A 22.22/_25.84 A 12.83/_-25.84 A 12.83/_23.28 A Load impedance in ohms. 8.10+j3.92 9.00-j4.36 3.62-j1.47 9.00+j4.36 4.50+j2.18 8.10-j3.92 The primary current 10.00/_25.84 A 10.00/_-25.84 A 40.00/_-25.84 A 44.44/_-25.84 A 11.11/_25.84 A 11.11/_-25.84 A The load impedance referred to the primary in...
Transformer 10:1 his i 0 12 V Figure 4: Transformer with dc source. Shown in Figure...
Transformer 10:1 his i 0 12 V Figure 4: Transformer with dc source. Shown in Figure 4 is a very bad way to connect a transformer, which involves a 12 V battery. You may assume that the battery is ideal (i.e., zero internal resistance). The transformer has 10 turns on the primary winding, a saturation flux density of 1.2 T, a core cross-sectional area (Ac) of 10-4 m², and a relative permeability of 100 (i.e., He=100). You may assume that...
A single phase transformer has 2000 turns on the primary winding and 500 turns on the...
A single phase transformer has 2000 turns on the primary winding and 500 turns on the secondary. Winding resistances are ?1 = 2Ω, ?1 = 8Ω, ?2 = 0.125Ω, ?2 = 0.5Ω, ?? = 1122?? 800Ω and ???? = 1000Ω. a. Draw the complete circuit for the transformer with the parameters and transformation ratio indicated. b. Refer the secondary parameters to the primary side and draw the equivalent circuit (Draw the circuit with the core in parallel with the voltage...
You design a transformer. a. You want to build a transformer to convert 12v to 1.5v. The 1.5v side of the transformer has 200 turns. How many turns must the 12v side have? b. If the current in the primary (12v) side of the transformer is 5A, what is the c
You design a transformer. a. You want to build a transformer to convert 12v to 1.5v. The 1.5v side of the transformer has 200 turns. How many turns must the 12v side have? b. If the current in the primary (12v) side of the transformer is 5A, what is the current in the 1.5v side?
Q3. A forward converter drives a transformer at a frequency of 100 kHz. The transformer core has...
Q3. A forward converter drives a transformer at a frequency of 100 kHz. The transformer core has an effective area of 125 mm2. The converter runs at a maximum duty factor of 0.42 and is supplied from a voltage of 450 V. If the transformer carries 75 primary turns, calculate the core flux density excursion. (202 mT)
The primary of an ideal iron-core transformer with a 10:1 (primary:secondary) turns ratio is connected to...
The primary of an ideal iron-core transformer with a 10:1 (primary:secondary) turns ratio is connected to an ideal sinusoidal voltage source whose rms phasor is a real number Vi. The secondary is connected to a load impedance of 3 + 2j Ohms. a) Find the rms phasor for the current flowing through the primary.. b) Find the maximum instantaneous current flowing through the primary.
please show all of the work. thank you. A transformer has 490 turns in the primary...
please show all of the work. thank you.
A transformer has 490 turns in the primary coil, which provides 1280 V at 7.7 A. If the secondary coil operates at 520 V, how many turns are in the secondary coil? 08.1x104 O 1200 O 200 O 1400
Transformer 10:1 his i 0 12 V Figure 4: Transformer with dc source. Shown in Figure 4 is a very bad way to connect a transformer, which involves a 12 V battery. You may assume that the battery is ideal (i.e., zero internal resistance). The transformer has 10 turns on the primary winding, a saturation flux density of 1.2 T, a core cross-sectional area (Ac) of 10-4 m², and a relative permeability of 100 (i.e., He=100). You may assume that...
please show all of the work. thank you.
A transformer has 490 turns in the primary coil, which provides 1280 V at 7.7 A. If the secondary coil operates at 520 V, how many turns are in the secondary coil? 08.1x104 O 1200 O 200 O 1400
