Three resistors connected in parallel have the following values: 5.6 kΩ + 10%, 8.2 kΩ +...

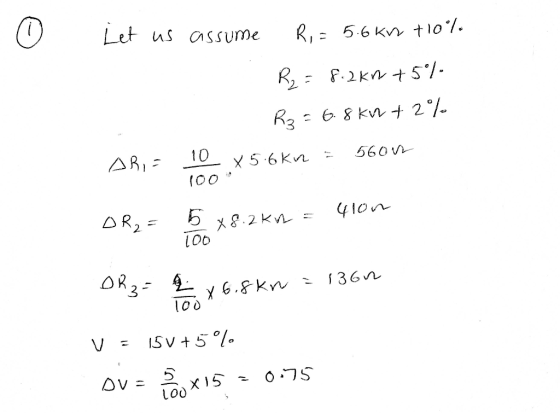

Three resistors connected in parallel have the
following values: 5.6 kΩ + 10%, 8.2 kΩ +

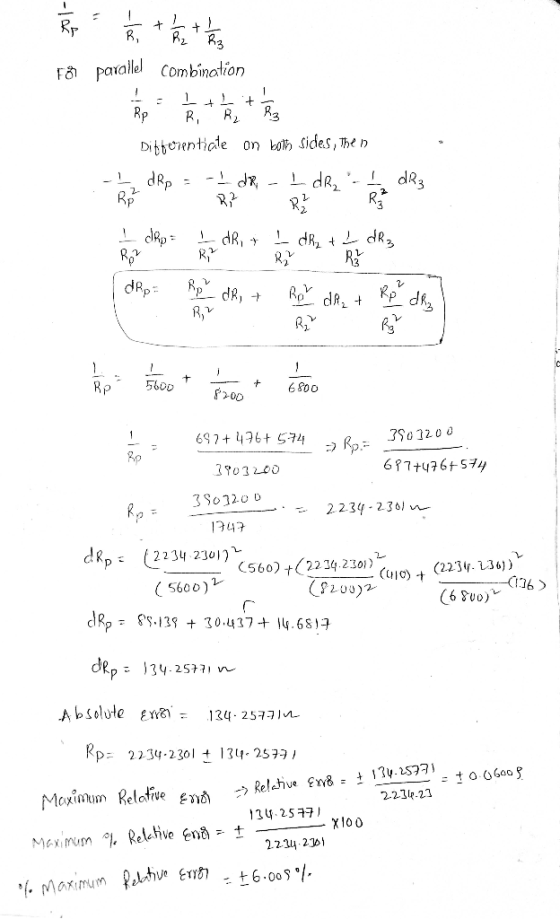

5%, 6.8 kΩ + 2%. Compute the total resistance, the maximum absolute
error and the

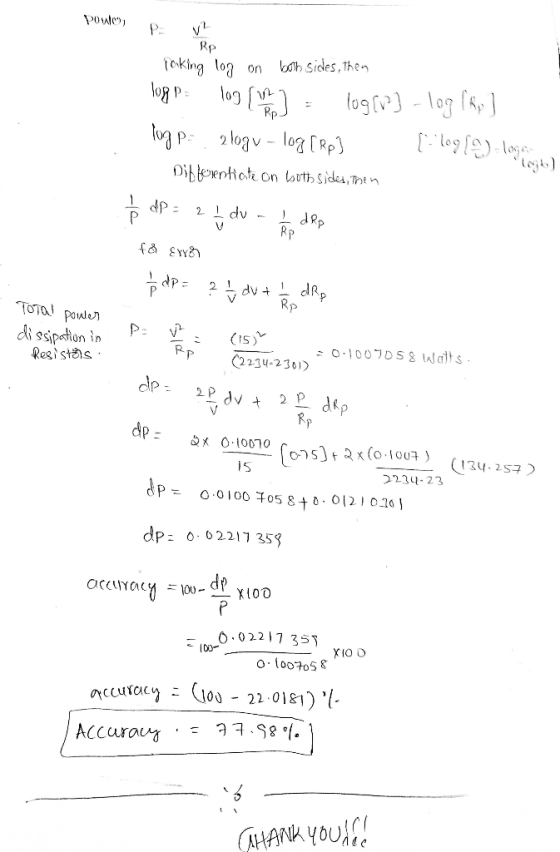

maximum relative error. Also, compute the total power dissipation
in the resistors and the
accuracy of determination if a 15 V + 5% supply is applied to the
circuit
Homework Answers
Add Answer to:
Three resistors connected in parallel have the
following values: 5.6 kΩ + 10%, 8.2 kΩ +...
A circuit was built with multiple resistors connected with series and parallel combinations as shown. Determine:...
A circuit was built with multiple resistors connected with series and parallel combinations as shown. Determine: (a) 10 pts. Total resistance of the circuit; (b) 5 pts. Total current of the circuit; (c) 5 pts. Total power dissipation of the circuit.
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel....
Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel. a) Find the equivalent resistance for the parallel combination. Rog- b) If the parallel combination is connected to a 2.00 V power supply, find the total power dissipated by the resistors. c) If the same 3 resistors are connected in series and then connected to the same power supply, find the total power dissipated by the resistors.
A 1.40 kΩ resistor is connected in series with a 0.800 kΩ resistor. This pair of...
A 1.40 kΩ resistor is connected in series with a 0.800 kΩ resistor. This pair of resistors is connected in parallel with a 7.00 kΩ resistor. That combination is then connected in series with a 0.700 kΩ resistor and a 9.0-V ideal battery (no internal resistance of course). A) sketch this circuit B) Determine the total equivalent resistance of this circuit's arrangement C) Determine the amount of current that flows through the battery D) Determine the voltage drop across the...
In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are...
In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are unknown and one of the resistors is 6 Ohms. In circuit 2, the resistor whose resistance is known (6 Ohms is removed from the circuit and the other three resistors are connected purely in parallel to the same battery. The power output of the battery in circuit 1 is 5.1 Watts more than the power output of the battery in circuit 2. What is...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A potential difference of 17.0 V is maintained between points and b. 3.00 ? 6.00 ? 9.001 ??? 3.00 ?| 6.001 9,00 Three resistors connected in parallel, The voltage across each resistor is 17.0 V battery. ts it equivalent to the circuit in (a)? ) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that wo are dealing witha simpla paralcombination of...
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V...
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V is maintained between points a and b. (A) Calculate the equivalent resistance of the circuit 18.0 V 3.00 (2] 6.00 Ω| 9.00 Ω (B) Find the current in each resistor (C) Calculate the power delivered to each resistor and the total power delivered to the combination of resistors
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω)...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
Three identical resistors (each having a resistance of 6 Ohm) are connected in parallel to a...
Three identical resistors (each having a resistance of 6 Ohm) are connected in parallel to a 24 (Volt) battery. The total power dissipated in the circuit is?
A circuit consists of a series combination of 6.00-kΩ and 5.00-kΩ resistors connected across a 50.0-V...
A circuit consists of a series combination of 6.00-kΩ and 5.00-kΩ resistors connected across a 50.0-V battery having negligible internal resistance. You want to measure the true potential difference (that is, the potential difference without the meter present) across the 5.00-kΩresistor using a voltmeter having an internal resistance of 10.0 kΩ. You may want to review (Pages 858 - 862) . For related problemsolving tips and strategies, you may want to view a Video Solution of Measuring resistance. Part A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Three resistors R, -4.002, R2 = 8.00 2. & R = 12.0 are connected in parallel. a) Find the equivalent resistance for the parallel combination. Rog- b) If the parallel combination is connected to a 2.00 V power supply, find the total power dissipated by the resistors. c) If the same 3 resistors are connected in series and then connected to the same power supply, find the total power dissipated by the resistors.
In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are unknown and one of the resistors is 6 Ohms. In circuit 2, the resistor whose resistance is known (6 Ohms is removed from the circuit and the other three resistors are connected purely in parallel to the same battery. The power output of the battery in circuit 1 is 5.1 Watts more than the power output of the battery in circuit 2. What is...
Three Resistors in Parallel Three resistors are connected in parallel as shon in figure (a). A potential difference of 17.0 V is maintained between points and b. 3.00 ? 6.00 ? 9.001 ??? 3.00 ?| 6.001 9,00 Three resistors connected in parallel, The voltage across each resistor is 17.0 V battery. ts it equivalent to the circuit in (a)? ) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that wo are dealing witha simpla paralcombination of...
Example 2: Three resistors are connected in parallel as shown. A potential difference of 18.0 V is maintained between points a and b. (A) Calculate the equivalent resistance of the circuit 18.0 V 3.00 (2] 6.00 Ω| 9.00 Ω (B) Find the current in each resistor (C) Calculate the power delivered to each resistor and the total power delivered to the combination of resistors
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
