A 0.48 m copper rod with a mass of 4.00×10⁻² kg carries a current of 15 A in the positive x direction. Let upward be the positive y direction.

What is the magnitude of the minimum magnetic field needed to levitate the rod? Express your answer using two significant figures.

What is the direction of the minimum magnetic field needed to levitate the rod?

science physics

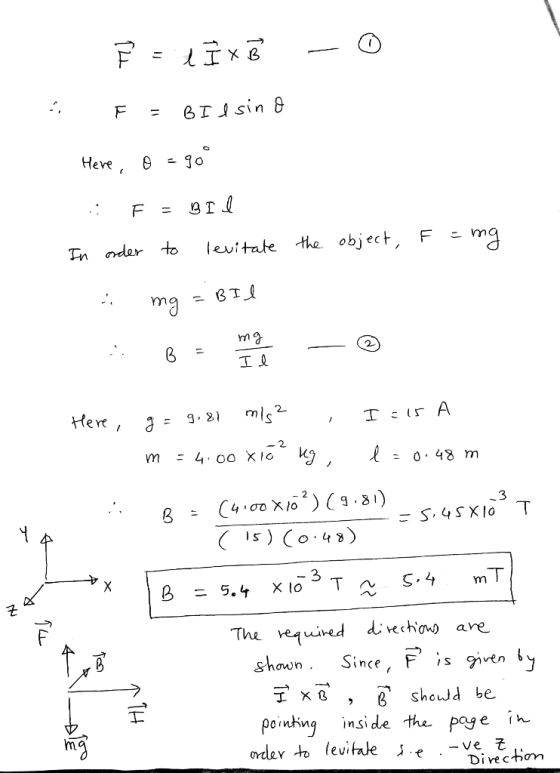

Answer 1

Answer #1
