Suppose that a particular highway offramp with a curve radius of 56 m is banked at...

Suppose that a particular highway offramp with a curve radius of 56 m is banked at 10˚ and was originally designed to include a coefficient of static friction of 0.25 between tires and road. If the DoT wants to repost the speed limit so that the curve is correctly banked when including a friction coefficient of only 0.1, what new speed should be posted?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

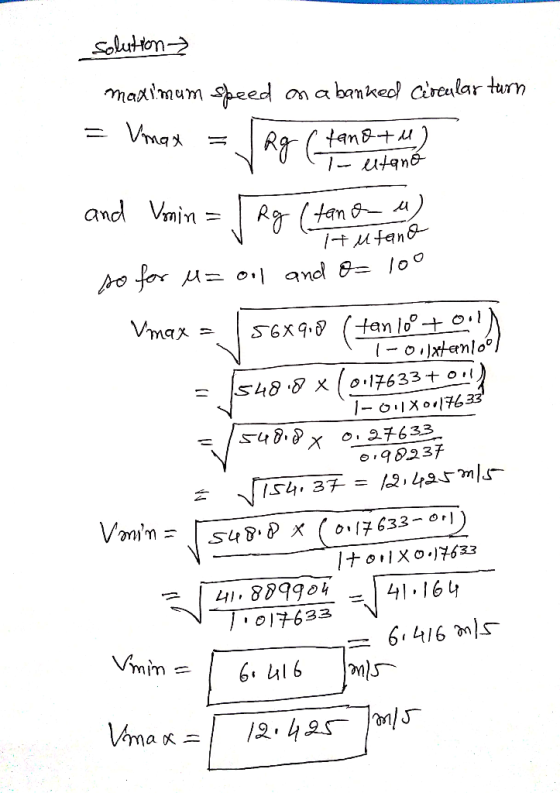

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Suppose that a particular highway offramp with a curve radius of 56 m is banked at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A highway curve of radius 68.0 m is banked at 21.4 degree so that a car...

    A highway curve of radius 68.0 m is banked at 21.4 degree so that a car traveling at 26.4 m/s (95 km/hr) will utilize both banking and friction to keep it on the curve. Determine the minimum coefficient of static friction between the tires and the road to keep the car on the road at this speed on this curve.

  • A banked circular highway curve is designed for traffic moving at 62 km/h. The radius of...

    A banked circular highway curve is designed for traffic moving at 62 km/h. The radius of the curve is 214 m. Traffic is moving along the highway at 41 km/h on a rainy day. What is the minimum coefficient of friction between tires and road that will allow cars to take the turn without sliding off the road? (Assume the cars do not have negative lift.)

  • A curve with a 130 m radius on a level road is banked at the correct...

    A curve with a 130 m radius on a level road is banked at the correct angle for a speed of 20 m/s. If an automobile rounds this curve at 30 m/s, what is the minimum coefficient of static friction between tires and road needed to prevent skidding?

  • A concrete highway curve of radius 70.0 m is banked at a 19.0° angle

    A concrete highway curve of radius 70.0 m is banked at a 19.0° angle. What is the maximum speed with which a 1900 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.)

  • A curve of radius 70 m is banked so that a 1000 kg car traveling at...

    A curve of radius 70 m is banked so that a 1000 kg car traveling at 60 km/h can round it even if the road is so icy that the coefficient of static friction is approximately zero. The acceleration of gravity is 9.81 m/s 2 . a) Find the minimum speed at which a car can travel around this curve without skidding if the coefficient of static friction between the road and the tires is 0.2 b) Find the maximum...

  • A concrete highway curve of radius 80.0 m is banked at a 19.0 ∘ angle. Part...

    A concrete highway curve of radius 80.0 m is banked at a 19.0 ∘ angle. Part A What is the maximum speed with which a 1400 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.)

  • A flat (unbanked) curve on a highway has a radius of 250 m

    A flat (unbanked) curve on a highway has a radius of 250 m. A car successfully rounds the curve at a speed of 35 m/s but is on the verge of skidding out. a. Draw free body diagram of the car. b. If the coefficient of static friction between the car's tires and the road surface were reduced by a factor of 2, with what maximum speed could the car round the curve without slipping? c. Suppose the coefficient of friction were increased...

  • A concrete highway curve of radius 70.0 m is banked at an 11 degree angle. What...

    A concrete highway curve of radius 70.0 m is banked at an 11 degree angle. What is the maximum speed with which a 1200 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.)

  • 110 points] A concrete highway curve of radíus R s banked at an angle . A...

    110 points] A concrete highway curve of radíus R s banked at an angle . A rubber-tired car of mass m can take the curve with some maximum speed Umar without sliding he coefficient of static friction between the tires and the road is ue and the coefficient of kinetic friction between the tires and the road is the (a) Sketch the free body diagram of the car in the space below. Label all forces accord- ingly, including the correct...

  • A concrete highway curve of radius 80.0 m is banked at a 13.0 ∘ angle. Part...

    A concrete highway curve of radius 80.0 m is banked at a 13.0 ∘ angle. Part A What is the maximum speed with which a 1200 kg rubber-tired car can take this curve without sliding? (Take the static coefficient of friction of rubber on concrete to be 1.0.) Express your answer with the appropriate units.
