To see why an MRI utilizes iron to increase the magnetic field created by a coil,...

To see why an MRI utilizes iron to increase the magnetic field created by a coil, calculate the current in amperes needed in a 420-loop-per-meter circular coil 0.660 m in radius to create a 1.30 T field (typical of an MRI instrument) at its center with no iron present.

A

The magnetic field of a proton is approximately like that of a circular current loop 0.650 ✕ 10−15 m in radius carrying 1.05 ✕ 104 A. What is the field in teslas at the center of such a loop?

T

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

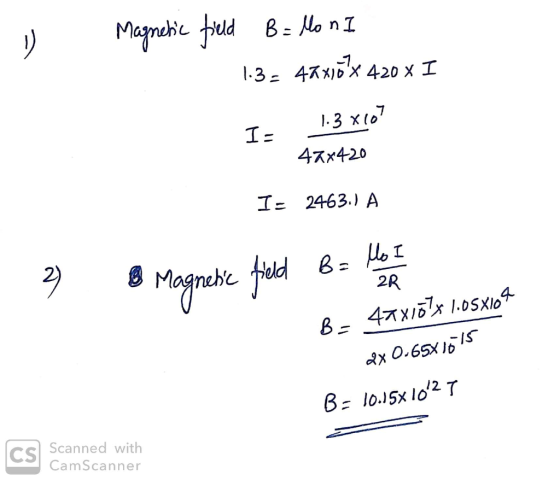

Answer #1

0 0
Add a comment
