In Lab 2, you learned
- various plotting techniques
- how to create an exponentially faded version
of a given sinusoidal signal.
In this assignment, you will be working with two sinusoidal
signals. The higher-frequency signal
c(t) = cos(2*pi*F*t) (where F is in Hertz)
will be referred to as "carrier"; while the lower-frequency
signal
v(t) = 1.5 + cos(2*pi*f*t + q) (f in Hz, again)
will be referred to as "envelope". Note that the envelope has
a positive offset of 1.5 units.
In amplitude modulation (AM), the envelope multiplies the carrier
and the resulting product signal
x(t) = v(t)*c(t)
is the AM signal.
_________________________________________________________________

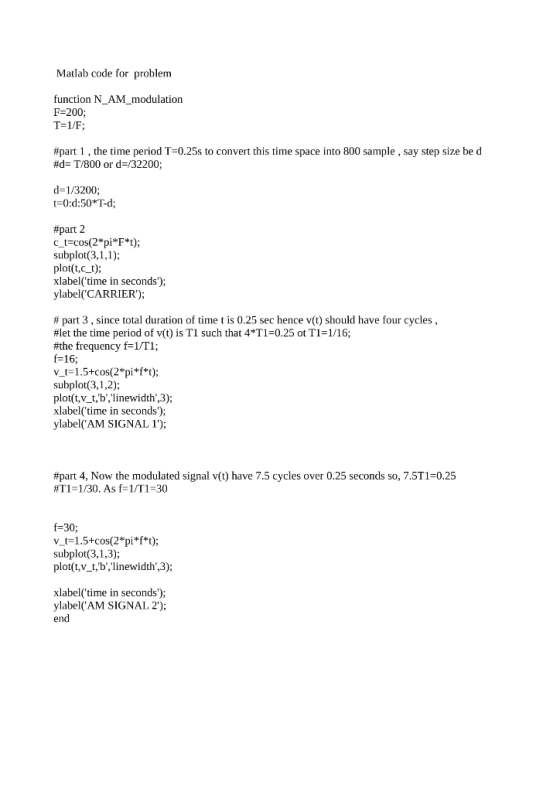

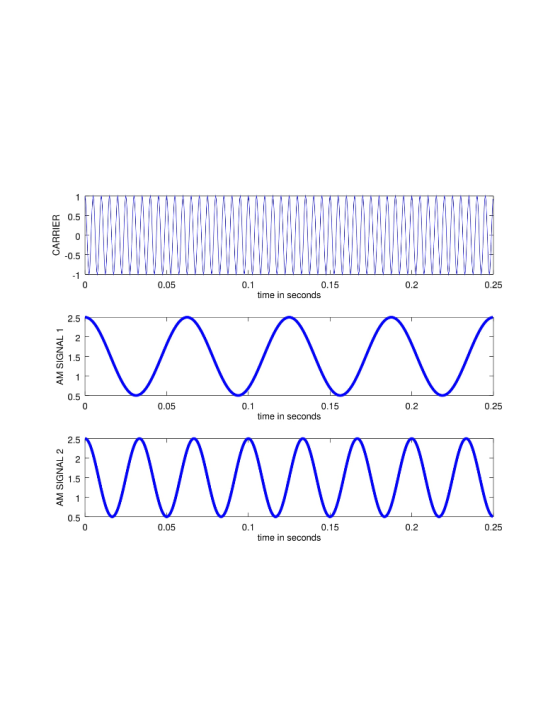

Your code should generate three signal vectors. Plot them in a
SINGLE figure consisting of THREE subplots (3 rows, 1 column).
The SUBPLOT function should be used. EACH subplot should have
labels on the horizontal and vertical axes, and also the
appropriate title:
CARRIER, AM SIGNAL 1 and AM SIGNAL 2
(i) Suppose that F = 200 Hz (above). Create a time vector td
that contains 800 samples of c(t), spanning 50 periods.
td should have the form
td = 0 : d : 50*T-d
where T is the period of c(t) and d is to be determined.
(ii) Let c be the vector of values c(t), where t ranges over
td (of part (i)). Plot c against td (first plot,
"CARRIER").
(iii) Determine f and q such that the envelope v(t) completes
exactly four periods while c(t) completes (exactly) 50
periods; and v(0) = 2.5 (maximum possible value).
Plot x(t) = v(t)*c(t) for this case, where t ranges
over td from part (i). Label this plot as "AM SIGNAL 1".
(iv) Determine f and q such that the envelope v(t) completes
exactly 7.5 periods while c(t) completes (exactly) 50
periods; and v(0) = 0.5 (minimum possible value).
Plot x(t) = v(t)*c(t) for this case also, where t again
ranges over td. Label this plot as "AM SIGNAL 2"
