Question

Use the following table to calculate duration (round to 0 decimal places)

ID	TASK NAME	Optimistic	Most likely	Pessimistic	Precedence	Duration
1	First	1	2	4
2	Second	3	5	10	1
3	Third	9	11	13	2
4	Fourth	3	5	6	3,8,9
5	Fifth	6	7	8	4,11
6	Sixth	5	6	8	1
7	Seventh	3	5	8	6
8	Eighth	1	2	5	7
9	Ninth	1	3	5	6
10	Tenth	4	5	6	9,8
11	Eleventh	3	4	5	10
12	Twelfth	4	5	6	11
13	Done	0	0	0	5,12

Use Activity on Node to construct a network activity diagram with the preceding table.

ES	Task	LS
EF	Dur	LF

Use the forward and backward pass method to calculate project duration. Include slack on the arrows and identify the critical path(s) and burst and merge activities.

Evaluate the finished project and write a review of your analysis and how you completed each step. Include the completed table and your AON diagram in your paper

Your response should be integrated in a well-written paper that meets the following requirements:

• Be 2-3 pages in length plus graphical elements, placing these graphical elements in an appendix,
• Be formatted according to the APA Style
• Include two scholarly sources

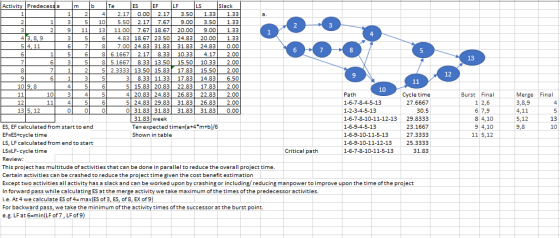

Answer 1

Answer:
