For each problem draw each digest listed as well as a final figure with each restriction...

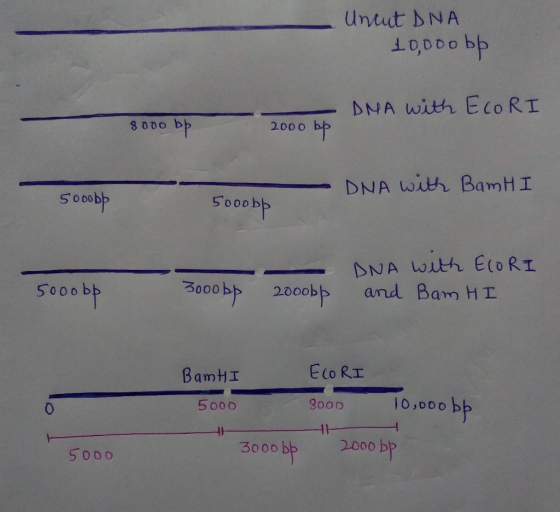

For each problem draw each digest listed as well as a final figure with each restriction site indicated
1. Construct a restriction map of a linear fragment of DNA, using the following data. Your map
should indicate the relative positions of the restriction sites along with distances from the ends of
the molecule to the restriction sites and between restriction sites:
DNA
Sizes of Fragments (bp)
uncut DNA:
10,000
DNA cut with EcoRI:
8000, 2000
DNA cut with BamHI:
5000, 5000
DNA cut with EcoRI + BamHI:
5000, 3000, 2000
Homework Answers
