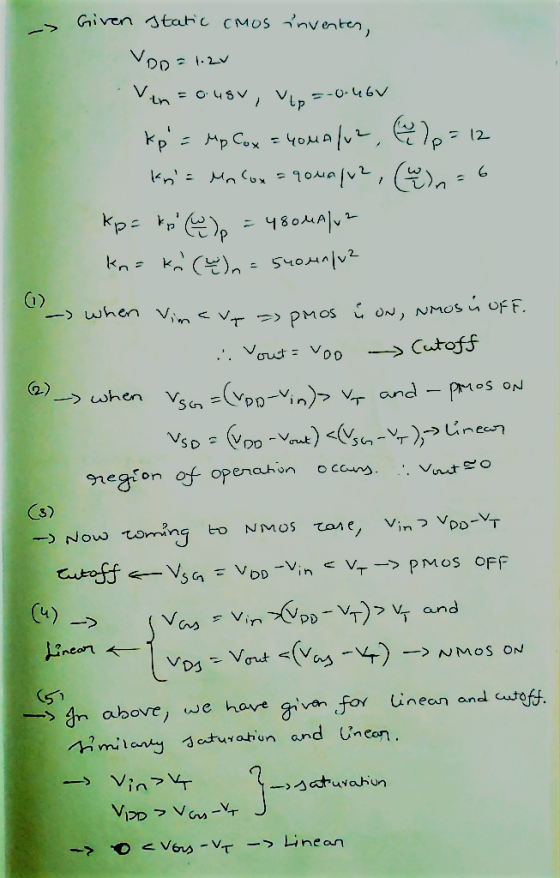

Consider a static CMOS inverter with the following parameters:
VDD = 1.2V, Vtn = 0.48V, Vtp = -0.46V, kp' = μp*Cox = 40μA/V2, kn'= μnCox = 90μA/V2,
Wn/Ln = 6, Wp/Lp = 12, Ec,nLn= 0.4V, Ec,pLp = 1.8V, Vsat,n = 124,340 m/s.

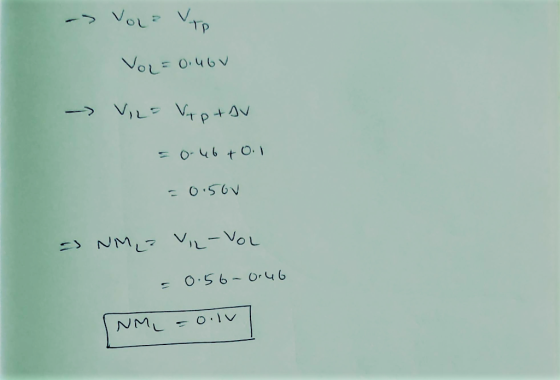

Calculate the noise margins of the circuit using the Short-Channel Formula.

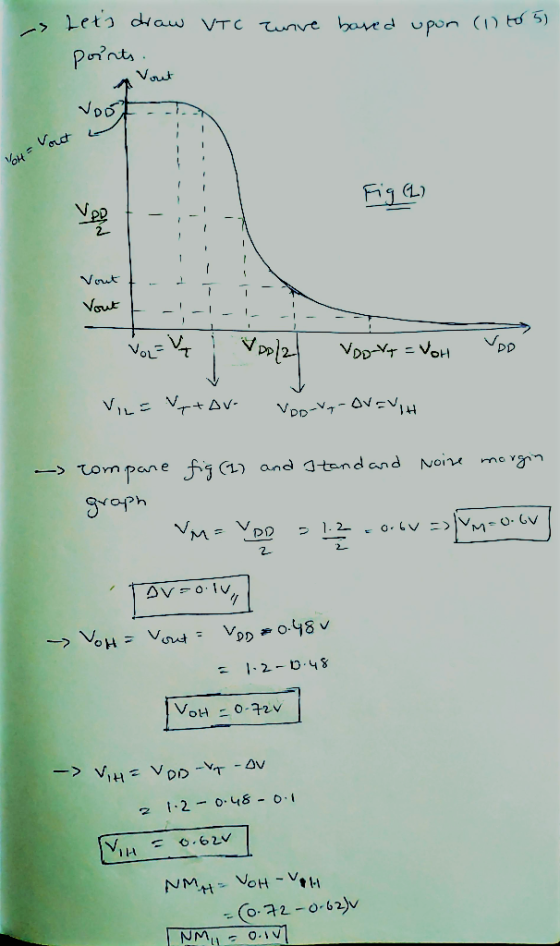

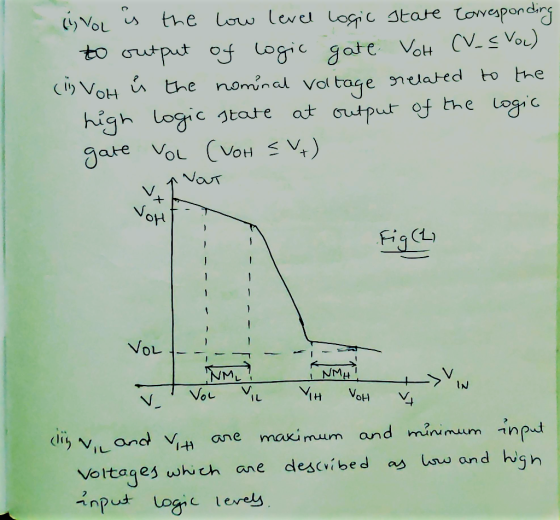

Lets see the defination and standard noise margin graph for better understanding while doing the problem.
