Consider a car moving on a circular track of radius R with constant velocity v. The...
Consider a car moving on a circular track of radius R with constant velocity v. The track is inclined at an angle β with respect to the ground, such that the interior of the track is lower than the exterior and the tangent of β is greater than the coefficient of static friction of the track µ. (Answer questions in terms of g, R, β and µ.)

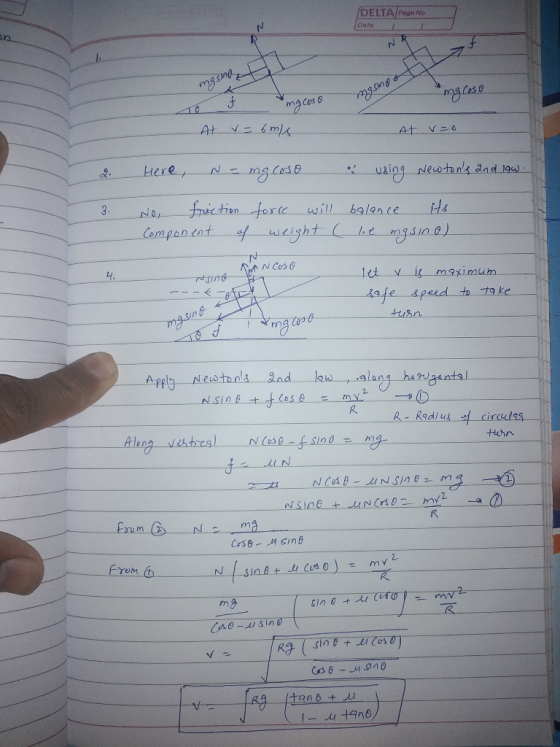

(1) Draw a free body diagram of the car for v 6= 0. Draw a free body diagram of the car when v = 0.
(2) Solve for the normal force exerted on the car by the track.
(3) If the car is off and parked, v = 0, will it slip down the track? Prove your answer.
(4) How large does v have to be to prevent the car from slipping down the track?
Homework Answers
