Hydrogen gas (H2) is initially at a pressure of 20 bar and temperature of 300'C (state...

Hydrogen gas (H2) is initially at a pressure of 20 bar and temperature of 300'C (state 1), while occupying a volume of 0.5 m3 in a frictionless piston-cylinder arrangement. The gas then undergoes a reversible cycle in which it expands isothermally to a pressure of 8 bar (state 2). This is then followed by adiabatic compression to restore the pressure back to 20 bar. The cycle is then completed by a constant pressure process. Sketch the process of p-v and T-s diagrams. Assuming perfect gas behaviour, determine: a) The work done by each process b) The heat transfer in process 1-2 c) The entropy change in each process (For hydrogen take cp=14.4 kJ/kgK and relative molecular mass, M=2) Ans: 2a) 916.3kJ, -750kJ b)916.3kJ c)1.6kJ/K, 0, -1.58 kJ/K Please show the detailed solutions. Thanks.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

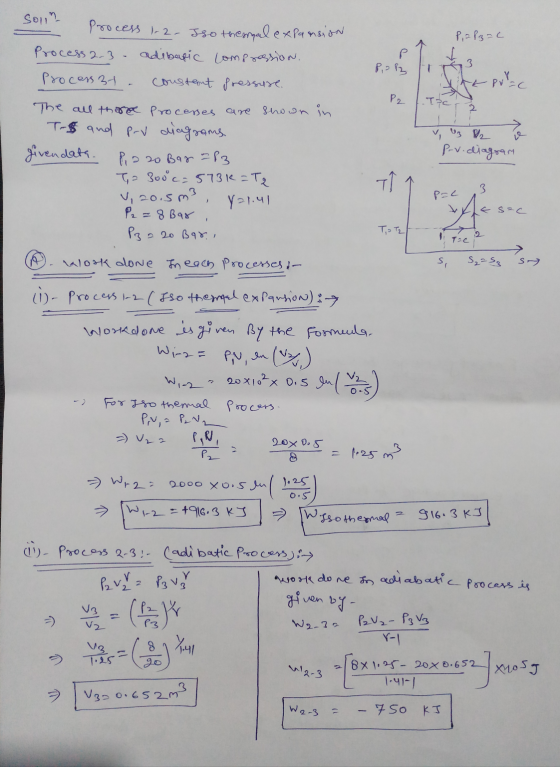

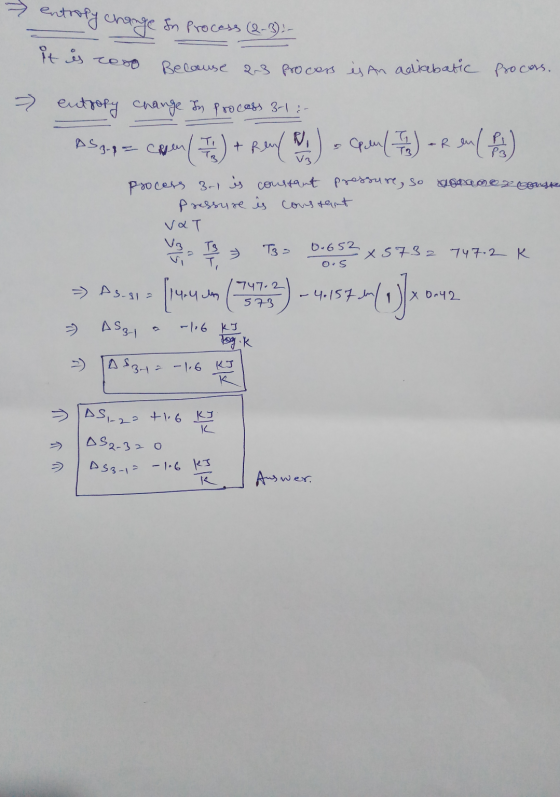

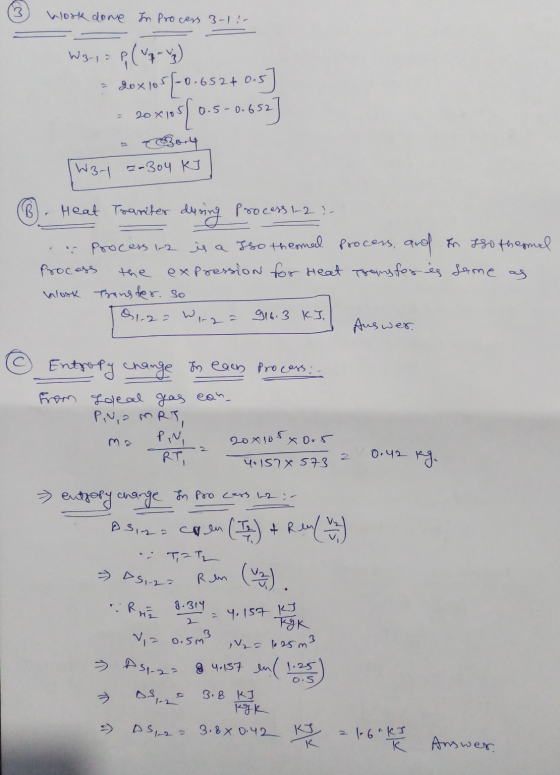

Answer #1

0 0
Add a comment
