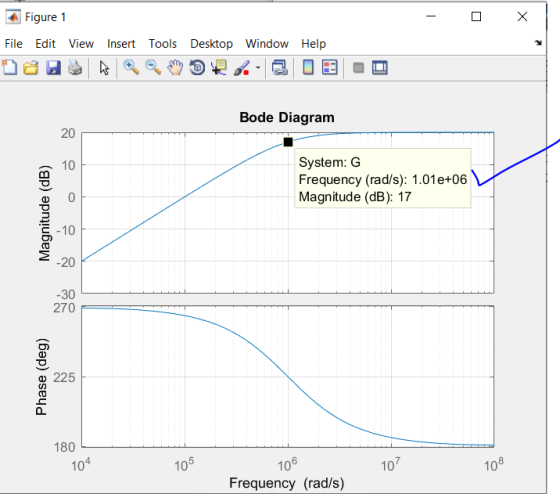

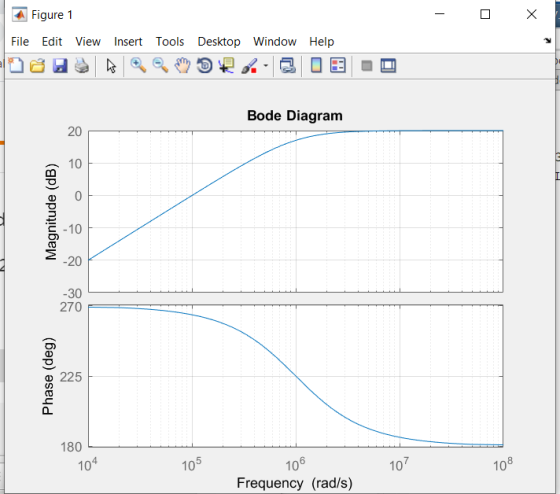

If R2=1kΩ, R1=100Ω, and L=1mH, provide magnitude and phase Bode plots, indicate corner frequency. given that...
If R2=1kΩ, R1=100Ω, and L=1mH, provide magnitude and phase Bode plots, indicate
corner frequency. given that the transfer function is = (-R2/R1)*((SL)/(R2+SL))
Bode plots done via Matlab Please.
Homework Answers
Add Answer to:
If R2=1kΩ, R1=100Ω, and L=1mH, provide magnitude and phase Bode
plots, indicate
corner frequency. given that...
a) Please show all your steps. For the magnitude and phase angle plots, approximate bode diagrams...
a) Please show all your steps. For the magnitude and phase angle plots, approximate bode diagrams (as provided in the last frequency lecture notes) and use MATLAB to obtain the exact solutions. You will observe that the maximum difference in the solutions are at the corner frequencies! b) Upholding Ethical standard is expected from you. If any ethical violation is detected, appropriate academic measure will be applied. c) Please respect the due date too. 250 1. Given: G(S) = 52...
1. (a) sketch the Bode magnitude and phase plots of a transfer function T(W) = Vo(w)...
1. (a) sketch the Bode magnitude and phase plots of a transfer function T(W) = Vo(w) given Wo = 27x1oʻrad/s. Vi (w) (l+ges/wo2 g (6) Calculate the half-power or 3-dB Cut-off frequency of the above transfer function, and the phase LT(W) at the 3-dB cut-off frequency.
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), id...
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the zero gain, the slopes (in Decibels) and the high-frequency cutt-off rate. Then verify with Matlab (6) wn = 1, 〈 0.0.1, and 0.707. (8) Assuming the system of Problem 6 above, and an input of r(t) = 30sin(1000 t), use your bode plot to obtain the steady-state response
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the...
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), id...
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the zero gain, the slopes (in Decibels) and the high-frequency cutt-off rate. Then verify with Matlab C()101 100) s 0.1) (s 10) 100 s(s +10)2 G(s) = (56) G(s) = s+10(s+100)
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the zero gain, the slopes (in Decibels) and the high-frequency cutt-off rate. Then verify with Matlab C()101 100) s...
Bode Plots Sketch the Bode plot magnitude and phase for each of the three open-loop transfer...
Bode Plots Sketch the Bode plot magnitude and phase for each of the three open-loop transfer functions listed below. Verify your results using the bode m function in MATLAB.(a) \(G(s)=\frac{100}{s(0.1 s+1)(0.01 s+1)}\)(b) \(G(s)=\frac{1}{(s+1)^{2}\left(s^{2}+s+9\right)}\)(c) \(G(s)=\frac{16000 s}{(s+1)(s+100)\left(s^{2}+5 s+1600\right)}\)
For the circuit shown in the figure above: Obtain an expression for H() Vo/Vi in standard form Generate spectral plots for the magnitude and phase of H (w), given that R-100Ω, L-0.1 mH, and C-1 μF De...
For the circuit shown in the figure above: Obtain an expression for H() Vo/Vi in standard form Generate spectral plots for the magnitude and phase of H (w), given that R-100Ω, L-0.1 mH, and C-1 μF Determine the cutoff frequency we and the slope of the magnitude (in dB) when wwc >1
For the circuit shown in the figure above: Obtain an expression for H() Vo/Vi in standard form Generate spectral plots for the magnitude and phase of H (w),...
Please plot on semi-log scale for both magnitude and phase separately B. Sketch the Bode plots...
Please plot on semi-log scale for both magnitude and phase
separately
B. Sketch the Bode plots for the magnitude and the phase for the transfer function: 10(S + 1) H(S) = S(S + 10)(8 + 100)
QUESTION 2 Consider this 2" order transfer function which was discussed in lecture G(s) 10s+9 The Bode plots (magnitude, phase) for this G(s) are provided in this handout. For the following...
QUESTION 2 Consider this 2" order transfer function which was discussed in lecture G(s) 10s+9 The Bode plots (magnitude, phase) for this G(s) are provided in this handout. For the following frequency (i.e."o") values, do complex number calculations as performed in lecture, to verify that this magnitude curve (in decibels) and phase curve (in degrees) are correct “o',-0.03, 0.2, 1, 6, 20, and 60 rad/sec Be sure to show your work CLEARLY, and indicate on the Bode plots the magnitude/phase...
For the transfer function, construct the bode plots for magnitude and phase. Use copies of the...
For the transfer function, construct the bode plots for
magnitude and phase. Use copies of the semi-log paper on the second
page of this assignment. Also, a printable copy of the semi-log
paper can be found below. Use one sheet per problem. Indicate the
contributions from the factors of the transfer function with light
lines in pencil. These are called “guidelines”. Indicate the
graphical sum of the guidelines (the final bode plot) with heavier
lines in ink. You will find...
I need help with this Bode Plots assignment (5 points) Follow the steps (a-c) described below for the following transf...
I need help with this Bode Plots
assignment
(5 points) Follow the steps (a-c) described below for the following transfer function. Do the steps in order! 5. H50 H(s) 2000 a. On a 'blank Bode plot' grid, plot the Bode plot straight line hand sketch approximation for magnitude for the frequency range from 1000 to ω.*1000. Be sure, though, that the corner frequency aligns with an appropriate vertical line on the grid. b. On graph paper, directly below the magnitude...
a) Please show all your steps. For the magnitude and phase angle plots, approximate bode diagrams (as provided in the last frequency lecture notes) and use MATLAB to obtain the exact solutions. You will observe that the maximum difference in the solutions are at the corner frequencies! b) Upholding Ethical standard is expected from you. If any ethical violation is detected, appropriate academic measure will be applied. c) Please respect the due date too. 250 1. Given: G(S) = 52...
1. (a) sketch the Bode magnitude and phase plots of a transfer function T(W) = Vo(w) given Wo = 27x1oʻrad/s. Vi (w) (l+ges/wo2 g (6) Calculate the half-power or 3-dB Cut-off frequency of the above transfer function, and the phase LT(W) at the 3-dB cut-off frequency.
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the zero gain, the slopes (in Decibels) and the high-frequency cutt-off rate. Then verify with Matlab (6) wn = 1, 〈 0.0.1, and 0.707. (8) Assuming the system of Problem 6 above, and an input of r(t) = 30sin(1000 t), use your bode plot to obtain the steady-state response
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the...
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the zero gain, the slopes (in Decibels) and the high-frequency cutt-off rate. Then verify with Matlab C()101 100) s 0.1) (s 10) 100 s(s +10)2 G(s) = (56) G(s) = s+10(s+100)
For the following closed-loop transfer functions, sketch the bode plots (magnitude and phase), iden- tifying the zero gain, the slopes (in Decibels) and the high-frequency cutt-off rate. Then verify with Matlab C()101 100) s...
For the circuit shown in the figure above: Obtain an expression for H() Vo/Vi in standard form Generate spectral plots for the magnitude and phase of H (w), given that R-100Ω, L-0.1 mH, and C-1 μF Determine the cutoff frequency we and the slope of the magnitude (in dB) when wwc >1
For the circuit shown in the figure above: Obtain an expression for H() Vo/Vi in standard form Generate spectral plots for the magnitude and phase of H (w),...
Please plot on semi-log scale for both magnitude and phase
separately
B. Sketch the Bode plots for the magnitude and the phase for the transfer function: 10(S + 1) H(S) = S(S + 10)(8 + 100)
QUESTION 2 Consider this 2" order transfer function which was discussed in lecture G(s) 10s+9 The Bode plots (magnitude, phase) for this G(s) are provided in this handout. For the following frequency (i.e."o") values, do complex number calculations as performed in lecture, to verify that this magnitude curve (in decibels) and phase curve (in degrees) are correct “o',-0.03, 0.2, 1, 6, 20, and 60 rad/sec Be sure to show your work CLEARLY, and indicate on the Bode plots the magnitude/phase...
For the transfer function, construct the bode plots for
magnitude and phase. Use copies of the semi-log paper on the second
page of this assignment. Also, a printable copy of the semi-log
paper can be found below. Use one sheet per problem. Indicate the
contributions from the factors of the transfer function with light
lines in pencil. These are called “guidelines”. Indicate the
graphical sum of the guidelines (the final bode plot) with heavier
lines in ink. You will find...
I need help with this Bode Plots
assignment
(5 points) Follow the steps (a-c) described below for the following transfer function. Do the steps in order! 5. H50 H(s) 2000 a. On a 'blank Bode plot' grid, plot the Bode plot straight line hand sketch approximation for magnitude for the frequency range from 1000 to ω.*1000. Be sure, though, that the corner frequency aligns with an appropriate vertical line on the grid. b. On graph paper, directly below the magnitude...
