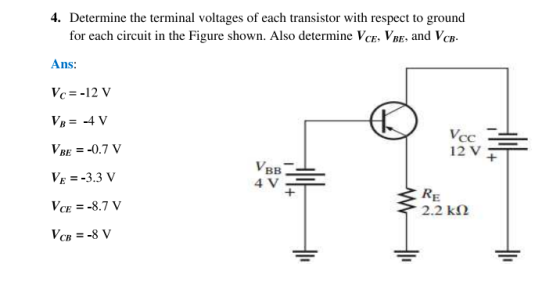

4. Determine the terminal voltages of each transistor with respect to ground for each circuit in the Figure shown. Also deter

0 0
Add a comment Improve this question Transcribed image text
Answer #1

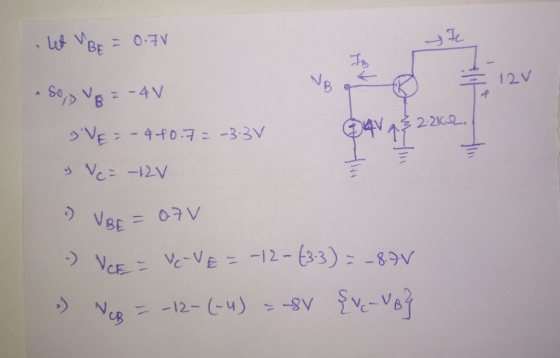

o V VBE = 07V
