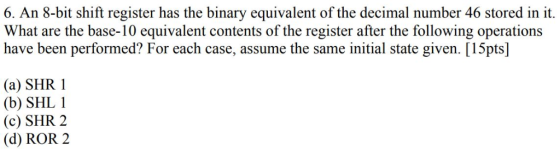

6. An 8-bit shift register has the binary equivalent of the decimal number 46 stored in it What are the base-10 equivalent co

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

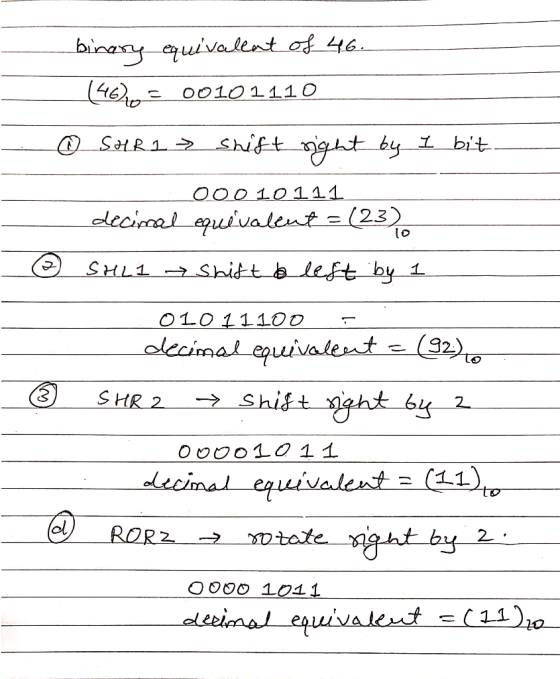

bi l4ēļ,--00101110 by Z _bit- 0001O111 (2.3 t o 1 040 11100 000010 1 1 to by-2 O 000 1041
