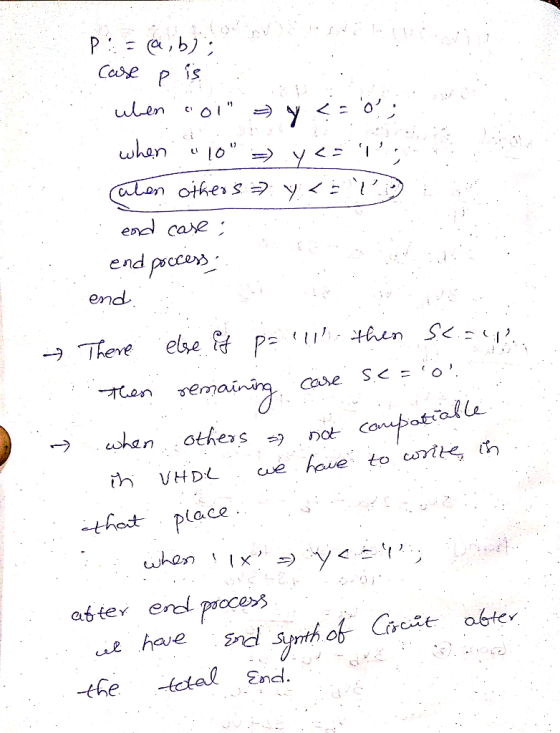

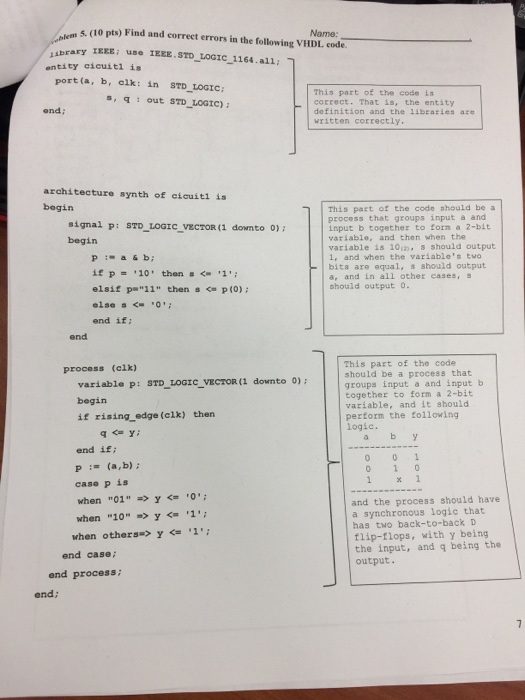

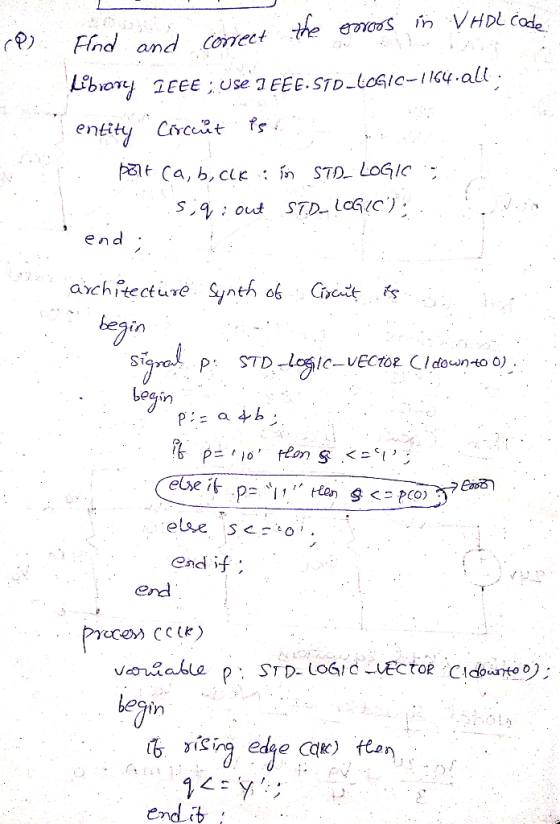

Name: ·5. (10 lts) Find and correct errors in the following VHDL ed. IEEE ; library use IEEE . STD LOGIC-1104 . all...
Write a test bench for the following VHDL code -------------------------------------------------------------------------------------------------------------------------------- LIBRARY ieee ; USE ieee.std_logic_1164.all ; ENTITY registern IS GENERIC (N: INTEGER :=4); -- INTEGER=32, 16, ….. PORT (D : IN STD_LOGIC_VECTOR (N-1 downto 0); clk, reset, Load : IN STD_LOGIC ; Q : OUT STD_LOGIC_VECTOR (N-1 downto 0 )) ; END registern; ARCHITECTURE behavior OF registern IS BEGIN PROCESS (clk) BEGIN IF clk' EVENT AND clk='1' THEN IF (reset ='0') THEN --synchronous reset Q<=(OTHERS=>’0’); ELSIF (L ='0') THEN Q<=D;...
QUESTION 1 Complete the following peice of VHDL code with the necessary VHDL statements for a counter that counts through this sequence(0,9,17,15,4,26) repeatedly. library IEEE use IEEE.STD_LOGIC_1164 ALL entity GCC is Port ( systemClock, reset in STD_LOGIC end GCC architecture Behavioral of GCC is stateOutput out STD LOGIC_ VECTOR (4 downto 0)) component FreqDivider is Port (systemClock in STD_LOGIC; slowClock: out STD LOGIC); end component, signal nextState, presentState: std_logic_vector(5 downto 0) := "00000"; signal slowClock: std_logic begin FD0: FreqDivider port...
8.(5 points).There is an error in following VHDL code. Find the error and correct (only that line of code). LIBRARY ieee; USE ieee.std_logic_1164.all; ENTITY dec2to4 IS PORT (i IN STD LOGIC VECTOR (1 DOWNTO 0); : En IN STD_LOGIC; d OUT STD LOGIC); END dec2to4; ARCHITECTURE dataflow OF dec2to4 IS BEGIN SIGNAL Eni: STD_LOGIC_VECTOR(2 DOWNTO 0); Eni <= En & i; -concatenate signals WITH Eni SELECT d <"0001" WHEN "100" "0010" WHEN "101", "0100" WHEN "110", "1000" WHEN "111", 0000"...
3. Study the VHDL code below for the multiplexer: -mux.vhd library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; use jeee.std logic.arith.all; entity mux is port DIFF1, DIFF2: n std_logic_vector(4 downto O); ABSLT: out std_logic_vector(4 downto 0); CO: in std logic ); end mux; architecture behv of mux is begin with CO select ABSLT DIFF1 when o, a CO-0 selects B-A DIFF2 when 1',a Co-1 selects A-B "ZZZZZ" when others·.. high impedance otherwise end behy
Question 18 (5 points) LIBRARY ece USE ieee.std logic 1164.all ENTITY prob6 21 IS PORT (w IN STD LOGIC VECTOR(3 DOWNTO 0) y: OUT STD LOGIC VECTOR(I DOWNTO 0)); END prob6 21 ARCHITECTURE Behavior OF prob6 21 IS BEGIN WITH w SELECT y <= "O0" WHEN "0001" ..01.. WHEN "O010", "10" WHEN 0100" 11" WHEN OTHERS END Behavior What type of circuit does the VHDL code represents? 4-bit shifter a 4-to-2 binary encoder A two bit multiplier None of the...
in vhdl
Manchester code is a coding scheme used to represent a bit in a data stream. A 'O' value of a bit is represented as a 0-to-1 transition in which the lead half is 'O' and the remaining half is '1'. Similarly, a '1' value of a bit is represented as a 1-to-transition, in which the lead half is 'l' and the remaining half is 0 For example, for the input string "110", the output is translated as: 110...
Please Write it in VHDL and complete the following code
Create an entity called "regs" where you infer a true dual port (both ports can independently either read or write to any location) memory consisting of 32 16-bit words (64 Bytes). It should have the following black box interface and behavior: entity regs is port clk, en, rst in std_logic; İdl, İd2 : in std logic vector (4 downto 0); __ Addresses wr_enl, wr_ en2 in std logic dinl, din2...
Need help with VDHL code. THis is a random number generator. Want to be able so that a number is generated when a button is pushed, not when the clock is high. library IEEE; use IEEE.STD_LOGIC_1164.ALL; -- Uncomment the following library declaration if using -- arithmetic functions with Signed or Unsigned values --use IEEE.NUMERIC_STD.ALL; -- Uncomment the following library declaration if instantiating -- any Xilinx leaf cells in this code. --library UNISIM; --use UNISIM.VComponents.all; library IEEE; use IEEE.STD_LOGIC_1164.ALL; entity RanNum...
(20 pts)VHDL. Implement the logic circuit specified in the following truth table by using a 4:1 mulitiplexer ome regular logic gates. 11 Draw a schematic of your implementation. 2) Suppose that you are given the following VHDL code of a 4:1 multiplexer. Please write a VHDL code to describe your implementation by using structure modeling technique, by using the following 4:1 multiplexer asia your answer component in your structure modeling. Note that you do not need to re-write the following...
Identify and correct the mistakes of code.
Identify and draw table for the circuit.
library ieee; 1 use ieee.std_logic_1164.all; 2 3 entity mux4x1_seq is 4. 5 port 6 ip0: ip1: ip2: ip3 in std_logic; 7 in std_logic_vector(0 to 1); out std_logic}; 9 op end mux4x1_seq}; 10 11 architecture beh of mux4x1_seq is 12 13 |begin 14 P_mux: process (ip0,ip1,ip2,ip3,s); variable temp: std_logic; 15 16 begin 17 case s is 18 temp ip0; when "00" => 19 when "01" temp ip1;...
