this is a mechanical engineering question heat transfer
Homework Answers
Add Answer to:

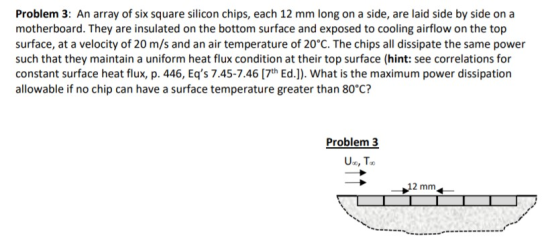

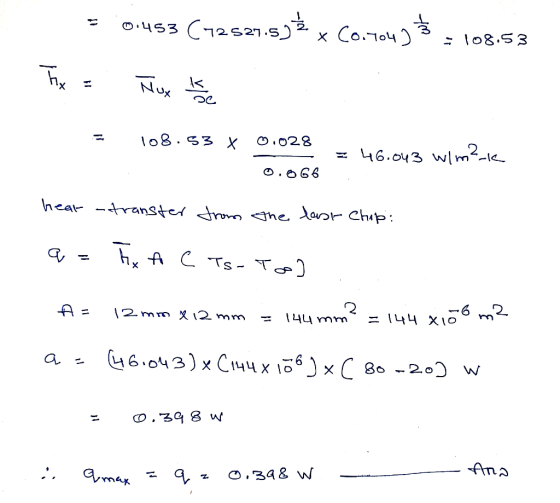

this is a mechanical engineering question heat transfer Problem 3: An array of six square silicon chips, each 12 mm lon...
7.33 A square (10 mm × 10 mm) silicon chip is insulated on one side and cooled on the opposite si...
7.33 A square (10 mm × 10 mm) silicon chip is insulated on one side and cooled on the opposite side by atmospheric air in parallel flow at u 20 m/s and T 24°C. When in use, electrical power dissipation within the chip maintains a uniform heat flux at the cooled surface. If the chip temperature may not exceed 80°C at any point on its surface, what is the maximum allowable power? What is the maximunm allowable power if the...
Your Initials ). Convection external flow An array of silicon chips, each of length L 10 mm and width w 10 mm on a side, is insulated on one surface and cooled on the opposite surface by atmospheric...
Your Initials ). Convection external flow An array of silicon chips, each of length L 10 mm and width w 10 mm on a side, is insulated on one surface and cooled on the opposite surface by atmospheric air in parallel flow with T. 24 C and u40 m/s. When in use, the same electrical power is dissipated in each chip, maintaining a uniform heat flux over the entire cooled surface. Assume properties for air are v 184 10 m...
(8 marks) The heat generated from power dissipation of a silicon chip is transferred by convection...
(8 marks) The heat generated from power dissipation of a silicon chip is transferred by convection heat transfer from top and bottom of the chip. Top surface of the chip is covered by a 4-mm thick aluminum cover (k = 240 W/m.k) which is subjected to convection heat transfer on its top surface. Bottom surface of the chip is directly subjected to convection. Convection heat transfer coefficient of fluid is h = 1000 W/m²K and To = 25 °C. The...
Problem 1 Consider a 15-mm by 15-mm chip that is cooled on its top surface by a 6 m/s flow of 25 ...
Problem 1 Consider a 15-mm by 15-mm chip that is cooled on its top surface by a 6 m/s flow of 25 °C air. Any heat transfer from its bottom surface to the circuit board is ignored. Because of the chip construction, the electrical power dissipated in the chip results in a uniform heat flux over the surface of the chip. If the maximum temperature that any part of the chip can experience is 80 "C, determine the maximum allowable...
As more and more components are placed on a single integrated circuit (chip), the amount of heat that is dissipated continues to increase. However, this increase is limited by the maximum allowable...
As more and more components are placed on a single integrated
circuit (chip), the amount of heat that is dissipated continues to
increase. However, this increase is limited by the maximum
allowable chip operating temperature, which is approximately 75°C.
To maximize heat dissipation. it is proposed that a 4 × 4 array of
copper pin fins of length 12.7 mm and diameter 1.5mm be
metallurgically joined to the outer surface of a square chip that
is 12.7 mm on a...
A simplified representation for cooling in very large- scale integration (VLSI) of microelectronics is shown in...
A simplified representation for cooling in very large- scale integration (VLSI) of microelectronics is shown in the sketch below. A silicon chip is mounted in a dielectric substrate, and one surface of the system is convectively cooled, while the reminding surfaces are well insulated from the surrounding. The problem is rendered two dimensional by assuming the system to be very large in the direction perpendicular to the paper. Under steady state (1) and transient (2) operation electronic power dissipation in...
Two-Dimensional Steady and Transient Conduction - Cooling a very large scale microelectronic chip, A simplified representation...
Two-Dimensional Steady and Transient Conduction - Cooling a very
large scale microelectronic chip,
A simplified
representation for cooling in very large-scale integration (VLSI)
of microelectronics is shown in the sketch below. A silicon chip is
mounted in a dielectric substrate, and one surface of the system is
convectively cooled, while the reminding surfaces are well
insulated from the surrounding. The problem is rendered two
dimensional by assuming the system to be very large in the
direction perpendicular to the paper....
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins is proposed to be etallurgically joined to the outer surface of the chip. The convection coefficient is h-250 W/m'K and ambient air mperature isTo-20°C. The pin fin dimeter is D,-1.5mm and length is L,-16mm. Assuming steady-state uniform chip temperature Te-75°C and...
7.33 A square (10 mm × 10 mm) silicon chip is insulated on one side and cooled on the opposite side by atmospheric air in parallel flow at u 20 m/s and T 24°C. When in use, electrical power dissipation within the chip maintains a uniform heat flux at the cooled surface. If the chip temperature may not exceed 80°C at any point on its surface, what is the maximum allowable power? What is the maximunm allowable power if the...
Your Initials ). Convection external flow An array of silicon chips, each of length L 10 mm and width w 10 mm on a side, is insulated on one surface and cooled on the opposite surface by atmospheric air in parallel flow with T. 24 C and u40 m/s. When in use, the same electrical power is dissipated in each chip, maintaining a uniform heat flux over the entire cooled surface. Assume properties for air are v 184 10 m...
(8 marks) The heat generated from power dissipation of a silicon chip is transferred by convection heat transfer from top and bottom of the chip. Top surface of the chip is covered by a 4-mm thick aluminum cover (k = 240 W/m.k) which is subjected to convection heat transfer on its top surface. Bottom surface of the chip is directly subjected to convection. Convection heat transfer coefficient of fluid is h = 1000 W/m²K and To = 25 °C. The...
Problem 1 Consider a 15-mm by 15-mm chip that is cooled on its top surface by a 6 m/s flow of 25 °C air. Any heat transfer from its bottom surface to the circuit board is ignored. Because of the chip construction, the electrical power dissipated in the chip results in a uniform heat flux over the surface of the chip. If the maximum temperature that any part of the chip can experience is 80 "C, determine the maximum allowable...
As more and more components are placed on a single integrated
circuit (chip), the amount of heat that is dissipated continues to
increase. However, this increase is limited by the maximum
allowable chip operating temperature, which is approximately 75°C.
To maximize heat dissipation. it is proposed that a 4 × 4 array of
copper pin fins of length 12.7 mm and diameter 1.5mm be
metallurgically joined to the outer surface of a square chip that
is 12.7 mm on a...
A simplified representation for cooling in very large- scale integration (VLSI) of microelectronics is shown in the sketch below. A silicon chip is mounted in a dielectric substrate, and one surface of the system is convectively cooled, while the reminding surfaces are well insulated from the surrounding. The problem is rendered two dimensional by assuming the system to be very large in the direction perpendicular to the paper. Under steady state (1) and transient (2) operation electronic power dissipation in...
Two-Dimensional Steady and Transient Conduction - Cooling a very
large scale microelectronic chip,
A simplified
representation for cooling in very large-scale integration (VLSI)
of microelectronics is shown in the sketch below. A silicon chip is
mounted in a dielectric substrate, and one surface of the system is
convectively cooled, while the reminding surfaces are well
insulated from the surrounding. The problem is rendered two
dimensional by assuming the system to be very large in the
direction perpendicular to the paper....
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins is proposed to be etallurgically joined to the outer surface of the chip. The convection coefficient is h-250 W/m'K and ambient air mperature isTo-20°C. The pin fin dimeter is D,-1.5mm and length is L,-16mm. Assuming steady-state uniform chip temperature Te-75°C and...
