Question

Create a speech filter circuit either on matlab or multisim. The filter design should operate on less than +- 6V DC. He...

Create a speech filter circuit either on matlab or multisim. The filter design should operate on less than +- 6V DC. Hence, speech filter 300Hz to 3KHz. Show bode plot.Thank you. Will upvote.
0 0
Add a comment Improve this question Transcribed image text
Answer #1

MANUAL CALCULATIONS

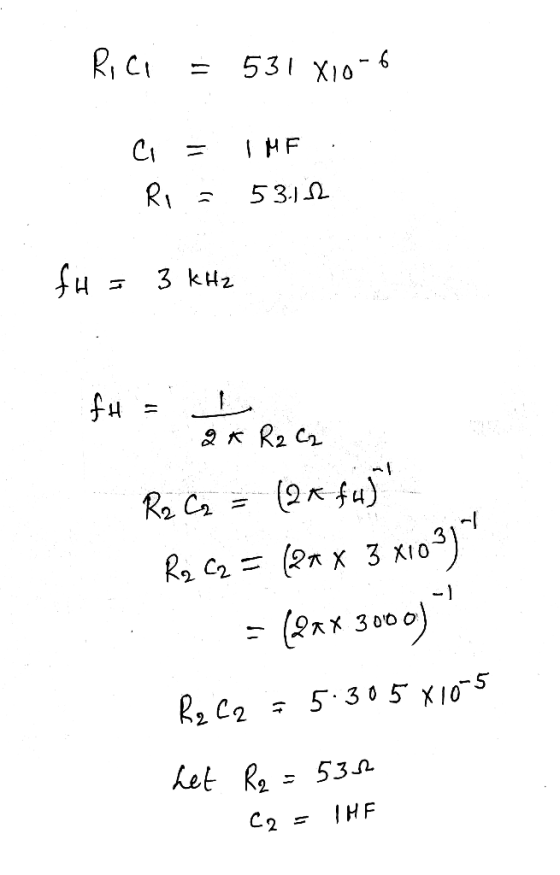

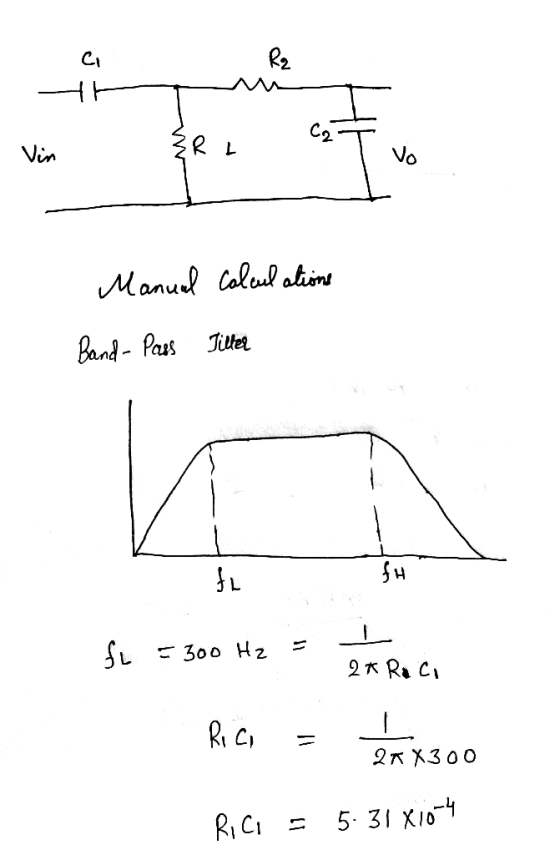

CI 2 C2 Vo FH 11-300 Hz = -L Ri CI 2n X30OH3 kHz Fu -1 ket R53A

MULTISIM SIMULATION

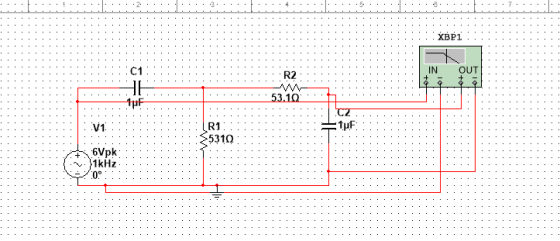

5- 2. XBP1 IN OUT C1 R2 우 오-오우 53.1Ω ApF R1 531Ω V1 1kHz 0°

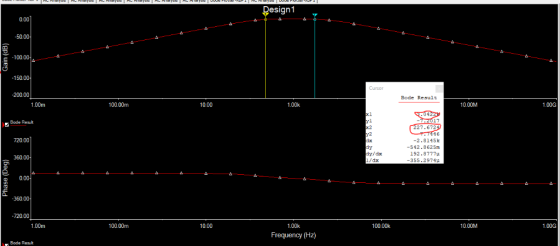

BODE PLOTesign1 0.00 50 c-100 150 -200.00 Bode Result 100.00m 10.00 1.00m 1.00k 10.00M 1.00G 17 Bode Result 27.672 46 720.00 -2.814Sk

NOTE : At lower frequency impedance is very high ,So there is some deviation in lower cutoff frequency Fl

Add a comment
