Homework Answers
Add Answer to:

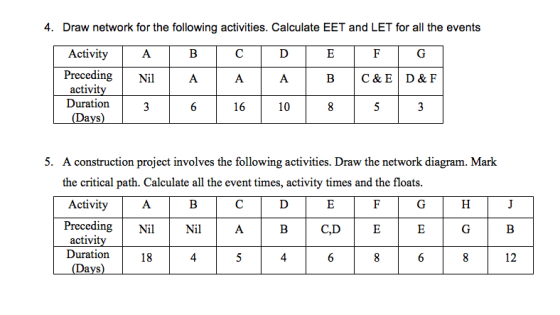

4. Draw network for the following activities. Calculate EET and LET for all the events Activity PrecedingNil activi Dur...
