The force of constant of a spring of spring pendulum is 50N/m. A block of mass...
The force of constant of a spring of spring pendulum is 50N/m. A block of mass 0.5 kg, attached to it is pulled through a distance of 0.01 m before being released. Calculate the following expressions:
a) the time period and frequency
b) velocity amplitude and acceleration amplitude;
c) the time required by the block to move half-way towards the center from its initial position
d) total energy of the system.

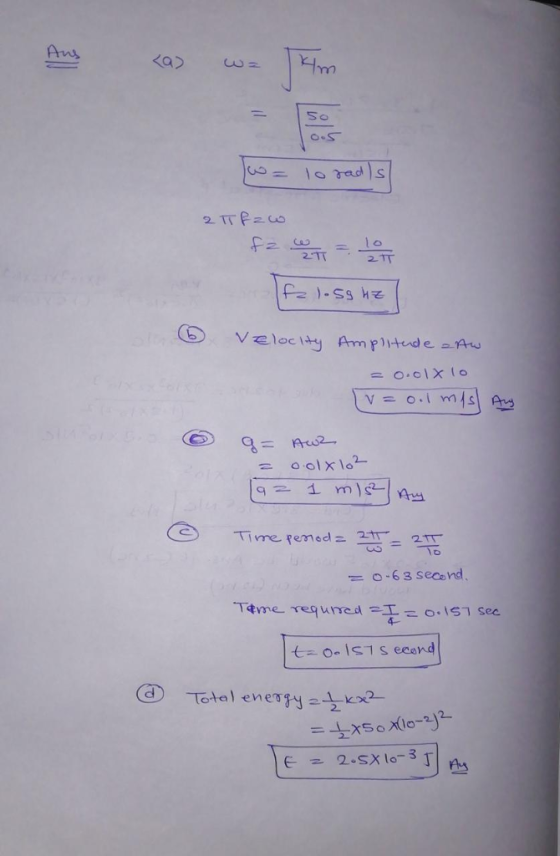

Homework Answers
Add Answer to:
The force of constant of a spring of spring pendulum is 50N/m. A block of mass...
2. A spring with constant 1.46 N/m has an unknown mass attached to it. It is...
2. A spring with constant 1.46 N/m has an unknown mass attached to it. It is pulled a set distance and released from rest. The resulting graph for position of the unknown mass as a function of time is shown below. Oscillating Mass-Spring System 08 0.6 0.4 02 position (m) 0 -02 5 -0.6 -0.8 1 time (s) a) What is the frequency? b) What is the amplitude? c) What is the angular frequency? d) What is the mass being...
A block whose mass m is 0.5 kg is fastened to a spring whose spring constant...
A block whose mass m is 0.5 kg is fastened to a spring whose spring constant is K = 12.5N/m. The block is pulled a distance 0.05 m from its equilibrium position at x = 0 on a frictionless surface and released from rest at t=0. a) Angular frequency? (Include the symbol and unit of measurement ) b) Frequency? (Include the symbol and unit of measurement ) c) Period? (Include the symbol and unit of measurement ) d) Amplitude? (Include...
A block of mass m = 6.14 kg is attached to a spring with spring constant...
A block of mass m = 6.14 kg is attached to a spring with spring constant k = 1682 N/m and rests on a frictionless surface. The block is pulled, stretching the spring a distance of 0.135 m, and is held still. The block is then released and moves in simple harmonic motion about the equilibrium position. (Assume that the block is stretched in the positive direction.) (b) Where is the block located 3.24 s after it is released? (Give...
2. A spring with constant 1.46 N/m has an unknown mass attached to it. It is...
2. A spring with constant 1.46 N/m has an unknown mass attached to it. It is pulled a set distance and released from rest. The resulting graph for position of the unknown mass as a function of time is shown below. Oscillating Mass-Spring System 1 position (m) 0.8 0.6 04 02 0 -0.2 5 -0.4 -0.8 times) a) What is the frequency? (1 point) b) What is the amplitude? (1 point) c) What is the angular frequency? (1 points) d)...
A block of mass m = 6.04 kg is attached to a spring with spring constant...
A block of mass m = 6.04 kg is attached to a spring with spring constant k = 1572 N/m and rests on a frictionless surface. The block is pulled, stretching the spring a distance of 0.170 m, and is held still. The block is then released and moves in simple harmonic motion about the equilibrium position. (Assume that the block is stretched in the positive direction.) (a) What is the frequency of this oscillation? 2.57 Hz (b) Where is...
A block of mass m is 650 g which is tied to a spring whose spring...
A block of mass m is 650 g which is tied to a spring whose spring constant is 62 N/m. The block is pulled a distance x=11 cm from its equilibrium position at x=0 on a frictionless surface and released from rest at t=0 s. What are the angular frequency, the frequency, and the period of the resulting motion? What is the amplitude of the oscillation? What is the maximum speed Vm of the oscillating block, and where is the...
A block–spring system consists of a spring with constant k=425 N/m attached to a 2.00-kg block...
A block–spring system consists of a spring with constant k=425 N/m attached to a 2.00-kg block on a frictionless surface. The block is pulled 8.00 cm from equilibrium and released from rest. For the resulting oscillation, find the (a) ampli- tude, (b) angular frequency, (c) frequency, and (d) period. What is the maximum value of the block’s (e) velocity and (f ) acceleration?
A 400 g block is attached to a spring on a frictionless horizontal surface. The block...
A 400 g block is attached to a spring on a frictionless horizontal surface. The block is pulled to stretch the spring by 7cm and then gently released. As the block passes through the equilibrium position for the first time, its velocity is 1.5 m/s. What is the amplitude and period of the oscillation?
A 5.10 kg block hangs from a spring with spring constant 1760 N/m . The block...
A 5.10 kg block hangs from a spring with spring constant 1760 N/m . The block is pulled down 6.80 cm from the equilibrium position and given an initial velocity of 1.20 m/s back toward equilibrium. A) What is the frequency of the motion? B) What is the amplitude? C)What is the total mechanical energy of the motion?
A 5.40 kg block hangs from a spring with spring constant 2020 N/m . The block...
A 5.40 kg block hangs from a spring with spring constant 2020 N/m . The block is pulled down 6.10 cm from the equilibrium position and given an initial velocity of 1.20 m/s back toward equilibrium. a. What is the frequency of the motion? b. What is the amplitude? c. What is the total mechanical energy of the motion?
2. A spring with constant 1.46 N/m has an unknown mass attached to it. It is pulled a set distance and released from rest. The resulting graph for position of the unknown mass as a function of time is shown below. Oscillating Mass-Spring System 08 0.6 0.4 02 position (m) 0 -02 5 -0.6 -0.8 1 time (s) a) What is the frequency? b) What is the amplitude? c) What is the angular frequency? d) What is the mass being...
2. A spring with constant 1.46 N/m has an unknown mass attached to it. It is pulled a set distance and released from rest. The resulting graph for position of the unknown mass as a function of time is shown below. Oscillating Mass-Spring System 1 position (m) 0.8 0.6 04 02 0 -0.2 5 -0.4 -0.8 times) a) What is the frequency? (1 point) b) What is the amplitude? (1 point) c) What is the angular frequency? (1 points) d)...
A block of mass m = 6.04 kg is attached to a spring with spring constant k = 1572 N/m and rests on a frictionless surface. The block is pulled, stretching the spring a distance of 0.170 m, and is held still. The block is then released and moves in simple harmonic motion about the equilibrium position. (Assume that the block is stretched in the positive direction.) (a) What is the frequency of this oscillation? 2.57 Hz (b) Where is...
