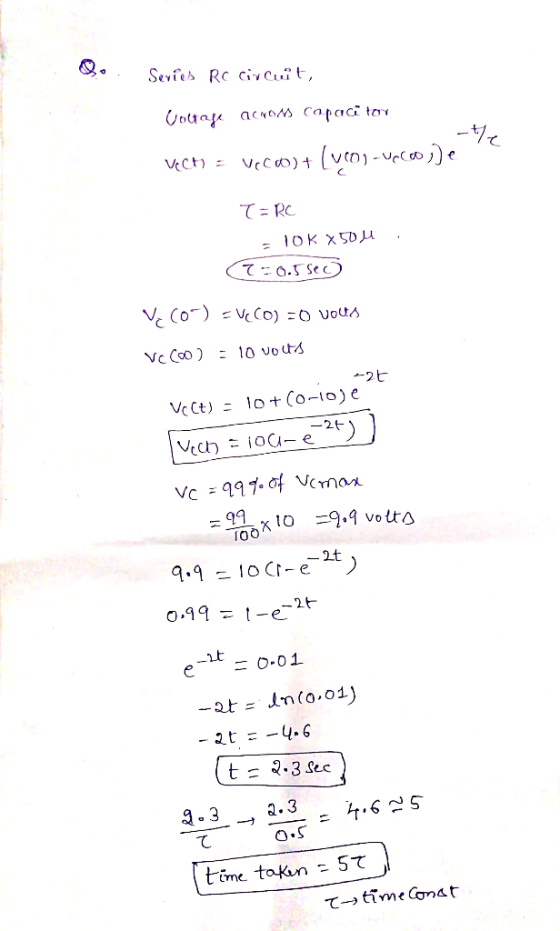

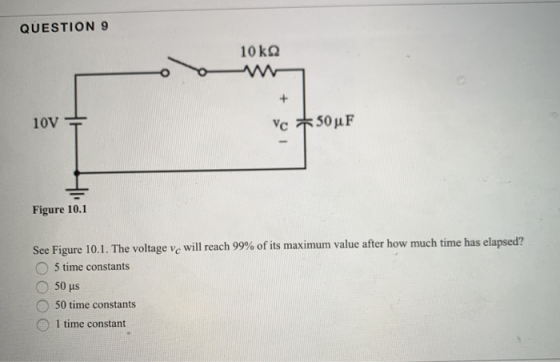

QUESTION 9 10 kn + 10V Vc50uF Figure 10.1 See Figure 10.1. The voltage ve will...
QUESTION 16 10k + 10V c 50uF Figure 10.1 Figure 10.1 See Figure 10.1. What is...
QUESTION 16 10k + 10V c 50uF Figure 10.1 Figure 10.1 See Figure 10.1. What is the time constant t for this circuit? O5s 500 ms 50 ms 5 ms QUESTION 17 Click Sqve and Submit to save and submit. Click Save All Answers to save all ansuers. ES F4 F3 F2 esc & $ # 6 5 4 3 2 7 T d
Question 10 10 pts See the circuit figure below. After the closing of the switch, what...
Question 10 10 pts See the circuit figure below. After the closing of the switch, what will the voltage across the resistor be after the voltage and current in the circuit reach a steady-state value? Assume that the inductor in this circuit is an ideal (lossless) device. 10VT 50 mH O 10 V 2.5 V
21. [2] Look at Figure 30-26 and you will see a capacitor charge and discharge curve...
21. [2] Look at Figure 30-26 and you will see a capacitor charge and discharge curve in B. for the circuit shown in A. Will the capacitor charge faster, slower or take the same time if the battery voltage in Figure 30-26A is changed from 10 volts to 20 volts and why? 1 time-constant period), the voltage act switched to DISCHARGE, the voltage Example 30-6 Assume a de voltage source of 100 Vis applied to a series RC circuit consisting...
0031 Linear Circuit Analysis Spring 2019 QUIZ 03 See Figure 5 what is the voltage across...
0031 Linear Circuit Analysis Spring 2019 QUIZ 03 See Figure 5 what is the voltage across the 5 μF capacitor, after each capacitor has charged to its final value (time inf) (i.e, circuit has reached steady state)? sten state Sou 5 AF Figure 5 seln 50 San... 50
EEEN 221-assignment 1 × ˇ 21 assignment%201%20(20 18 2019).pdf Question 6) For the circuit of Figure 6: (10 marks) a) U...
EEEN 221-assignment 1 × ˇ 21 assignment%201%20(20 18 2019).pdf Question 6) For the circuit of Figure 6: (10 marks) a) Use the superposition method to find V and 5 marks c) Deduce the power delivered by the voltage source (5 marks) j3002 2A Vo 30Ω 10V 5Ω 100 Figure 6 Question 7) (5 marks) A constant voltage at a frequency of 1 MHz is maintained across a circuit consisting of an inductor in series with a variable capacitor. When the...
Capacitor Transient R = 15 kn 204m V = 40 V C -0.01 MF Fig. 21-7...
Capacitor Transient R = 15 kn 204m V = 40 V C -0.01 MF Fig. 21-7 1. Calculate the RC time constant for charge or discharge. 2. (a) How long will it take the capacitor voltage to reach 40 V after S, has been placed in position 1? (b) What is the resistor voltage at the first instant S, is moved from position 2 to position 1? 3. What is the instantaneous value of charge current exactly two time constants...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 , and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
In Figure 9, the transformer primary voltage is 120V and step-downratiois 10:1 Assume the practical diode...
In Figure 9, the transformer primary voltage is 120V and step-downratiois 10:1 Assume the practical diode model. 9. a) i) Name the type of circuit (1 mark) Determine the peak output voltage, Volout) (4 marks) iiI What is the PIV rating required for the diodes (2 marks) D, D3 120 V psecy R Plout) 10 k2 DA Figure 9 b) A certain power supply filter produces an output with a ripple of 100mV peak-to- peak and a dc value of...
QUESTION 16 10k + 10V c 50uF Figure 10.1 Figure 10.1 See Figure 10.1. What is the time constant t for this circuit? O5s 500 ms 50 ms 5 ms QUESTION 17 Click Sqve and Submit to save and submit. Click Save All Answers to save all ansuers. ES F4 F3 F2 esc & $ # 6 5 4 3 2 7 T d
Question 10 10 pts See the circuit figure below. After the closing of the switch, what will the voltage across the resistor be after the voltage and current in the circuit reach a steady-state value? Assume that the inductor in this circuit is an ideal (lossless) device. 10VT 50 mH O 10 V 2.5 V
21. [2] Look at Figure 30-26 and you will see a capacitor charge and discharge curve in B. for the circuit shown in A. Will the capacitor charge faster, slower or take the same time if the battery voltage in Figure 30-26A is changed from 10 volts to 20 volts and why? 1 time-constant period), the voltage act switched to DISCHARGE, the voltage Example 30-6 Assume a de voltage source of 100 Vis applied to a series RC circuit consisting...
0031 Linear Circuit Analysis Spring 2019 QUIZ 03 See Figure 5 what is the voltage across the 5 μF capacitor, after each capacitor has charged to its final value (time inf) (i.e, circuit has reached steady state)? sten state Sou 5 AF Figure 5 seln 50 San... 50
EEEN 221-assignment 1 × ˇ 21 assignment%201%20(20 18 2019).pdf Question 6) For the circuit of Figure 6: (10 marks) a) Use the superposition method to find V and 5 marks c) Deduce the power delivered by the voltage source (5 marks) j3002 2A Vo 30Ω 10V 5Ω 100 Figure 6 Question 7) (5 marks) A constant voltage at a frequency of 1 MHz is maintained across a circuit consisting of an inductor in series with a variable capacitor. When the...
Capacitor Transient R = 15 kn 204m V = 40 V C -0.01 MF Fig. 21-7 1. Calculate the RC time constant for charge or discharge. 2. (a) How long will it take the capacitor voltage to reach 40 V after S, has been placed in position 1? (b) What is the resistor voltage at the first instant S, is moved from position 2 to position 1? 3. What is the instantaneous value of charge current exactly two time constants...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 , and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
In Figure 9, the transformer primary voltage is 120V and step-downratiois 10:1 Assume the practical diode model. 9. a) i) Name the type of circuit (1 mark) Determine the peak output voltage, Volout) (4 marks) iiI What is the PIV rating required for the diodes (2 marks) D, D3 120 V psecy R Plout) 10 k2 DA Figure 9 b) A certain power supply filter produces an output with a ripple of 100mV peak-to- peak and a dc value of...
