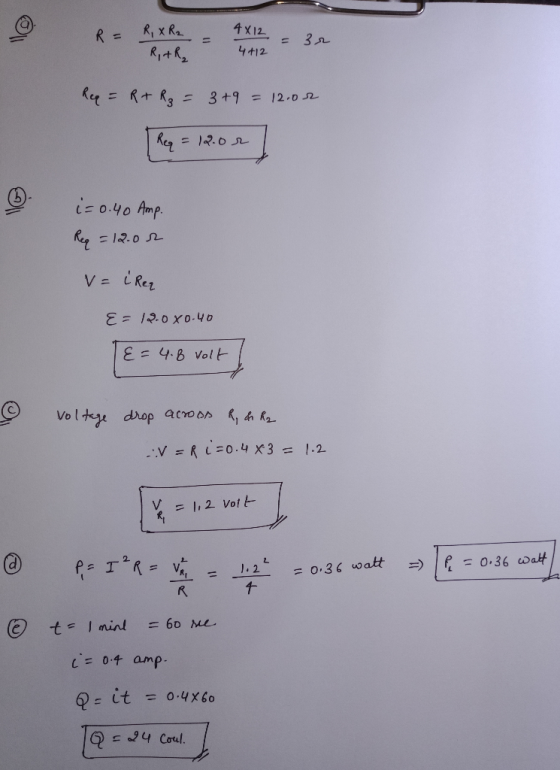

R2-12 Ω has as emf E and a negligihi enternal resistance. a Determine the equiveoat resistance...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the...
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
9) Two resistors (3 Ω and 12 Ω) are wired together in parallel with a battery....
9) Two resistors (3 Ω and 12 Ω) are wired together in parallel with a battery. A current of 0.5 A passes through the 12 Ω resistor. A) What is the total equivalent resistance? B) What is the voltage of the power supply used to operate the circuit? C) How much current passes through the 3 Ω resistor?
R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3...
R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3 = 3 Ω For each arrangement of resistors (a)-(d), find the equivalent resistance between points x and y. Show your work. i. ii. Answer the following for arrangement (d) only, the voltage difference between x and y is 12 V What is the current through each resistor, that is, what is . l2, and Iz. What is the potential difference across each resistor, that...
1.Given three resistors 59 Ω, 44 Ω, and 89 Ω in series, what is their equivalent...
1.Given three resistors 59 Ω, 44 Ω, and 89 Ω in series, what is their equivalent resistance 2.Given two resistors 66 Ω and 61 Ω in parallel, what is their equivalent resistance? 3.If a current of 1.4 A goes through a resistor with resistance 25 Ω, what is the voltage across the resistor? 4.What is the electric potential 8.6 m from a proton? 5. What is the power dissipated by a 186 Ω resistor if a 0.47 A current passes...
Consider the three resistors R1=11 Ω, R2=29 Ω, and R3=77 Ω in the configuration shown in the figure. A potential difference ΔV=3.5 V is applied between A and B
Consider the three resistors R1=11 Ω, R2=29 Ω, and R3=77 Ω in the configuration shown in the figure. A potential difference ΔV=3.5 V is applied between A and B Part (a) Express the equivalent resistance Re of the combination of R2 and R3 in terms of R2 and R3.Part (b) Express the total resistance R off the combination of all three resistors in terms of R1, R2 and R3Part (c) Calculate the numerical value ofthe total resistance R in Ω.Part (d)...
Three resistors, R1 = 24 Ω , R2 = 69 Ω , and R3=R, are connected...
Three resistors, R1 = 24 Ω , R2 = 69 Ω , and R3=R, are connected in parallel with a 12 V battery. Part A: The total current flowing through the battery is 0.88 A . Find the value of resistance R. Part B: Find the current through each resistor. Part C: If the total current in the battery had been greater than 0.88 A , would your answer to part A have been larger or smaller?
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the...
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; t.e. Req1] in Ohms ) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals; L.e. [itot1) in Amps. (c) Find the voltage across and the current through each resistor; L.e. R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
Six identical resistors, each with resistance R, are connected to an emf E. A)What is the...
Six identical resistors, each with resistance R, are connected to an emf E. A)What is the current I through each of the resistors if they are connected in parallel? Express your answer in terms of the variables E and R. B)If they are connected in series? Express your answer in terms of the variables E and R. C)For which network of resistors, series or parallel, is the power consumed in each resistor greater? For which network of resistors, series or...
A circuit is constructed with five resistors and one real battery as shown above right. We...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
IP Three resistors, R1 = 15 Ω , R2 = 62 Ω , and R3=R, are...
IP Three resistors, R1 = 15 Ω , R2 = 62 Ω , and R3=R, are connected in series with a 24.0 V battery. The total current flowing through the battery is 0.15 A . Find the value of resistance R. Find the potential difference across each resistor.
Three resistors, R1 2.0 Ω, R2:4.0 Ω, and R3:6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; .e. [Req1] in Ohms. (b) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals: L.e. [Itot1] in A (c) Find the voltage across and the current through each resistor; L.e R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
R2 R1 R3 Equivalent Resistance and current (10 pts) 1. R1 = 4 Ω R2-50 R3 = 3 Ω For each arrangement of resistors (a)-(d), find the equivalent resistance between points x and y. Show your work. i. ii. Answer the following for arrangement (d) only, the voltage difference between x and y is 12 V What is the current through each resistor, that is, what is . l2, and Iz. What is the potential difference across each resistor, that...
Three resistors, R1-2.0 Ω, R2-4.0 Ω, and R3 6.0 Ω are connected as shown in the figure below. For Circuit 1 (left), (a) Find the equivalent resistance of the combination; t.e. Req1] in Ohms ) Find the current that passes through the combination if a potential of 8.0 V is applied to the terminals; L.e. [itot1) in Amps. (c) Find the voltage across and the current through each resistor; L.e. R1: Voltage: [VR11] V and Current: [IR11] A R2: Voltage:...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
