Question

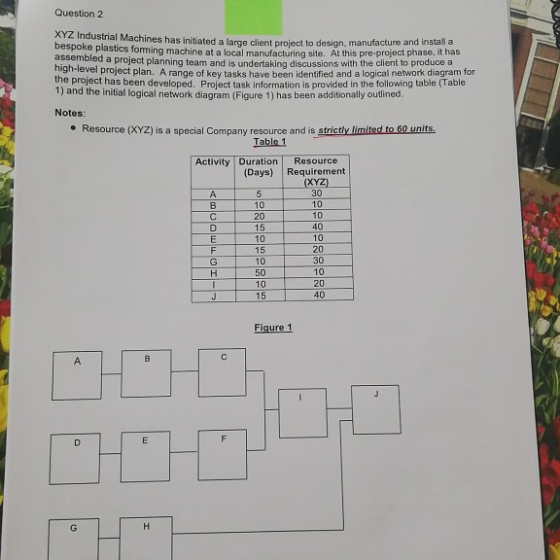

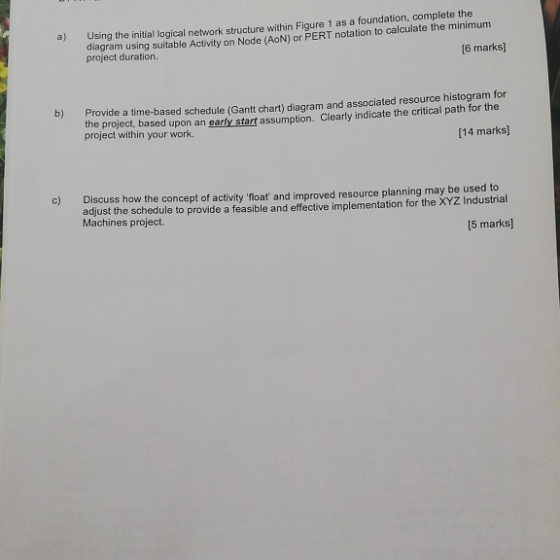

Question 2 XYZ Industrial Machines has initiated a large client project to design, manufacture and instal a spoke plastics forming machine at a local manufacturing site. At this pre-project phase, it has sembled a project planning team and is undertaking discussions with the client to produce a mgheve pct plan. A range of key tasks have been identified and a logical network diagram for high-level the project has been developed. Project task information is provided in the following table (Table as ) and the initial logical network diagram (Figure 1) has been additionally outlined Notes pecal Compary rangre ans Resource OrZ) Activity DurationResource (Days) Requirement 30 10 10 40 10 20 30 10 20 40 10 20 15 10 15 10 50 10 15

Answer 1

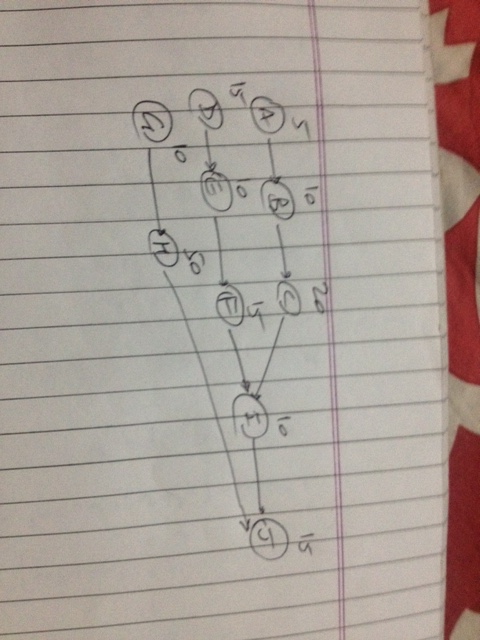

Critical path is GHJ with duration 75.

Resource allocation schedule.

Days	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75
Activity	A	B	B	C	C	C	C				I	I
Activity	G	G	H	H	H	H	H	H	H	H			J	J	J
Activity			D	D	D	E	E	F	F	F
Resources	60	40	60	60	60	30	30	30	30	30	20	20	40	40	40

Gantt chart

Days	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75
J
I
H
G
F
E
D
C
B
A

(c) This project has a constraint, which is the availability of resource XYZ which is limited to 60. This constraint makes it possible to schedule only those activities in each period which have a total resource requirement less than or equal to 60. The float in each activity, which is not on critical path is used to delay it by some duration to satisfy the constraint of availability of XYZ and still complete the project within stipulated 75 days, as shown in the resource chart.
