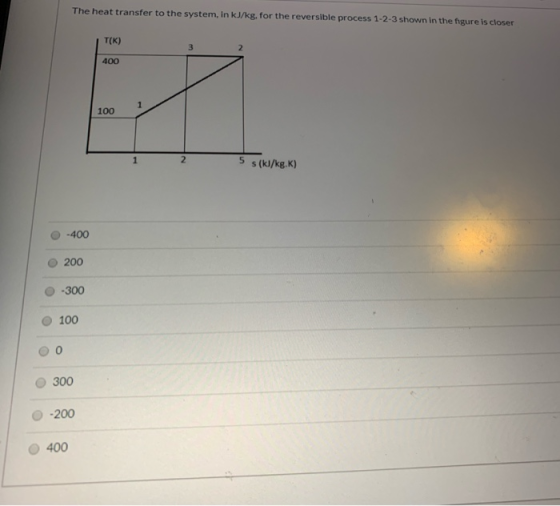

The heat transfer to the system, in kJ/kg, for the reversible process 1-2-3 shown in the...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

(dq=JT ds 1.t area of Tds graphy dq = (100+400) y 3x400 da = 1000- 1200 -200 11] 4. = -200 kg ks

ANSWER = - 200kj/kg

PLEASE DO POST COMMENTS IF YOU HAVE ANY DOUBT. PRESS THUMBS UP IF YOU LIKE THE ANSWER AND THE EFFORT.

THANKS

Answer 2
