find power across each line 120/60° V 2.22 1.6 mH a o A 100 120/-60° V...

Question

Question

120/60° V 2.22 1.6 mH a o A 100 120/-60° V b 292 1.6 mH B 1002 10 mH 10 ml N 100 120/180° V 10 ml C 22 1.6 mH с

find power across each line

engineering Electrical-Engineering

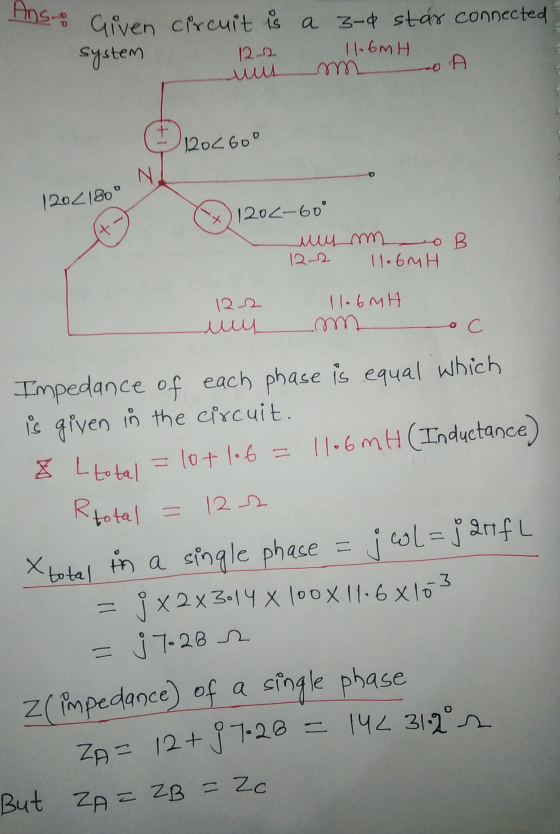

Answer 1

Answer #1

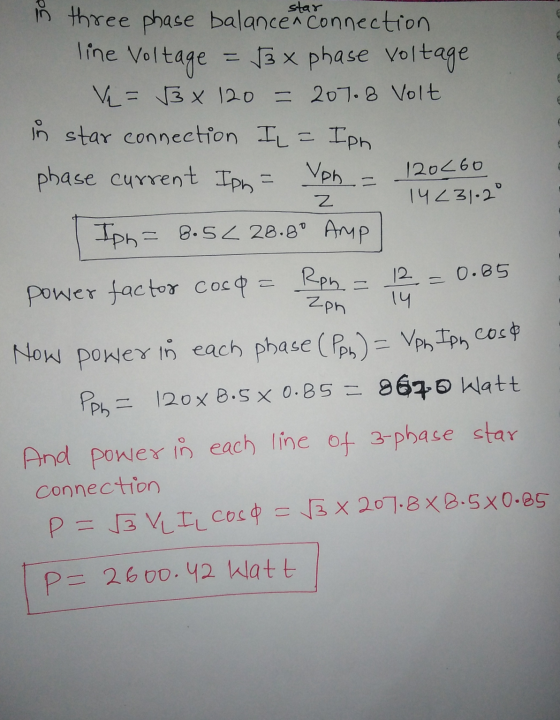

line Voltage in three phase balances to connection = 13 x phase Voltage V = 3 x 120 = 207.8 Volt in star connection I = Iph p

Answer 2
