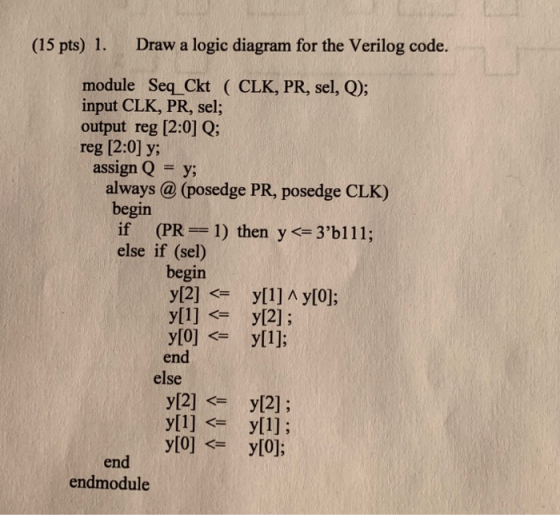

(15 pts) 1. Draw a logic diagram for the Verilog code. module Seq_Ckt ( CLK, PR, sel, Q); input CLK, PR, sel; output reg [2:0
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

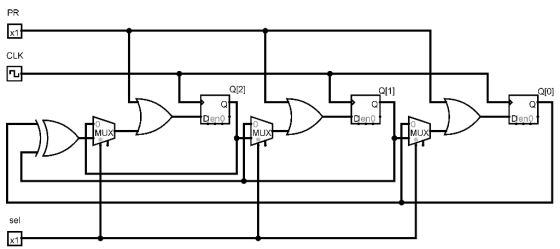

012) Q101 Deno Deno Deno MUX

0 0
Add a comment
Know the answer?
Add Answer to:
(15 pts) 1. Draw a logic diagram for the Verilog code. module Seq_Ckt ( CLK, PR,...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Please explain what he verilog code does: module lab7_2_3( input clk, input Enable, input Clear, input...

    Please explain what he verilog code does: module lab7_2_3( input clk, input Enable, input Clear, input Load, output [3:0] Q, reg [3:0] count,      wire cnt_done );             assign cnt_done = ~| count;     assign Q = count;     always @(posedge clk)          if (Clear)              count <= 0;          else if (Enable)          if (Load | cnt_done)          count <= 4'b1010; // decimal 10          else          count <= count - 1; Endmodule

  • Given the following verilog code, draw the corresponding state diagram for it. module mysterious (input reset,...

    Given the following verilog code, draw the corresponding state diagram for it. module mysterious (input reset, clk, TB, TA, output reg [1:0] LB, LA); reg [1:0] cstate, nstate; parameter S0 = 2'b00; parameter S1 = 2'b01; parameter S2 = 2'b10; parameter S3 = 2'b11; parameter grn = 2'b00; parameter ylw = 2'b01; parameter rd = 2'b10; // state register always @ (posedge clk, posedge reset) begin if (reset) cstate <= S0; else cstate <= nstate; end // next state logic...

  • Question 3: Realize the circuit below using Verilog. Include a signal “reset_n” for asynchronously clearing the...

    Question 3: Realize the circuit below using Verilog. Include a signal “reset_n” for asynchronously clearing the flip-flop. What type of circuit is this? Complete the following Verilog code. Write a test bench to test it. clk sel module aff (clk, reset_n, sel, q); input clk ; // Declare the inputs and outputs of the module. input reset_n; input sel; output q; reg q; wire D; ; // model the combinational logic assign D= always @( begin if ( else end...

  • 3. Answer the question below for the following code. module Shift_Register8 (Q, Data_in, Clk, Load, Shift_left,...

    3. Answer the question below for the following code. module Shift_Register8 (Q, Data_in, Clk, Load, Shift_left, Shift_right); output [ 7:0] Q; reg [7:0] Q; input [7:0] Data_in; input Clk, Load, Shift_left, Shift_right; always @ (posedge Clk) if (Load) Q<= Data_in; else case ( { Shift_left, Shift_right }) 2'600: if (Clk == 1) Q<=Q; 2'b01: if (Clk == 1) Q<= >> 1; 2'b10: if (Clk == 1) Q<=Q<< 1; default: Q<=Q; endcase endmodule a) What does reg (7:0] Q do? b)...

  • Write a testbench for use in Quartus' ModelSim Altera in verilog for the following code of...

    Write a testbench for use in Quartus' ModelSim Altera in verilog for the following code of a 4x16 register: module regFile4x16 (input clk, input write, input [2:0] wrAddr, input [15:0] wrData, input [2:0] rdAddrA, output [15:0] rdDataA, input [2:0] rdAddrB, output [15:0] rdDataB); reg [15:0]    reg0, reg1, reg2, reg3; assign rdDataA = rdAddrA == 0 ? reg0 :        rdAddrA == 1 ? reg1 :        rdAddrA == 2 ? reg2 :        rdAddrA == 3...

  • I need help writing a test bench for the following Verilog code module CU(IE, WE, WA,...

    I need help writing a test bench for the following Verilog code module CU(IE, WE, WA, RAE, RAA, RBE, RBA, ALU,                SH, OE, start, clk, reset, Ng5); //nG5 denotes (N>5);    input start, clk, reset;    output IE, WE, RAE, RBE, OE;    output [1:0] WA, RAA, RBA, SH;    output [2:0] ALU;       input wire Ng5;    reg [1:0] state;    reg [1:0] nextstate;    parameter S0 = 3'b000;    parameter S1 = 3'b001;...

  • why its 4-to-1 mux behavioral? What does the logic circuit represented by the following Verilog module...

    why its 4-to-1 mux behavioral? What does the logic circuit represented by the following Verilog module do, and what Verilog description style does it use? // My Verilog module #1 module mymodl ( x, d, q) input[1:0] x;input[3:0] d;output q; reg q; wire [1:0] x; wire [3:0] d; always ( x or d) begin case ( x ) 1 : q=d[1]; 2 : g=d[2]; 3 q d[3]; endcase end endmodule

  • Write a testbench for LFShift shift register example module 1f3r input clk, input reset, output a...

    Write a testbench for LFShift shift register example module 1f3r input clk, input reset, output a ); reg (5:0] shift; wire xor_sum; assign xor_sum = shift[1] ^ shift[4]; // feedback taps always @ (posedge clk) if (reset) shift <= 6'b111111; // initialize LFSR else shift <= { xor_sum, shift [5:1] }; // shift right assign a = shift[0]; // output of LFSR endmodule

  • Write a test bench to thoroughly test the Verilog module dff_fe_asyn_h. below is the module ddff_fe_asyn_h.code...

    Write a test bench to thoroughly test the Verilog module dff_fe_asyn_h. below is the module ddff_fe_asyn_h.code Simulate the circuit using ISim and analyze the resulting waveform. Verilog Code for dff_fe_asyn_h is mentioned below:- //DFF module with asynchronous active high reset with negative edge trigger with clock module dff_fe_asyn_h ( input clock, // Clock Input input reset, // Reset Input input data_in, // Input Data output reg data_out // Output Data ); always @ (negedge clock or posedge reset) // triggers...

  • a Read the following codes in Verilog and the corresponding testbench file. Describe what the codes...

    a Read the following codes in Verilog and the corresponding testbench file. Describe what the codes are doing by adding comments in the code. Then write down the simulation results of res1, res2, res3, and res4, respectively. Source code module vector_defn (num1, res1, res2, res3, res4); input [7:0] num1; output res1; output [3:0] res2; output [0:7] res3; output [15:0] res4; assign res1=num1[2]; assign res2=num1[7:4]; assign res3=num1; assign res4={2{num1}}; endmodule testbench: `timescale 1ns / 1ps module vector_defn_tb; reg [7:0] in1; wire...
