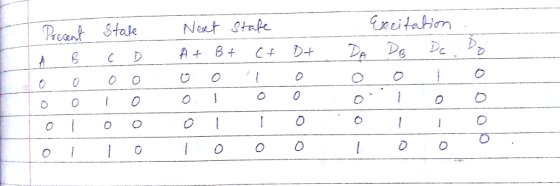

•Design a counter with repeated binary sequence 0,2,4,6,8 make the table
•From the table you made find the expression for the flip flop input.

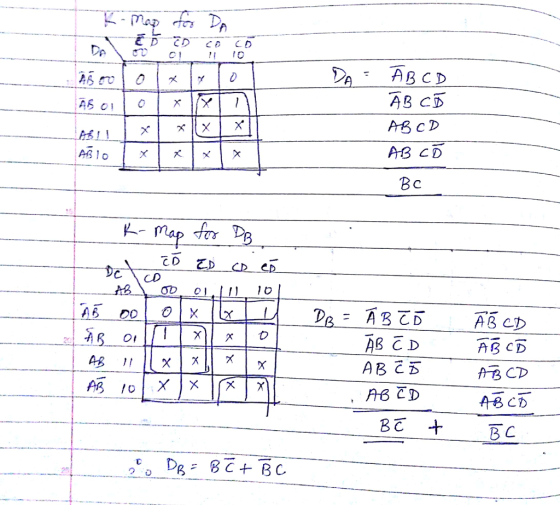

•Draw the Kamaugh map for the flip flop Da,Db,Dc,Dd

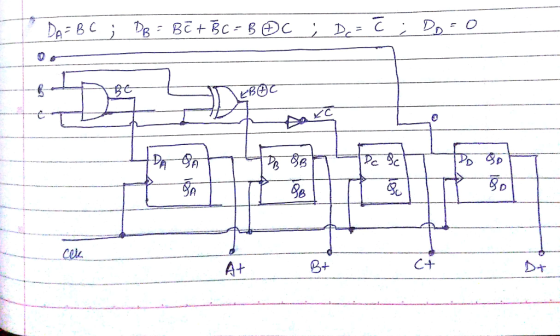

•Draw the logic diagram for the required counter.
Please use the picture provided and write neat and clear as
possible. Thank you

•Design a counter with repeated binary sequence 0,2,4,6,8 make thetable•From the table you made...
3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop. 4. Design a counter to count with T flip-flops that goes through the following binary repeated sequence: 0,1,3,7,6,4. Find out the counter response towards the unused state. Illustrate the response with a state diagram. 5. Design a mod-7 counter (repeat binary sequence: 0,1,2,3,4,5,6) use JK flip-flop.
14?
14. Design a cyclic counter that produces the binary sequence 0, 2, 3,1. o..if the control signal X is 0 but produces the binary sequence 0, 1,3,2.0, if the control signal X is1.Use D flip-flops. (a) Draw the state diagram; (6 points (b) Draw the input, present state-next state, excitation table: (6 points) (c) Derive the minimal SOP expressions for the D inputs of the flip-flops using K-maps. Draw the logic circuit realization of the counter, using only NAND...
Design a 4-bit binary up counter (like the following state diagram) using JK flip flops. State diagram. 0000 0001 11111 (a) Draw the state table with the input values for J K flip flops(b) Simplify the input equations by K map (c) Draw the logic diagram
Using SR Flip-Flope, design a binary counter with a repeated sequence as follows: 0,1,2,3,4,5,6
Design a Binary Counter with the repeating sequence of 100 - 110 - 111 - 011 - 001 - 000 using T Flip-Flops. Find the input expressions of the T Flip-Flops by K-Map.
design a serial even parity generator, a binary sequence of arbitrary length will be presented to the partity generator circuit on input x. when a given bit is presented on input x, the corresponding even parity bit is to appear during the same clock cycle on output z. to indicate that a sequence is complete and that the circuit is to be initialized to receive another sequence, the input Y becomes 1 for one clock cycle. draw the state diagram...
Design a 3-bit down counter FSM with no inputs and three outputs. Do this using a T flip flop. a. Draw a state diagram and the corresponding state table. b. Derive the equations for output functions and flip-flop input functions c. Draw the logic circuit diagram
Design a two-bit up/down binary counter using D flip-flops that can count in binary from 0 to 7. When the control input x is 0, the circuit counts down, and when it is 1, the circuit counts up. (a) Obtain the state table of the two-bit counter. (b) Obtain the state diagram (c) Draw the logic diagram of the circuit.
(2) Design a counter with the following repeated binary sequence: 0,2,3,4,6. Use D flip-flops. Note: Do verification if your circuit has some unused states.
Q1. Sequence Generator with flip-flop, counters 1. Use the minimum number of D flip-flops and logic gates to design a counter that produces the following repeated sequence: “0,1,3,5,6,7,0...” and gives an output of 1 when it reaches 7. (a) Show the state-table of the counter. (b) Show and simplify the K-Map for each flip-flop. (c) Implement the circuit derived in (b).
