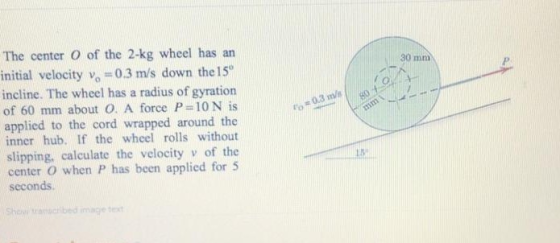

i need part b:
If at this instant, the wheel starts to slip, find the value of the
STATIC coefficient of friction.
Homework Answers
Add Answer to:
i need part b:
If at this instant, the wheel starts to slip, find the value...
The wheel shown in the diagram starts from rest under the application of the constant force...
The wheel shown in the diagram starts from rest under the
application of the constant force P=10 N. The wheel has a mass of
m=3 kg and a radius of gyration about its center of mass of and
kinetic coefficients of friction between the wheel and the inclined
plane are At the instant shown, the center of the wheel, G, has a
speed of 2 m/s. . The static and . (4 marks) (5 marks) (7 marks) (4
marks) a)...
The mass of the symmetrical wheel shown below is m = 4 kg and its radius...
The mass of the symmetrical wheel shown below is m = 4 kg and its radius of gyration about its center is kg = 0.25 m. The outer radius of the wheel is r2 = 0.4 m. The radius of the inner hub, where a cable is wrapped around it, is rı = 0.2 m. The wheel rolls without slipping. The force P, applied to the cable, is increased slowly according to the linear relation P = at, where P...
I. PROBLEM SOLVING (20 pts each) und wheel rolls without a 20 inches b 40 inches slipping on the ...
I. PROBLEM SOLVING (20 pts each) und wheel rolls without a 20 inches b 40 inches slipping on the inner hub of the wheel, which has a radius of 20 inches. If the angular velocity of the wheel is 4 rad/sec counterclockwise, determine the velocity of point B. Use Chasles Theorem only. b 30 Za
I. PROBLEM SOLVING (20 pts each) und wheel rolls without a 20 inches b 40 inches slipping on the inner hub of the wheel, which...
The wheel consists of a 2.6-kg rim of 420-mm radius with hub and spokes of negligible mass. The w...
The wheel consists of a 2.6-kg rim of 420-mm radius with hub and
spokes of negligible mass. The wheel is mounted on the 3.7-kg yoke
OA with mass center at G and with a radius of
gyration about O of 495 mm. If the assembly is released
from rest in the horizontal position shown and if the wheel rolls
on the circular surface without slipping, compute the velocity of
point A when it reaches A'.
Answer: vA =
m/s
420...
A wheel rolls up a 3.5m hill without slipping. The wheel has a mass of 20kg,...
A wheel rolls up a 3.5m hill without slipping. The wheel has a mass of 20kg, a radius of 0.4 m and a radius of gyration of 0.3m. What is the minimum required speed of the center of the wheel (ve) at the bottom o the hill, so that it will make it to the top of the hill? Wheel: R 0.4 m k 0.3 m m 20 kg 3.5 m ve? 4. Piston B is confined to move in...
The 17-kg wheel has an eccentric mass which places the center of mass G a distance...
The 17-kg wheel has an eccentric mass which places the center of
mass G a distance r¯ = 142 mm away from the geometric
center O. A constant couple M = 11.8 N∙m is
applied to the initially stationary wheel, which rolls without
slipping along the horizontal surface and enters the curve of
radius R = 1110 mm. Determine the normal force
NC under the wheel just before it exits the
curve at C. The wheel has a rolling radius...
due in 30 min 8. (10 points) Picture taken from problem 19-21. The spool has a...
due in 30 min
8. (10 points) Picture taken from problem 19-21. The spool has a weight of 30 lb and a radius of gyration ko=0.45 ft. A cord is wrapped around the spool's inner hub and the end of the chord is subjected to a horizontal force P = 5 lb. Assume the spool rolls and slips. The coefficient of friction between the spool and the ground is uk = 0.1. Determine the spool's angular velocity in 4 s...
A me=30-kg reel is mounted on top of a cart using a frictionless bearing at its...
A me=30-kg reel is mounted on top of a cart using a frictionless bearing at its shaft 0. The shaft is centered on the cart wheel base: H=400 mm, W=500 mm. The reel radius of gyration about the shaft through its mass center O is ko=250 mm. The cart's mass is me=40-kg with a center of gravity 80 mm above the base platform underneath 0. The cart rolls on idealized wheels whose dimensions are negligible. Starting from rest, the cable...
a= 797.5 mm r= 735.5 mm b= 1476 mm Note: For all problems, solution approach must...
a= 797.5 mm
r= 735.5 mm
b= 1476 mm
Note: For all problems, solution approach must be given. Refer the data sheet for the values of variables) r mm Q1) Mass of wheel A is 4 kg and is fitted on the arm AO which has a mass of 3kg. The mass centre of the arm is G. Radius of gyration of the arm about O is 0.35 m. The assembly is released from rest in the horizontal position and...
Please answer the following question clearly < Problem Assignment No. 7 Kinetic Energy 1 of 25...
Please answer the following question clearly
< Problem Assignment No. 7 Kinetic Energy 1 of 25 Part A- Kinetic Energy of a Pulley and Weight System Learning Goal: To understand the kinetic energy of a rigid body undergoing translational motion, rotation about a fixed axis, or general motion in the plane. No c Consider the pulley and weight system shown in the figure. (Figure 2) The pulley has mass 14.0 kg, outer radius R -190 mm, inner radius Ri- 140...
The wheel shown in the diagram starts from rest under the
application of the constant force P=10 N. The wheel has a mass of
m=3 kg and a radius of gyration about its center of mass of and
kinetic coefficients of friction between the wheel and the inclined
plane are At the instant shown, the center of the wheel, G, has a
speed of 2 m/s. . The static and . (4 marks) (5 marks) (7 marks) (4
marks) a)...
The mass of the symmetrical wheel shown below is m = 4 kg and its radius of gyration about its center is kg = 0.25 m. The outer radius of the wheel is r2 = 0.4 m. The radius of the inner hub, where a cable is wrapped around it, is rı = 0.2 m. The wheel rolls without slipping. The force P, applied to the cable, is increased slowly according to the linear relation P = at, where P...
I. PROBLEM SOLVING (20 pts each) und wheel rolls without a 20 inches b 40 inches slipping on the inner hub of the wheel, which has a radius of 20 inches. If the angular velocity of the wheel is 4 rad/sec counterclockwise, determine the velocity of point B. Use Chasles Theorem only. b 30 Za
I. PROBLEM SOLVING (20 pts each) und wheel rolls without a 20 inches b 40 inches slipping on the inner hub of the wheel, which...
The wheel consists of a 2.6-kg rim of 420-mm radius with hub and
spokes of negligible mass. The wheel is mounted on the 3.7-kg yoke
OA with mass center at G and with a radius of
gyration about O of 495 mm. If the assembly is released
from rest in the horizontal position shown and if the wheel rolls
on the circular surface without slipping, compute the velocity of
point A when it reaches A'.
Answer: vA =
m/s
420...
A wheel rolls up a 3.5m hill without slipping. The wheel has a mass of 20kg, a radius of 0.4 m and a radius of gyration of 0.3m. What is the minimum required speed of the center of the wheel (ve) at the bottom o the hill, so that it will make it to the top of the hill? Wheel: R 0.4 m k 0.3 m m 20 kg 3.5 m ve? 4. Piston B is confined to move in...
The 17-kg wheel has an eccentric mass which places the center of
mass G a distance r¯ = 142 mm away from the geometric
center O. A constant couple M = 11.8 N∙m is
applied to the initially stationary wheel, which rolls without
slipping along the horizontal surface and enters the curve of
radius R = 1110 mm. Determine the normal force
NC under the wheel just before it exits the
curve at C. The wheel has a rolling radius...
due in 30 min
8. (10 points) Picture taken from problem 19-21. The spool has a weight of 30 lb and a radius of gyration ko=0.45 ft. A cord is wrapped around the spool's inner hub and the end of the chord is subjected to a horizontal force P = 5 lb. Assume the spool rolls and slips. The coefficient of friction between the spool and the ground is uk = 0.1. Determine the spool's angular velocity in 4 s...
A me=30-kg reel is mounted on top of a cart using a frictionless bearing at its shaft 0. The shaft is centered on the cart wheel base: H=400 mm, W=500 mm. The reel radius of gyration about the shaft through its mass center O is ko=250 mm. The cart's mass is me=40-kg with a center of gravity 80 mm above the base platform underneath 0. The cart rolls on idealized wheels whose dimensions are negligible. Starting from rest, the cable...
a= 797.5 mm
r= 735.5 mm
b= 1476 mm
Note: For all problems, solution approach must be given. Refer the data sheet for the values of variables) r mm Q1) Mass of wheel A is 4 kg and is fitted on the arm AO which has a mass of 3kg. The mass centre of the arm is G. Radius of gyration of the arm about O is 0.35 m. The assembly is released from rest in the horizontal position and...
Please answer the following question clearly
< Problem Assignment No. 7 Kinetic Energy 1 of 25 Part A- Kinetic Energy of a Pulley and Weight System Learning Goal: To understand the kinetic energy of a rigid body undergoing translational motion, rotation about a fixed axis, or general motion in the plane. No c Consider the pulley and weight system shown in the figure. (Figure 2) The pulley has mass 14.0 kg, outer radius R -190 mm, inner radius Ri- 140...
