Electrons with energies 1eV and 2eV are incident on a barrier of height 5eV and 0.5nm......

Question

Question

Electrons with energies 1eV and 2eV are incident on a barrier of height 5eV and 0.5nm...

3. Electrons with energies 1 eV and 2 eV are incident on a barrier of height 5 eV and 0.5 nm doubled in width?

science Advanced-Physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

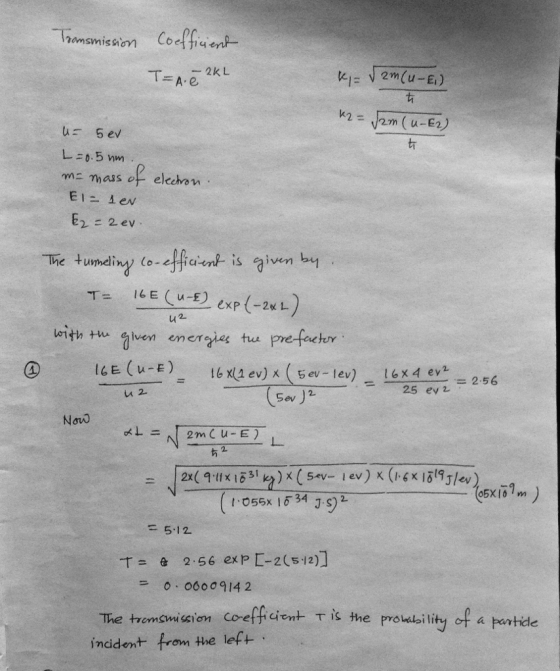

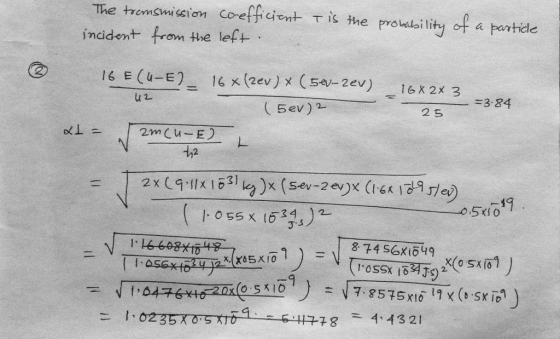

omsmissnon C6e The tumeliny lo-effaenh isiven by ILE ( u-E exp -2 lwith tw glven emeres tue Pre 16E (u-E)-16x(1 ev) x (bev-le The tomswussion coefficient TlS the pro aki lity of a ㅑmticle incident from the lef+ 3:84 ( Sev) 2 2 5 | 2x(9.llx103) ka )x (

Add a comment

Answer 2

Similar Homework Help Questions

Electrons with energies 1 eV and 2 eV are incident on a barrier of height 5...

Electrons with energies 1 eV and 2 eV are incident on a barrier of height 5 eV and 0.5 nm wide. Find their respective transmission probabilities. How are these affected if the barrier is doubled in width?
plz hlp Tunneling An electron of energy E = 2 eV is incident on a barrier...

plz hlp Tunneling An electron of energy E = 2 eV is incident on a barrier of width L = 0.61 nm and height Vo-3 eV as shown in the figure below. (The figure is not drawn to scale.) 1) What is the probability that the electron will pass through the barrier? The transmission probability is 0 SubmitHelp 2) Lets understand the influence of the exponential dependence. If the barrier height were decreased to 2.8 eV (this corresponds to only...
A beam of electrons with 100 eV of energy reach a barrier of height 100.5 eV...

A beam of electrons with 100 eV of energy reach a barrier of height 100.5 eV and width 1 pm. If 10 mA of current is reflected off the barrier, what was the incident current of the beam?

Let 12.0 eV electrons approach a potential barrier of height 2.8 eV. (a) For what minimum...

Let 12.0 eV electrons approach a potential barrier of height 2.8 eV. (a) For what minimum barrier thickness is there no reflection? .................................. nm (b) For what minimum barrier thickness is the reflection a maximum? ................................... nm please answer the quesion
A H-atom is in an excited state represented by a dot. What are the possible energies...

A H-atom is in an excited state represented by a dot. What are the possible energies of emitted photons? 10.se -3.4ev -13.6V 0.65 eV, 0.85 eV 0.85 eV, 1.9eV 3.4 eV, 1.9 eV 1.9 eV, 10.2eV 1.9 eV, 10.2eV, 12.1eV QUESTION 2 3.4ev A 12.0 eV electron collides with an H-atom in its ground state. What is the energy of the electron after the collision? -13.6ev 12.0 eV 10.5 eV 8.6 eV 1.8 eV 1.6 eV QUESTION 3 A collection...
Electrons are fired at a rectangular potential energy barrier, once every 197 ms. If the barrier...

Electrons are fired at a rectangular potential energy barrier, once every 197 ms. If the barrier is 2.55 nm thick and has a height that exceeds the energy of the incident electrons by exactly 537 meV, how long on average would you expect to wait for one electron to pass through the barrier? Electrons are fired at a rectangular potential energy barrier, once every 197 ms. If the barrier is 2.55 nm thick and has a height that exceeds the...

You have a double barrier structure where Barrier 1 that is to the left is 1...

You have a double barrier structure where Barrier 1 that is to the left is 1 nm thick, and 2 eV high. Attached to it is barrier 2 that is to the right, which is also 1 nm thick, but 1 eV high. An electron is incident from the left with energy 0.5 eV. Calculate the tunneling probability.
Electrons are fired at a rectangular potential energy barrier, once every 341 ms. If the barrier ...

Electrons are fired at a rectangular potential energy barrier, once every 341 ms. If the barrier is 2.55 nm thick and has a height that exceeds the energy of the incident electrons by exactly 512 meV, how long on average would you expect to wait for one electron to pass through the barrier Number 1.86 x 105 seconds Electrons are fired at a rectangular potential energy barrier, once every 341 ms. If the barrier is 2.55 nm thick and has...
Electrons are fired at a rectangular potential energy barrier, once every 245 ms. If the barrier...

Electrons are fired at a rectangular potential energy barrier, once every 245 ms. If the barrier is 2.55 nm thick and has a height that exceeds the energy of the incident electrons by exactly 612 meV, how long on average would you expect to wait for one electron to pass through the barrier?

Electrons are fired at a rectangular potential energy barrier, once every 245 ms. If the barrier...

Electrons are fired at a rectangular potential energy barrier, once every 245 ms. If the barrier is 2.55 nm thick and has a height that exceeds the energy of the incident electrons by exactly 537 meV, how long on average would you expect to wait for one electron to pass through the barri Number seconds
