draw a block diagram of the circuit represented by the vhdl code listed below. be sure to completely label the final diagram

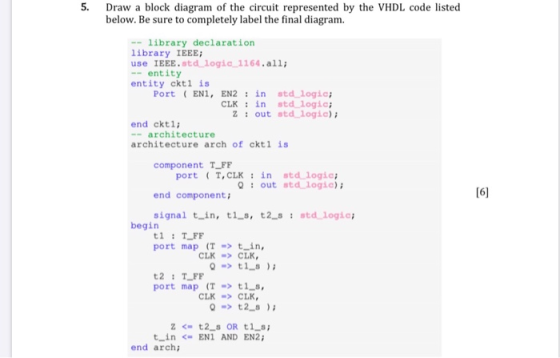

Draw a block diagram of the circuit represented by the VHDL code listed below. Be sure to completely label the final diagram.
0 0
Add a comment Improve this question Transcribed image text
Answer #1

The following VHDL code has two inputs EN1 and EN2

one clock input and one output is z.

It has two T flip-flops are port mapped as shown in the below diagram.

Each flip-flop has one inout T

and clock input CLK and one output Q

First flip flop input is connected through a AND gate with inputs EN1 and EN2.

First flip-flop input is connected to the second flip-flop input and

Out put z is taken from OR gate with inputs t1_s and t2_s which are outputs of two flips.

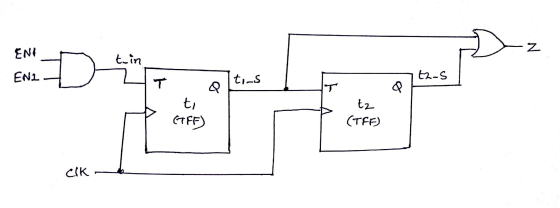

The digram is shown in the below figure.

ENI t.in tz-s ENI- @Itins & ti . tz (TFF) (TFF) cik -
