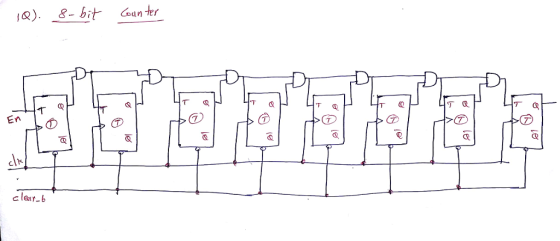

Part I Consider the circuit in Figure 1. It is a 4-bit synchronous counter (text Section 5.9.2) that uses four T-type flip- flops (text Section 5.5). The counter increments its value on each positive edge of the clock if the Enable signal is asserted. The counter is reset to 0 by setting the Clear b signal low - it is an active-low asynchronous clear. You are to implement an 8-bit counter of this type Enable T Q T Q Clock Q Clear b Figure 1: A 4-bit counter. Perform the following steps: 1. Draw the schematic for an 8-bit counter using the same structure as shown in Figure 1 2. Write a Verilog module for a Ttype flip flop (text Section 5.5). 3. Write the Verilog module corresponding to your schematic. Your code should use your T-type flip-flop module that is instantiated eight times. 4. Simulate your circuit to verify its correctness.

please give the verilog code and explain in the form of comments.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

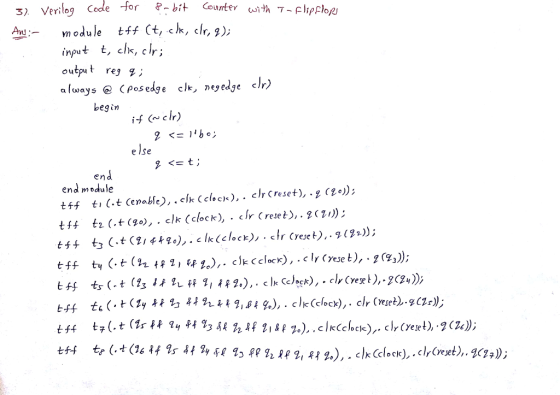

Answer #1

c)eav

0 0
Add a comment
