code:
module VrDnegEC(rst,en,clk,d,q);
input rst,clk,d,en;
output q;
reg q;
always @(negedge clk)
begin
if(en==1)
begin
if(rst==0)
q<=0;
else
q<=d;
end
else
q<=0;
end
endmodule
module test;
reg rst,clk,d,en;
wire q;
VrDnegEC uut(rst,en,clk,d,q);
initial
begin
rst=0;
#10 rst=1;d=1;en=1;
#10 rst=1;d=0;en=1;
#10 rst=1;d=0;en=1;
#10 rst=1;d=1;en=1;
#10 rst=1;d=1;en=1;
#10 rst=1;d=0;en=1;
#10 rst=1;d=0;en=1;
#10 rst=1;d=1;en=1;
end
initial
begin
clk=1;
forever #10 clk=~clk;
#100 $stop;
end
endmodule

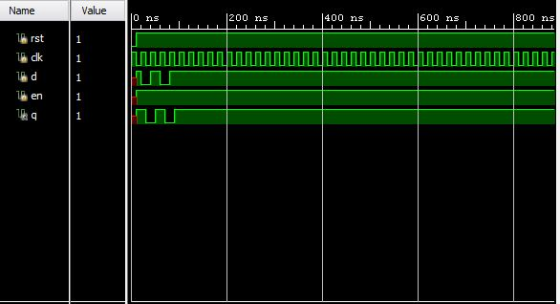

simulation:

10.21 Write a behavioral Verilog module vrDnegEc for a negative-edge-triggered D flip-flop with enable and asynchronous...
Problem 1. a) Write a behavioral model of J-K flip-flop with active-low asynchronous reset. b) Write a proper test-bench and stimulus, thoroughly test your J-K-FlipFlop. Also, show your waveform and describe why your JK-FF does what is is designed to do. Problem 2. a) Write a Verilog module that will assert its output if a 4-bit input binary word is even. b) Show the waveform for two input patterns “1100” and “0101”
Problem 1. a) Write a behavioral model of J-K flip-flop with active-low asynchronous reset. b) Write a proper test-bench and stimulus, thoroughly test your J-K-FlipFlop. Also, show your waveform and describe why your JK-FF does what is is designed to do. Problem 2. a) Write a Verilog module that will assert its output if a 4-bit input binary word is even. b) Show the waveform for two input patterns “1100” and “0101”
Write the verilog code that implements a negitive edge D-Flip Flop with asynchronous active low preset and clear I have : module dff( preset, clear, clk, D, Q) input preset; input clear; input clk; input D; output Q; reg Q; always @ (negedge clk or negedge preset or negedge clear); if (preset); Q = 0; else (clear == 0); Q = D; endmodule I honestly just want to know if i'm doing this right or not, if im not correct,...
5.4 2um
4-34. Design a negative-edge-triggered flip-flop. The flip flop has three inputs; these are Data, Clock, and Enable. If, at the negative edge of the clock, the enable input equals to 0, then the state at Data input is stored in the flip-flop. If, at the negative edge of clock, Enable is in 1 state, then the current stored value in the flip-flop is held. Design the flip-flop using only SR latches, AND gates, and NOT gates.
4-34. Design...
Write a test bench to thoroughly test the Verilog module dff_fe_asyn_h. below is the module ddff_fe_asyn_h.code Simulate the circuit using ISim and analyze the resulting waveform. Take full screenshots of all Verilog source codes and the resulting simulation waveform to be included in the lab report. Include explanation of the waveform and how you can conclude that the D flip flop implemented in step 9 is correct in the lab report. Verilog Code for dff_fe_asyn_h is mentioned below:- //DFF module...
3. Answer the following questions about a data flip-flop (D-Flip Flop): a) (4 ps) Write the VHDL required to define a rising-edge triggered (RET) D-Flip Flop with additional clock enable (CEN) and reset inputs. Your reset may be synchronous or asynchronous. Assume any input, output, or signal variables that you require have already been declared in VHDL (you do not have to write the declarations for these) b) [I pal ls your reset syachronous or asynchronous for the D-Flip Flop...
