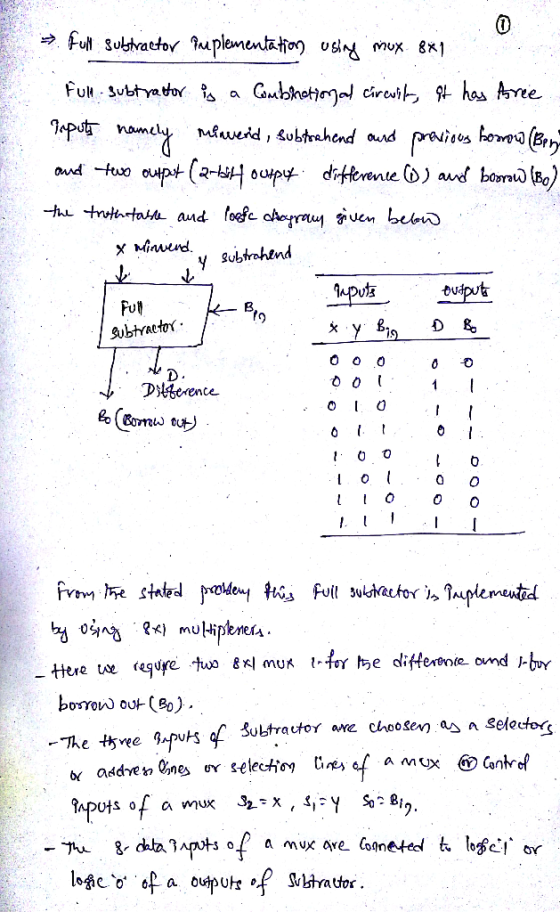

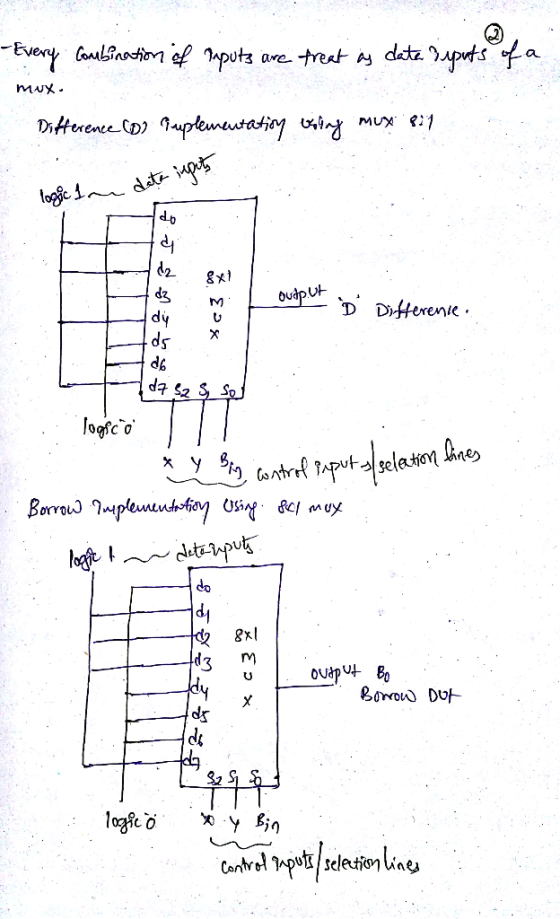

design and implement a full subtractor using two 8-to-1 MUXes. connect X,Y< and Bin to the control inputs of the MUXes and connect 1 or 0 to each data input.
Pleas answer as fast as possible and show all work
show all work please
