The alternating current through a solenoid is given by IL=(3.2A)sin(2π150t) and the rms voltage across the...
The alternating current through a solenoid is given by IL=(3.2A)sin(2π150t) and the rms voltage across the solenoid is 190 V.

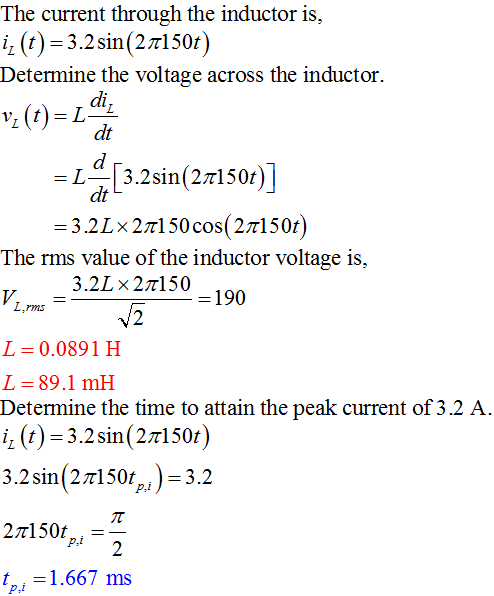

Determine the inductance of the solenoid.

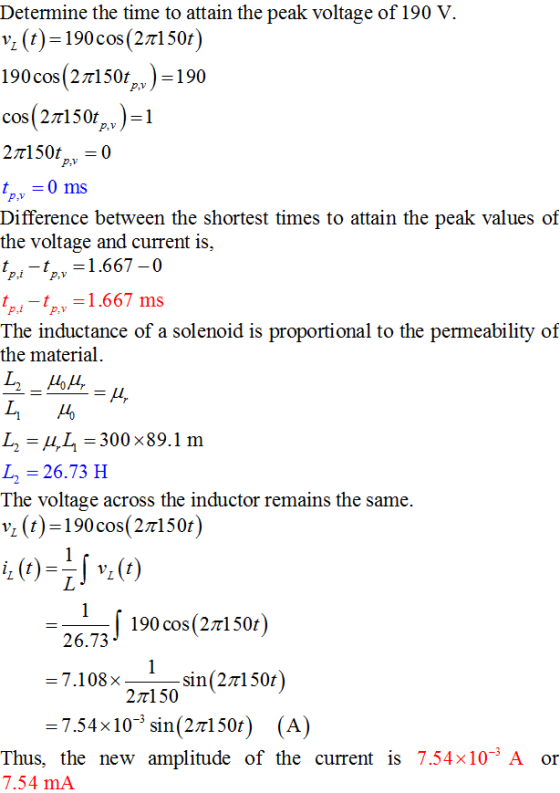

Determine the shortest time interval between the peak of the voltage across the solenoid and the peak of the current through the solenoid, assuming that the resistance of the solenoid can be ignored.
A nickel cylinder with a relative magnetic permeability of 300 is inserted into the solenoid. Determine the new amplitude of the current through the solenoid, assuming that the solenoid remains connected to the same power supply.
