A force of 1 KN is applied on a disk that has a radius of 50...

Question

Question

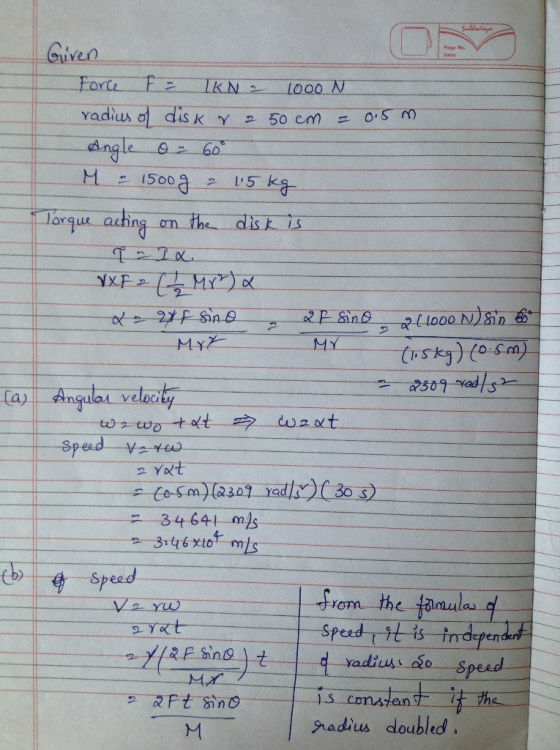

A force of 1 KN is applied on a disk that has a radius of 50 cm at a 60 degree angle. The mass of the disk is 1500 grams.

a.) What is the speed after 30 seconds?

b.) What is the speed if the radius is doubled?

science physics

Answer 1

Answer #1

Answer 2
