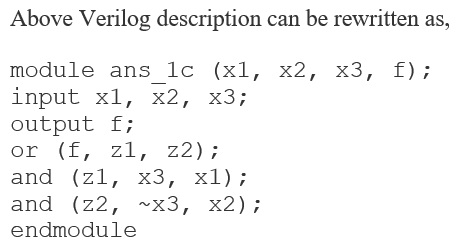

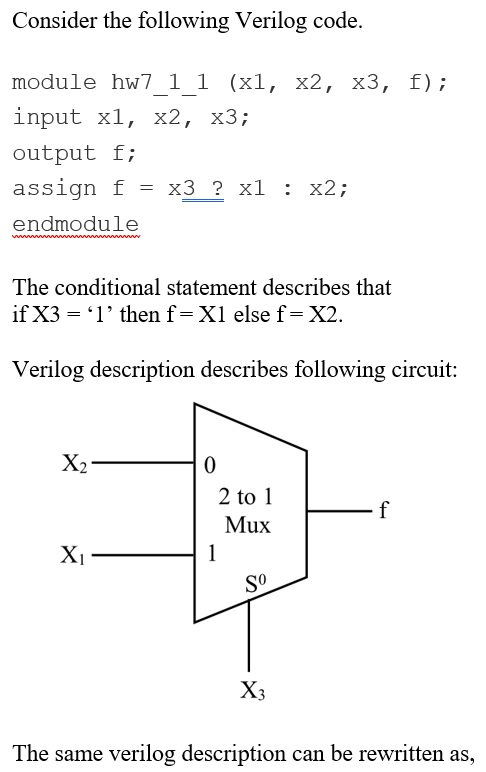

HW7.1.1) Which of the Verilog structural descriptions is equivalent to the following Verilog behavioral description?
module hw7_1_1 (x1, x2, x3, f);
input x1, x2, x3;
output f;
assign f = x3 ? x1 : x2;
endmodule
HW7.1.1) Which of the Verilog structural descriptions is equivalent to the following Verilog behavioral description? module...
HW7.2.3) Which of the Verilog structural descriptions is equivalent to the following Verilog behavioral description? module hw7_2_3 (x1, x2, x3, f); input x1, x2, x3; output f; always @ (x1, x2, x3) if (x1 == 0) f = x2 & ~x3; else f = ~x2 & x3; endmodule
why its 4-to-1 mux behavioral?
What does the logic circuit represented by the following Verilog module do, and what Verilog description style does it use? // My Verilog module #1 module mymodl ( x, d, q) input[1:0] x;input[3:0] d;output q; reg q; wire [1:0] x; wire [3:0] d; always ( x or d) begin case ( x ) 1 : q=d[1]; 2 : g=d[2]; 3 q d[3]; endcase end endmodule
7. Which of the following Verilog code segments will generate errors when compiled? A. module demo output reg F, input a): ire b; reg c assign b-c; initial begin end endmodule module demo5 output reg F, input reg a); ire b reg c assign bC; initial begin end C. module demooutput reg F, input wire a ire b reg c assign b c; initial begin F c& b; end D. O both A) and C) E. O none will generate...
3. From the slides and the reference materials, we see that there are two methods for implementing logic in Verilog HDL. The circuit can be described using "Structural Verilog or "Behavioral Verilog." In Structural Verilog the structure of the circuit is defined using Boolean algebra statements. In Behavioral Verilog the circuit is defined by its behavior. Below are examples of a 2x1 multiplexer implemented using structural and behavioral Verilog. STRUCTRAL 2x1 MULTIPLEXER CODE: // Example 5a: 2-to-1 MUX using logic...
(a) write a Verilog description of the circuit shown below
module Circuit (F, A, A_bar, B, B_bar, C, D_bar); ………..
Endmodule (b) Write a Verilog description of the circuit specified
by the following Boolean function:
Z = (A + B’)C’(C + D)
AB AB CD
Q3. Draw the circuit represented by this Verilog code Module system(A,B.C.Y) Input A,B.C: Output Y Assign Y (C1)?A: B Endmodule
Write Verilog modules: a 3x8 decoder and a 8x1 multiplexor. The multiplexor “includes” the decoder module as part of it. Use arrays as much as possible. EXAMPLE: module DecoderMod(s, o); // module definition input s; output [0:1] o; not(o[0], s); assign o[1] = s; endmodule module MuxMod(s, d, o); input s; input [0:1] d; output o; wire [0:1] s_decoded, and_out; DecoderMod my_decoder(s, s_decoded); // create instance and(and_out[0], d[0], s_decoded[0]); and(and_out[1], d[1], s_decoded[1]); or(o, and_out[0], and_out[1]); endmodule
Write a behavioral Verilog module for a 4-bit Johnson counter that has 8 states. The counter loads the "0000" state if reset is low. The counter should start and end with this state. Write a testbench to verify the correctness of the 4-bit Johnson counter. The testbenclh should have a clock with a period of 20ns and a reset signal. The testbench should store the 4-bit binary outputs of the counter in a file, which will be used to provide...
Write a test bench to thoroughly test the Verilog module dff_fe_asyn_h. below is the module ddff_fe_asyn_h.code Simulate the circuit using ISim and analyze the resulting waveform. Verilog Code for dff_fe_asyn_h is mentioned below:- //DFF module with asynchronous active high reset with negative edge trigger with clock module dff_fe_asyn_h ( input clock, // Clock Input input reset, // Reset Input input data_in, // Input Data output reg data_out // Output Data ); always @ (negedge clock or posedge reset) // triggers...
Write a test bench to thoroughly test the Verilog module dff_fe_asyn_h. below is the module ddff_fe_asyn_h.code Simulate the circuit using ISim and analyze the resulting waveform. Take full screenshots of all Verilog source codes and the resulting simulation waveform to be included in the lab report. Include explanation of the waveform and how you can conclude that the D flip flop implemented in step 9 is correct in the lab report. Verilog Code for dff_fe_asyn_h is mentioned below:- //DFF module...
