A circuit consists of three resistors in parallel. The values of the resistors are 250 Ω....

A circuit consists of three resistors in parallel. The values of the resistors are 250 Ω. 65.0 Ω and 170.0 Ω. The total current in the circuit is 0.880 A. (a) What is the battery voltage? (b) What is the current through each resistor? (c) What is the power used by each resistor? (Please include diagram)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

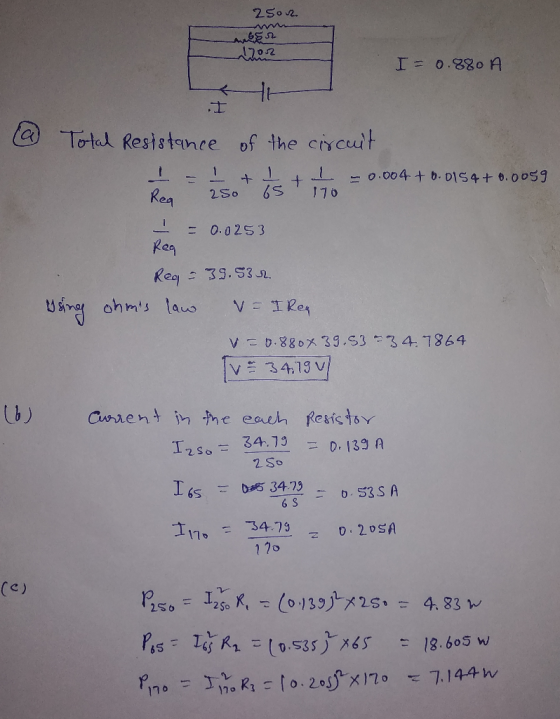

We know that parallel resistance has equal potential .

0 0
Add a comment
Know the answer?
Add Answer to:
A circuit consists of three resistors in parallel. The values of the resistors are 250 Ω....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A circuit consists of a battery connected to three resistors (60 Ω , 30 Ω ,...

    A circuit consists of a battery connected to three resistors (60 Ω , 30 Ω , and 160 Ω ) in parallel. The total current through the resistors is 2.9 A 1.Find the emf of the battery. 2. Find the current through 60 −Ω resistor. 3. Find the current through 30 −Ω resistor. 4. Find the current through 160 −Ω resistor.

  • 9) Two resistors (3 Ω and 12 Ω) are wired together in parallel with a battery....

    9) Two resistors (3 Ω and 12 Ω) are wired together in parallel with a battery. A current of 0.5 A passes through the 12 Ω resistor. A) What is the total equivalent resistance? B) What is the voltage of the power supply used to operate the circuit? C) How much current passes through the 3 Ω resistor?

  • Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

    Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...

  • Three resistors, 15.0 Ω, 23.0 Ω and R are connected across a 6.00 V battery. The...

    Three resistors, 15.0 Ω, 23.0 Ω and R are connected across a 6.00 V battery. The current in the circuit is 0.100 A. (a) What is the resistance of the unknown resistor? (b) What is the voltage across each resistor? (c) What is the power used by each resistor?

  • Three resistors with values of 7.0 Ω , 14 Ω , and 20 Ω are connected...

    Three resistors with values of 7.0 Ω , 14 Ω , and 20 Ω are connected in series in a circuit with a 9.0 V battery. A) What is the total equivalent resistance? B) What is the current in each resistor? C) At what rate is energy delivered to the 20 Ω resistor?

  • Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2...

    Suppose the three resistors in the circuit have the values R1 = 160 Ω , R2 = 260 Ω , and R3 = 410 Ω , and that the emf of the battery is 18.0 V. Find the current that flows through each resistor.

  • 11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to...

    11. [4 pts] A circuit consists of two resistors in parallel, Ri and R2, connected to a battery with emf of 12 V. The conventional current passing through the battery is 5 A. The conventional current through resistor R2 is 2 A. You may assume the connecting wires and the battery have negligible resistance. a) What is the resistance R1? B.4.0 Ω C. 2.4 Ω Answer D. 3.6 Ω E. 3.0 Ω A.6.0 Ω How much power is delivered by...

  • - A circuit consists of a 12.0-V battery connected to three resistors (44 Ω , 16...

    - A circuit consists of a 12.0-V battery connected to three resistors (44 Ω , 16 Ω and 140 Ω ) in series. - Find the current that flows through the battery in mA. - Find the potential difference across the 44 Ω resistor in V. - Find the potential difference across the 16 Ω resistor in V. - Find the potential difference across the 140 Ω resistor in V.

  • In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are...

    In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are unknown and one of the resistors is 6 Ohms. In circuit 2, the resistor whose resistance is known (6 Ohms is removed from the circuit and the other three resistors are connected purely in parallel to the same battery. The power output of the battery in circuit 1 is 5.1 Watts more than the power output of the battery in circuit 2. What is...

  • A circuit consists of a power supply and two resistors R1 and R2 connected in parallel....

    A circuit consists of a power supply and two resistors R1 and R2 connected in parallel. An ammeter is placed to measure the current through resistor R1. The ammeter reads I1 = 8.9 mA, and the values of the resistors are R1 = 7.7 kOhm and R2 = 820 Ohm.  What is the value of voltage across R2?
