We are building a road, and at one place we need to make a turn with...

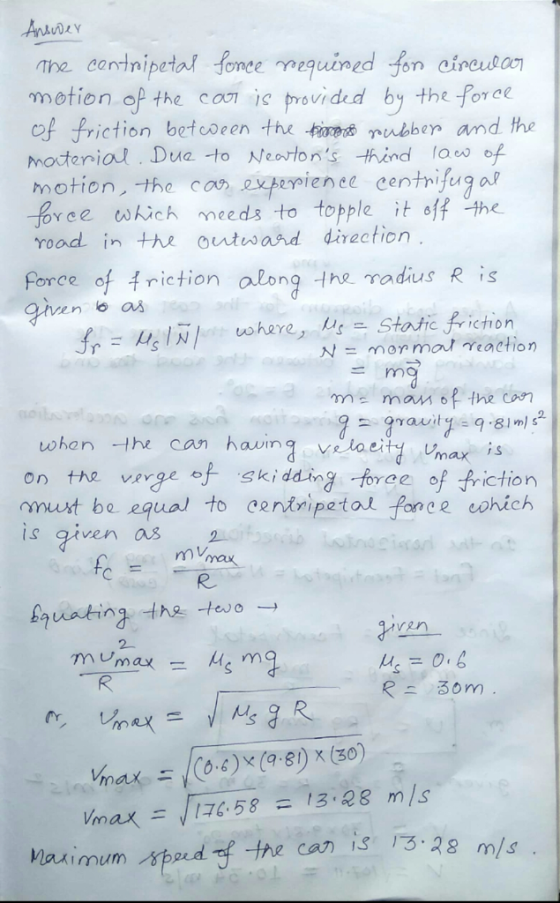

We are building a road, and at one place we need to make a turn with a radius of 30m. The coefficient of static friction between rubber and the material we are using is 0.6. Assuming that the road is flat through the turn, what is the maximum speed a car could have and safely navigate the turn without sliding off the road? Instead of keeping the road flat, let's bank the turn a little bit, giving the road an angle of 20∘ above the horizontal. With the banked turn, what is the maximum speed a car could have and still make it around the turn without sliding?
Homework Answers
Add Answer to:
We are building a road, and at one place we need to make a turn
with...
We are building a road, and at one place we need to make a turn with...
We are building a road, and at one place we need to make a turn with a radius of 30m. The coefficient of static friction between rubber and the material we are using is 0.6. Instead of keeping the road flat, let's bank the turn a little bit, giving the road an angle of 20∘ above the horizontal. With the banked turn, what is the maximum speed a car could have and still make it around the turn without sliding?
Consider again the problem of a car traveling along a banked turn. Sometimes roads have a...
Consider again the problem of a car traveling along a banked turn. Sometimes roads have a "reversed" banking angle. That is, the road is tilted "away" from the center of curvature of the road. If the coefficient of static friction between the tires and the road is μs = 0.4, the radius of curvature is 25 m, and the banking angle is 14°, what is the maximum speed at which a car can safely navigate such a turn?
On a wet road, the coefficient of static friction between a car's tires and the flat...
On a wet road, the coefficient of static friction between a car's tires and the flat road is 0.24. What is the maximum speed a car can safely navigate a turn with a 50.0 m radius of curvature?
A car at speed v takes a turn of radius R on a banked road of...
A car at speed v takes a turn of radius R on a banked road of
angle
. What is the angle that the road must be banked ti bit require
the driver to turn the steering wheel? For circular motion, the
centripetal acceleration is
Now the road has a coefficient of friction of
with
. What is the maximum velocity that the driver can take the
turn?
We were unable to transcribe this imageWe were unable to transcribe this...
1) A road is banked at 10 degrees at a circular turn of radius 100m. a....
1) A road is banked at 10 degrees at a circular turn of radius 100m. a. What is the exact speed required such that the car stays on the road when it is icy and without friction? b. What minimum coefficeient of static friction is needed if the car travels at exactly one half the speed you found in a.
A particular unbanked turn in the road is shaped like a circle with a radius of...
A particular unbanked turn in the road is shaped like a circle with a radius of 30 meters. A car with a mass of 1500 kg can safely go around this turn at a maximum speed of 17 m/s. What is the coefficient of static friction between the car's tires and the road?
Spy Agent 001 is chasing the bad guys. Suddenly, 001 needs to turn his car (m...
Spy Agent 001 is chasing the bad guys. Suddenly, 001 needs to turn his car (m = 1000 kg) around, and completes a turn in the shape of a semi-circle (radius = 60 m) travelling at a constant speed of 27 m/s. a) If the static coefficient of friction between the tires and the pavement is 0.55, find the maximum force of friction before slipping occurs. b) Will the car be able to complete the turn without sliding? c) To...
gth of the Cirrl 1. A 1300 kg car moving on a flat, horizontal road negotiates...
gth of the Cirrl 1. A 1300 kg car moving on a flat, horizontal road negotiates a curve as shown in figure. If the radius of the curve is 40 m and the coefficient of static friction between the tires and dry pavement is 0.6, find the maximum speed the car can have and still make the turn successfully.
The radius of curvature of a highway exit is r = 95.5 m. The surface of...
The radius of curvature of a highway exit is r = 95.5 m. The
surface of the exit road is horizontal, not banked. (See
figure.)
If the static friction between the tires and the surface of the
road is ?s = 0.408, then what is the maximum speed at
which the car can exit the highway safely without sliding?
Top view Exit Back view
Two curves on a highway have the same radii. However, one is unbanked and the other...
Two curves on a highway have the same radii. However, one is
unbanked and the other is banked at an angle of degrees. A car can safely travel along the
unbanked curve at a maximum speed under conditions when the coefficient of
static friction between the tures and the road is . The banked curve is frictionless, and the
car can negotiate it at the same maximum speed . Find the coefficient of static friction
between the tires and the...
A car at speed v takes a turn of radius R on a banked road of
angle
. What is the angle that the road must be banked ti bit require
the driver to turn the steering wheel? For circular motion, the
centripetal acceleration is
Now the road has a coefficient of friction of
with
. What is the maximum velocity that the driver can take the
turn?
We were unable to transcribe this imageWe were unable to transcribe this...
gth of the Cirrl 1. A 1300 kg car moving on a flat, horizontal road negotiates a curve as shown in figure. If the radius of the curve is 40 m and the coefficient of static friction between the tires and dry pavement is 0.6, find the maximum speed the car can have and still make the turn successfully.
The radius of curvature of a highway exit is r = 95.5 m. The
surface of the exit road is horizontal, not banked. (See
figure.)
If the static friction between the tires and the surface of the
road is ?s = 0.408, then what is the maximum speed at
which the car can exit the highway safely without sliding?
Top view Exit Back view
