A group of employees of the HR department have been selected to be part of an...
A group of employees of the HR department have been selected to be part of an Adhoc committee with the purpose of carrying out a project that addresses the company's unwanted “turnover” problem. The project consists of the following steps:
| Activities | Prec | Time (days) |
|---|---|---|
| A | --- |
10 |
| B | A | 3 |
| C | A | 7 |
| D | C | 4 |
| E | B | 3 |
| F | --- | 8 |
| G | D | 5 |
| H | E | 4 |
| I | F,G | 5 |
| J | H,I | 8 |

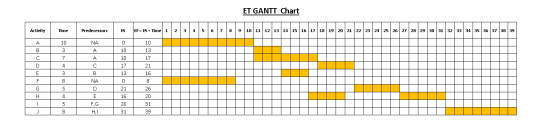

- Draw an ET Gantt Chart.

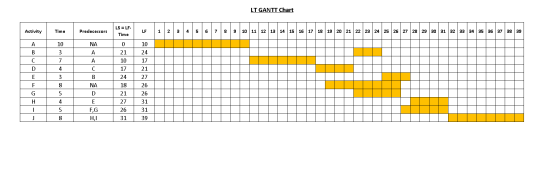

- Draw an LT Gantt Chart.

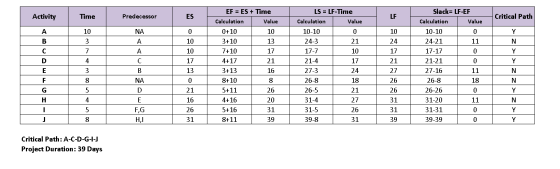

- Make table presenting the ES, EF, FS LS, LF and TF for all activities the identification of each stage.
- Determine the activities of the critical step and time. project completion estimate
- Assume that σ = 2 days, on what date the project would end with a risk of 5% or less of default.
