A rectangular loop (6 cm wide by 8 cm high) sits on the plane of the...

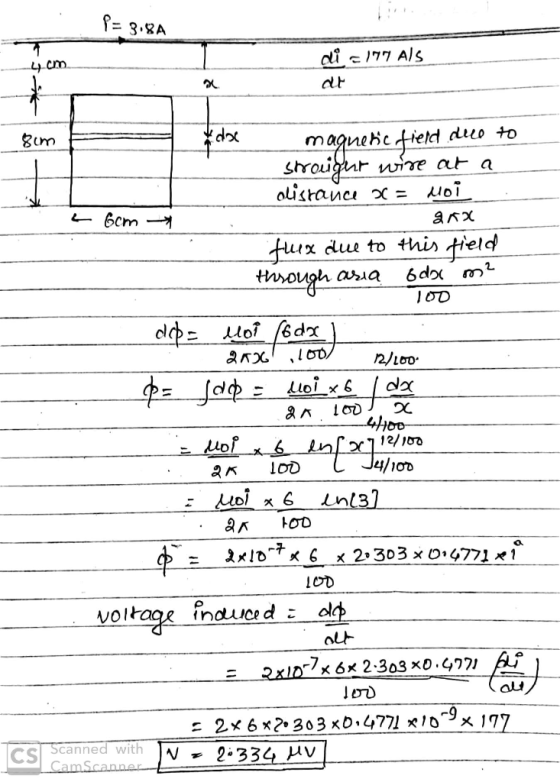

A rectangular loop (6 cm wide by 8 cm high) sits on the plane of the page. The top edge is 4 cm from a long straight wire that is in the plane of the loop. The current in the straight wire is 3.8A and increasing at a rate of 177 A/s. What is the voltage induced in the loop?
Homework Answers
Add Answer to:
A rectangular loop (6 cm wide by 8 cm high) sits on the plane of
the...
Shown in the following figure is a long, straight wire and a single-turn rectangular loop, both of which lie in the plane of the page.
Shown in the following figure is a long, straight wire and a single-turn rectangular loop, both of which lie in the plane of the page. The wire is parallel to the long sides of the loop and is 0.50 m away from the closer side. The time rate of change of the current in the wire is l=l0e-2t. What is the emf induced in the loop?
A very long wire and a square loop of wire lie in the plane of the...
A very long wire and a square loop of wire lie in the plane of the page as shown. Each side of the square is 15 cm in length, the resistance of the loop is 0.6 Ω, and the near side of the loop is 3 cm from the long wire. The current in the long wire is to the right and is increasing. At the moment, the current in the long wire is 6.5 A. The magnetic flux through...
4. A long straight wire carrying a current is in the plane of a circular loop...
4. A long straight wire carrying a current is in the plane of a circular loop of wire. The current is decreasing. Both the loop and the wire are held in place by external forces. The loop has a resistance of 24. -Long wire Conducting loop a) In what direction does the induced current in the loop flow? Mint: first find the external magnetic field at the loop due to the long wire, figure out if the flux through the...
Electricity and Magnetism: Will rate high for correct solutions! A long straight wire and rectangular thin...
Electricity and Magnetism: Will rate high
for correct solutions!
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.452 cm, b=3.6 cm and c=58 cm. The total resistance of the wire loop R=1.35 12. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.72 A and the...
A rectangular loop of wire that is 58 cm wide and 12 cm long is placed...
A rectangular loop of wire that is 58 cm wide and 12 cm long is placed in a region where the magnetic field is B = 1.1 T. Suppose the wire loop lies in the x–y plane and that the magnetic field makes an angle of 70° with the z axis. Find the magnitude of the magnetic flux.
A long straight wire and rectangular thin wire loop shown in the figure below are in...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
A 1.70 cm × 1.70 cm square loop of wire with resistance 1.00×10−2 Ω has one...
A 1.70 cm × 1.70 cm square loop of wire with resistance 1.00×10−2 Ω has one edge parallel to a long straight wire. The near edge of the loop is 1.10 cm from the wire. The current in the wire is increasing at the rate of 120 A/s . What is the current in the loop? Answer is in μA units.
A rectangular loop of 270 turns is 31 cm wide and 16 cm high. What is...
A rectangular loop of 270 turns is 31 cm wide and 16 cm high. What is the current in this loop if the maximum torque in a field of 0.48 T is 22 N⋅m ? I=______________
rectangular loop with sides of length a= 1.10 cm and b= 2.80 cm is placed near...
rectangular loop with sides of
length a= 1.10 cm and b= 2.80 cm is placed near a wire that carries
a current that varies as a function of time: it=2.01 +
1.22t2 where the current is in Amperes and the time is
in seconds. The distance from the straight wire to the closest side
of the loop is d= 0.270 cm.
What is the magnetic flux through the loop at time t= 1.40
seconds? (Define positive flux into the page.)...
A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure.
A long straight wire is in the same plane as a rectangular, conducting loop. The wire carries a constant current I as shown in the figure. a) If the wire is suddenly moved toward the loop, in which direction will the induced current be? b) If the current in the wire is suddenly increased, in which direction will the induced current be? EXPLAIN your answers!
A very long wire and a square loop of wire lie in the plane of the page as shown. Each side of the square is 15 cm in length, the resistance of the loop is 0.6 Ω, and the near side of the loop is 3 cm from the long wire. The current in the long wire is to the right and is increasing. At the moment, the current in the long wire is 6.5 A. The magnetic flux through...
4. A long straight wire carrying a current is in the plane of a circular loop of wire. The current is decreasing. Both the loop and the wire are held in place by external forces. The loop has a resistance of 24. -Long wire Conducting loop a) In what direction does the induced current in the loop flow? Mint: first find the external magnetic field at the loop due to the long wire, figure out if the flux through the...
Electricity and Magnetism: Will rate high
for correct solutions!
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.452 cm, b=3.6 cm and c=58 cm. The total resistance of the wire loop R=1.35 12. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.72 A and the...
A long straight wire and rectangular thin wire loop shown in the figure below are in the same plane with the geometrical dimensions specified as a=0.444 cm, b=2.75 cm and c=80.5 cm. The total resistance of the wire loop R=1.95 1. The long wire is driven by a triangle-wave generator resulting in the time-dependent current waveform I(t) also depicted in the figure. The magnitude of the waveform Io=13.24 A and the frequency f=56 Hz (temporal period of the waveform T=1/f)....
rectangular loop with sides of
length a= 1.10 cm and b= 2.80 cm is placed near a wire that carries
a current that varies as a function of time: it=2.01 +
1.22t2 where the current is in Amperes and the time is
in seconds. The distance from the straight wire to the closest side
of the loop is d= 0.270 cm.
What is the magnetic flux through the loop at time t= 1.40
seconds? (Define positive flux into the page.)...
