Problem 11 Create a 2 to 4 decoder and a 4 to 2 encoder. Attach your...

Problem 11

Create a 2 to 4 decoder and a 4 to 2 encoder. Attach your Verilog code for the module and a test bench to verify your modules. Include screenshots of your simulations.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

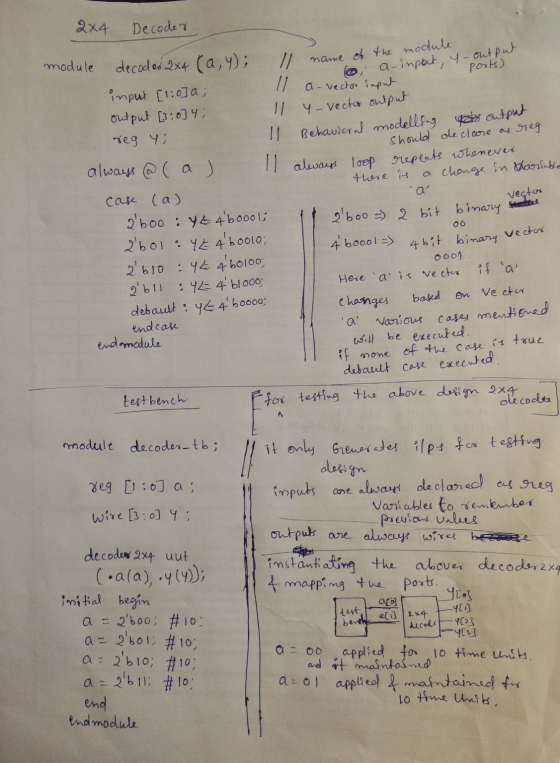

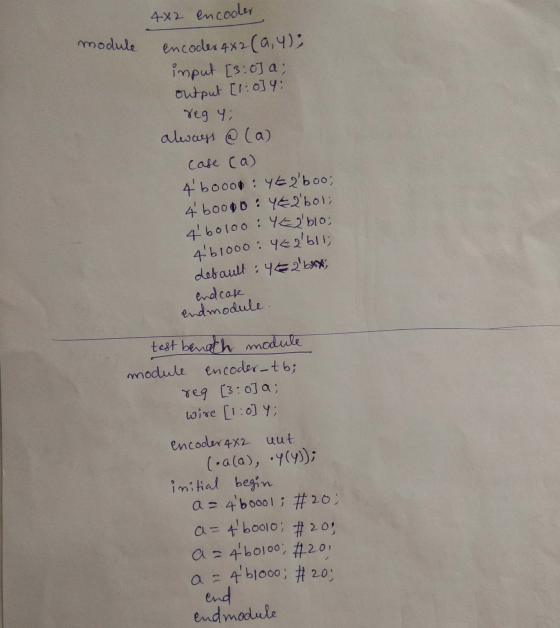

Right now i am not having simulation software so, i am not in a postion to attach simulation screen shots.

Add a comment
