Starting with two slits, separated by a distance "d," derive the key relation(s) associated with locating...

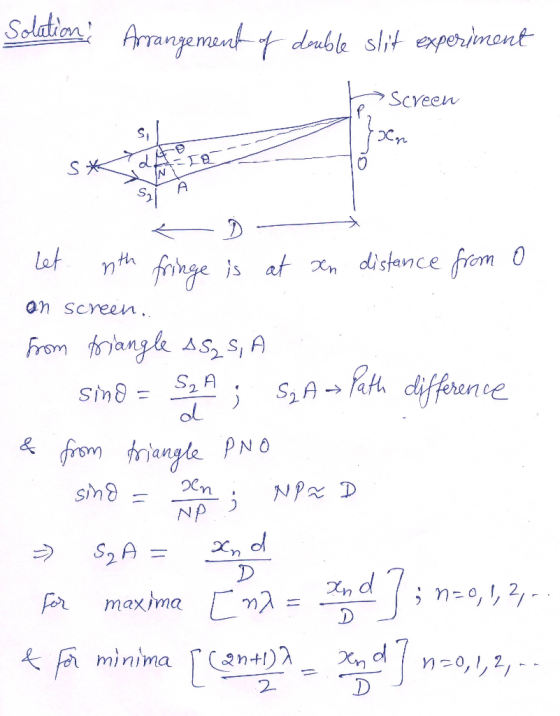

Starting with two slits, separated by a distance "d," derive the key relation(s) associated with locating interference patterns.
Homework Answers
Add Answer to:
Starting with two slits, separated by a distance "d," derive the
key relation(s) associated with locating...
Two narrow slits are separated by a distance d. Their interference pattern is to be observed...
Two narrow slits are separated by a distance d. Their interference pattern is to be observed on a screen a large distance L away. Calculate the spacing y of the maxima of the screen for light of wavelength 500 nm when L = 1 m and d = 1 cm. Would you expect to observe the interference of light on the screen for this situation? Explain. How close together should the slits be placed for the maxima to be separated...
Two slits separated by a distance of d = 0.175 mm are located at a distance...
Two slits separated by a distance of d = 0.175 mm are located at a distance of D = 2.01 m from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a monochromatic and coherent light source with a wavelength of λ = 604 nm. A wave from each slit propagates to the screen. The interference pattern shows a peak at the center of the screen (m=0) and then alternating minima...
Problem 9 Two slits separated by a distance of d = 0.110 mm are located at...
Problem 9 Two slits separated by a distance of d = 0.110 mm are located at a distance of D = 750. mm from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a coherent light source with a wavelength of A = 527 x 10" mm. The interference pattern shows a peak at the center of the screen (m 0) and then alternating minima and maxima. a) What is the...
Consider double slit experiment with two slits are separated by d=0,715 mm
Consider double slit experiment with two slits are separated by d=0.715 mm and each slit width is 0.00321 mm. Screen is placed L=1.28 m away from the slits. a) Derive an algebraic equation to find linear distance of interference bright fringe on the screen from central bright (central maxima) fringe? b) Consider interference pattern due to light of unknown wavelength and linear separation between 2 and 5" bright fringes is 3.05 mm. Find the wavelength of the light? c) Now consider double slit...
In a double-slit experiment the distance between slits is d = 4 mm and the distance...
In a double-slit experiment the distance between slits is d = 4 mm and the distance to the screen is 1.4 m. There are two interference patterns on the screen: one due to light with λ1=470 nm and another due light with λ2=610 nm. What is the separation between third order (m = 3) bright fringes of the two patterns?
7. In u Young's double slit experiment, the two slits are separated by 0.135 nim and...
7. In u Young's double slit experiment, the two slits are separated by 0.135 nim and the incident light includes two wavelengths 560 nm (groen) and 415 mm (blue). The overlapping interference patterns are observed on a screen 1.75 m away from the slits. What is the distance between the first green bright spot and the first blue bright spot? Show all work for full credit (7)
In a double-slit experiment the distance between slits is 5.8 mm and the slits are 2.0...
In a double-slit experiment the distance between slits is 5.8 mm and the slits are 2.0 m from the screen. Two interference patterns can be seen on the screen: one due to light with wavelength 490 nm, and the other due to light with wavelength 565 nm. What is the separation on the screen between the third-order (m = 3) bright fringes of the two interference patterns? ________________m
Two slit interference: Two slits separated by 4 μm are illuminated by light of wavelength λ=500...
Two slit interference: Two slits separated by 4 μm are illuminated by light of wavelength λ=500 nm incident normally on the slit. (a) Draw a diagram showing the waves leaving the slit that will eventually converge on a distant point at the second (m=2) interference maximum above the central maximum. (b) Calculate the angle of light at which this maximum is formed. (c) What is the distance between interference maxima on a screen placed 2 m from the slits? d)...
4. Light of wavelength 580nm is incident on 2 identical parallel slits separated by distance (between...
4. Light of wavelength 580nm is incident on 2 identical parallel slits separated by distance (between centers) of 0.53 mm. (i) If the slits are narrow (infinitely thin), what are the angular positions (0) of the first order (m- 1) and second order (m-2), "two slit interference" maxima? (ii) If the slits are no longer considered infinitely thin, but have width 0.32 mm, what is the intensity at each of the angular positions obtained in part (i)? You should express...
A beam of electrons is incident on two slits separated by a distance of 2.0×10-6 m....
A beam of electrons is incident on two slits separated by a distance of 2.0×10-6 m. The first-order bright fringes appear on a distant screen at an angle of 0.015 degrees fronm the central interference maximum Calculate the wavelength. Submit Answ Tries 073 What is the momentum of the electrons? Submit Answer Tries 0/3 Calculate the kinetic energy of the electrons. Submit Answer Tries 0/3
Problem 9 Two slits separated by a distance of d = 0.110 mm are located at a distance of D = 750. mm from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a coherent light source with a wavelength of A = 527 x 10" mm. The interference pattern shows a peak at the center of the screen (m 0) and then alternating minima and maxima. a) What is the...
7. In u Young's double slit experiment, the two slits are separated by 0.135 nim and the incident light includes two wavelengths 560 nm (groen) and 415 mm (blue). The overlapping interference patterns are observed on a screen 1.75 m away from the slits. What is the distance between the first green bright spot and the first blue bright spot? Show all work for full credit (7)
4. Light of wavelength 580nm is incident on 2 identical parallel slits separated by distance (between centers) of 0.53 mm. (i) If the slits are narrow (infinitely thin), what are the angular positions (0) of the first order (m- 1) and second order (m-2), "two slit interference" maxima? (ii) If the slits are no longer considered infinitely thin, but have width 0.32 mm, what is the intensity at each of the angular positions obtained in part (i)? You should express...
A beam of electrons is incident on two slits separated by a distance of 2.0×10-6 m. The first-order bright fringes appear on a distant screen at an angle of 0.015 degrees fronm the central interference maximum Calculate the wavelength. Submit Answ Tries 073 What is the momentum of the electrons? Submit Answer Tries 0/3 Calculate the kinetic energy of the electrons. Submit Answer Tries 0/3
