Question

Linkage Mechanisms


Determine the output motion of at least two linkage mechanisms for given input parameters.

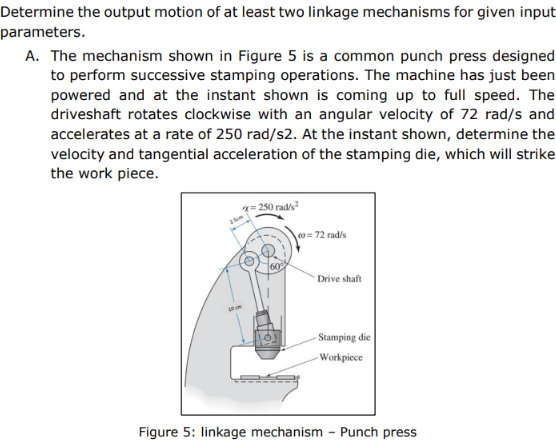

The mechanism shown in figure 5 is a common punch press designed to perform successive stamping operations.

0 0
Add a comment Improve this question Transcribed image text
Request Professional Answer

Request Answer!

We need at least 10 more requests to produce the answer.

0 / 10 have requested this problem solution

The more requests, the faster the answer.

Request! (Login Required)


All students who have requested the answer will be notified once they are available.
Know the answer?
Add Answer to:
Linkage Mechanisms
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
  • The mechanism shown in the figure below is a common punch press designed to perform successive...

    The mechanism shown in the figure below is a common punch press designed to perform successive stamping operations. The machine has just been powered and at instant shown is coming up to full speed. The drive shaft rotates clockwise with an angular velocity of 72 rad/s and accelerates at a rate of 250 rad/s. At the instant shown: 2. . Label the moving links/parts of the mechanism and write the type of motion for each link. . Determine the velocity...

  • 1) For the two mechanisms below identify the links and the oints. Determine the number of...

    1) For the two mechanisms below identify the links and the oints. Determine the number of degrees of freedom of each mechanism and explain if their motion is determinate for the inputs shown. Assume both slip and no slip between the cam and the roller. Load Hydraulic cylinder (input) roller Fork input

  • 2. (50 points) The link lengths of a linkage, shown in Figure 2 (not to scale), are L- 5" (ground...

    Kinematics please answer asap with clear work 2. (50 points) The link lengths of a linkage, shown in Figure 2 (not to scale), are L- 5" (ground), and 2-1" (input), L3 3.5" (coupler), L-3" (output or follower), respectively. The location of the coupler point P is given as RPA-4", and δ,-20° When the input link is at 6-55°, we have a-31.251° and θ4-1 18.561° for the open configuration. (a) Find the corresponding transmission angle at this configuration and the corresponding...

  • Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram...

    Q3. 1 Figure Q3 For the four bar linkage shown in Figure Q3, assume the diagram is drawn to scale and that crank link 2 has a length of 0.2m and an angular velocity of 20rad/s clockwise driven by an input torque of 5Nm. a) Find the positions with respect to the crank origin at A of the instant centre of velocity between the coupler link 3 and the ground link 1 and between the crank link 2 and the...

  • xy on point O2 The oil field pump in figure below is designed as pinjointed fourbar...

    xy on point O2 The oil field pump in figure below is designed as pinjointed fourbar linkage. The output link 4 is oscillating when the input link 2 is rotating about Os. The motion of link 4 lead the motion of the cables attached at points P1 and P2 and entering in the oil well PRECTORECTIVE Find the angular velocities of links 3 and 4 and the linear velocities of points AB and Pl in the XY coordinate system for...

  • 4) Determine the mobility of each planar linkage shown below, specify the number of joints and...

    4) Determine the mobility of each planar linkage shown below, specify the number of joints and members. 5) Determine the mobility of each of the planar linkages shown below. Specify the number of links and members. 6) Determine the mobility associated with the mechanism below. The round part rolls without slipping on the pieces in contact with it 7) If position information is available for all points in the planar linkage shown below, can all the velocities be determined uniquely...

  • [MATLAB Coding] A four-bar linkage system is shown above. The first link, a, is an input link (crank) of length 1. The second link, b, is a coupler link of length 2. The third link, c, is an output l...

    [MATLAB Coding] A four-bar linkage system is shown above. The first link, a, is an input link (crank) of length 1. The second link, b, is a coupler link of length 2. The third link, c, is an output link of length 4. The forth link, d, is the fixed link (ground) of length 5. All lengths are provided in metres. Please answer the whole question in MATLAB coding. 4 A four-bar linkage system is shown above. The first link,...

  • plz solve the last two parts c and d Q3. The four bar linkage mechanism as...

    plz solve the last two parts c and d Q3. The four bar linkage mechanism as shown in Figure 3 has two hydraulic cylinders controlling the motion of the connecting rods A and C so that they can only move in the vertical direction. At this instance, the distance y is 150 mm, A has an upwards velocity of 4 m/s and C has a downwards velocity of 3 m/s. Using a carefully drawn scaled velocity and acceleration diagram, (scale:...

  • Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed...

    Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed to close the doors while reducing the slamming force to a minimum. Figure 1 Figure 1 depicts one such mechanism while Figure 2 provides a schematic description. The spring is mounted in order to push the door back to close once it is opened. The role of the hydraulic dashpot is to provide a viscous force that will prevent the door from slamming against...

  • Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed...

    Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed to close the doors while reducing the slamming force to a minimum. Figure 1 Figure 1 depicts one such mechanism while Figure 2 provides a schematic description. The spring is mounted in order to push the door back to close once it is opened. The role of the hydraulic dashpot is to provide a viscous force that will prevent the door from slamming against...
