[Q9-Home] Someone argues that a resistor R=100 Ω run by 5 V DC heats up faster...

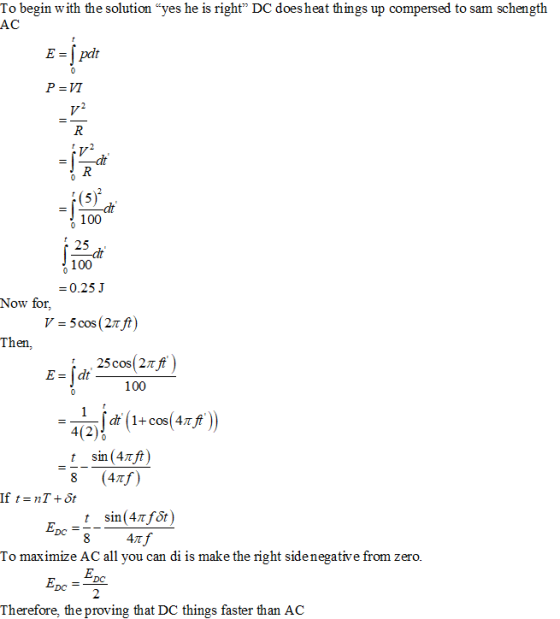

[Q9-Home] Someone argues that a resistor R=100 Ω run by 5 V DC heats up faster than the same resistor run by 5 V AC (the 5 V are measured as the maximum voltage of the sine wave). Is this person right or wrong? Explain.
