A plasmid that is 3931 base pairs (bp) is digested with two restriction enzymes Nae I...
A plasmid that is 3931 base pairs (bp) is digested with two restriction enzymes Nae I and Nar I. The Nae I digestion produces two fragments. One is 3158 (bp) and the second is 773 bp. The NarI digestion produces two fragments. One is 3181 bp and the second is 750 bp. When the plasmid is digested with both enzymes four fragments are produced. They are 2656 bp, 525 bp, 502 bp, and 248 bp.

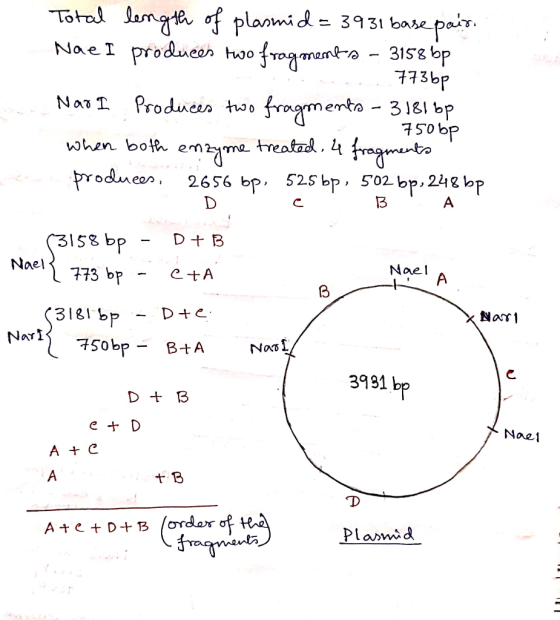

Draw a circular map of the plasmid indicating where the restriction sites are and the sizes of the fragments that they produce?
Homework Answers
Add Answer to:
A plasmid that is 3931 base pairs (bp) is digested with two
restriction enzymes Nae I...
please help me with these questions Lab 8 Extension Activity: Plasmid Mapping and Restriction Enzymes Mapping...
please help me with these questions
Lab 8 Extension Activity: Plasmid Mapping and Restriction Enzymes Mapping the Plasmid The first step in mapping a plasmid is to determine how many times a restriction site is found on that plasmid. Examine the results for plasmid 55 as an example. The data given in the following table are for the double digest using EcoRI and Pstl. Also, giving are the data for single digests by the individual enzymes. The numbers in the...
A linear DNA molecule that is 3250 bp long is digested with restriction enzyme A alone,...
A linear DNA molecule that is 3250 bp long is digested with restriction enzyme A alone, restriction enzyme B alone, or a combination of enzymes A and B to produce the following fragment sizes. Construct a restriction map of the DNA fragment. How many times does enzyme A cut the linear DNA molecule? If you are unable to place both enzymes A and B on the map, show one possible arrangement of enzyme A cognition sites on the DNA molecule.
Now determine the sizes of the fragments generated after digesting the r-plasmid with each of the...
Now determine the sizes of the fragments generated after digesting the r-plasmid with each of the restriction enzymes or combination of restriction enzymes. r-plasmid digested with Pstl r-plasmid digested with EcoRI r-plasmid digested with both Pstl and EcoRI Question 8. (3 pts.) Use this information to determine the relative placement of these restriction sites in the r-plasmid, and then draw restriction site maps of the vector and the r-plasmid on the following circular chromosome templates. The map should show the...
1. A circular plasmid has two PmeI restriction sites. A PmeI restriction enzyme will cut this...
1. A circular plasmid has two PmeI restriction sites. A PmeI restriction enzyme will cut this plasmid into two fragments. A. True B. False 2.In general, restriction enzymes that recognize four nucleotides have higher probability to produce more DNA fragments than those enzymes that recognize six nucleotides. A. true B. false 3. Which of the following sequences are palindromes? A. 5' TGGCCA 3' B. 5' GAAAAG 3' C. 5' CGATGG 3' D. 5' GACGAC 3' 4. Below are the possible...
In your previous prac session you digested your POTC-A plasmid DNA with 3 enzyme mixes (AB...
In your previous prac session you digested your POTC-A plasmid DNA with 3 enzyme mixes (AB and C). One mix contained the restriction endonuclease Kpnl alone, another contained both del and Not and another contained Sphi and Nhe, but you don't know which was which yet. The sites where these enzymes cut POTC-A are indicated on the plasmid map at the top of the page. Calculate the sizes of the DNA fragments that you would expect to see on your...
10) I was asked to perform double digestion of a given plasmid (map below) with restriction...
10) I was asked to perform double digestion of a given plasmid (map below) with restriction enzymes EcoRI and HindITI so that I can perform ligation of gene of interest into another vector cut by same enzymes. While setting up digestion reaction I was talking to my friend and mistakenly added EcoRV instead of EcoRI. Genere Please draw bands on gel (hypothetical sizes) L UC C LEDNA Ladder UC = Uncut Plasmid C = Cut Plasmid TIITTIIIII 1000
Restriction Mapping Below is a restriction map for the plasmid PGEN101 (total length - 20 kb)....
Restriction Mapping Below is a restriction map for the plasmid PGEN101 (total length - 20 kb). Using this map as a guide, give the number of restriction fragments along with their associated lengths that would result from digesting PGEN101 with the restriction enzymes EcoRI, BamHII, anda combination of EcoRI + BamHI. BamHI BamHI BamHI / PGEN101 (20 kb) Mb EcoRI Digest Performed Size Emments Obtained EcoRI........ BamHI.. EcoRI + BamHI.... Two freshmen college students, interested in becoming gene jocks, performed...
Chromosomal and plasmid DNA can be cut into manageable pieces by restriction enzymes. Using agarose gel...
Chromosomal and plasmid DNA can be cut into manageable pieces by
restriction enzymes. Using agarose gel electrophoresis, the DNA
fragments can be separated on a gel, based on their lengths. In
order to see the fragments, a stain is typically added to the gel.
The size of each fragment can be determined by comparing each one
to a DNA molecular weight marker of known size.
Below is a map of pBR22 plasmid. The position and base pair
number of the...
A linear DNA molecule was digested with restriction enzyme EcoR I (E) and three fragments were...
A linear DNA molecule was digested with restriction enzyme EcoR I (E) and three fragments were produced of sizes 7.3 kb, 4.0 kb and 3.4 kb. The restriction enzyme BamH I (B) produced three fragments of sizes 7.9 kb, 4.8 kb and 2 kb. When the two enzymes EcoR I and BamH I were used together, five fragments were produced of sizes 6.5kb, 4kb, 2kb, 1.4kb, and 0.8kb. Which of the following is the correct restriction map on this molecule...
A 10 kb linear DNA molecule was digested with restriction enzyme EcoRI (E) and two fragments...
A 10 kb linear DNA molecule was digested with restriction enzyme EcoRI (E) and two fragments were produced of sizes 6 kb and 4 kb. The restriction enzyme HaeIII (H) also produced two fragments of sizes 9 kb and 1 kb. When the two enzymes HaeIII and EcoRI were used together, three fragments were produced of sizes 1 kb, 3 kb, and 6 kb. A 4 kb long cloned genomic probe from this region hybridized to the 3 kb and...
please help me with these questions
Lab 8 Extension Activity: Plasmid Mapping and Restriction Enzymes Mapping the Plasmid The first step in mapping a plasmid is to determine how many times a restriction site is found on that plasmid. Examine the results for plasmid 55 as an example. The data given in the following table are for the double digest using EcoRI and Pstl. Also, giving are the data for single digests by the individual enzymes. The numbers in the...
A linear DNA molecule that is 3250 bp long is digested with restriction enzyme A alone, restriction enzyme B alone, or a combination of enzymes A and B to produce the following fragment sizes. Construct a restriction map of the DNA fragment. How many times does enzyme A cut the linear DNA molecule? If you are unable to place both enzymes A and B on the map, show one possible arrangement of enzyme A cognition sites on the DNA molecule.
Now determine the sizes of the fragments generated after digesting the r-plasmid with each of the restriction enzymes or combination of restriction enzymes. r-plasmid digested with Pstl r-plasmid digested with EcoRI r-plasmid digested with both Pstl and EcoRI Question 8. (3 pts.) Use this information to determine the relative placement of these restriction sites in the r-plasmid, and then draw restriction site maps of the vector and the r-plasmid on the following circular chromosome templates. The map should show the...
In your previous prac session you digested your POTC-A plasmid DNA with 3 enzyme mixes (AB and C). One mix contained the restriction endonuclease Kpnl alone, another contained both del and Not and another contained Sphi and Nhe, but you don't know which was which yet. The sites where these enzymes cut POTC-A are indicated on the plasmid map at the top of the page. Calculate the sizes of the DNA fragments that you would expect to see on your...
10) I was asked to perform double digestion of a given plasmid (map below) with restriction enzymes EcoRI and HindITI so that I can perform ligation of gene of interest into another vector cut by same enzymes. While setting up digestion reaction I was talking to my friend and mistakenly added EcoRV instead of EcoRI. Genere Please draw bands on gel (hypothetical sizes) L UC C LEDNA Ladder UC = Uncut Plasmid C = Cut Plasmid TIITTIIIII 1000
Restriction Mapping Below is a restriction map for the plasmid PGEN101 (total length - 20 kb). Using this map as a guide, give the number of restriction fragments along with their associated lengths that would result from digesting PGEN101 with the restriction enzymes EcoRI, BamHII, anda combination of EcoRI + BamHI. BamHI BamHI BamHI / PGEN101 (20 kb) Mb EcoRI Digest Performed Size Emments Obtained EcoRI........ BamHI.. EcoRI + BamHI.... Two freshmen college students, interested in becoming gene jocks, performed...
Chromosomal and plasmid DNA can be cut into manageable pieces by
restriction enzymes. Using agarose gel electrophoresis, the DNA
fragments can be separated on a gel, based on their lengths. In
order to see the fragments, a stain is typically added to the gel.
The size of each fragment can be determined by comparing each one
to a DNA molecular weight marker of known size.
Below is a map of pBR22 plasmid. The position and base pair
number of the...
